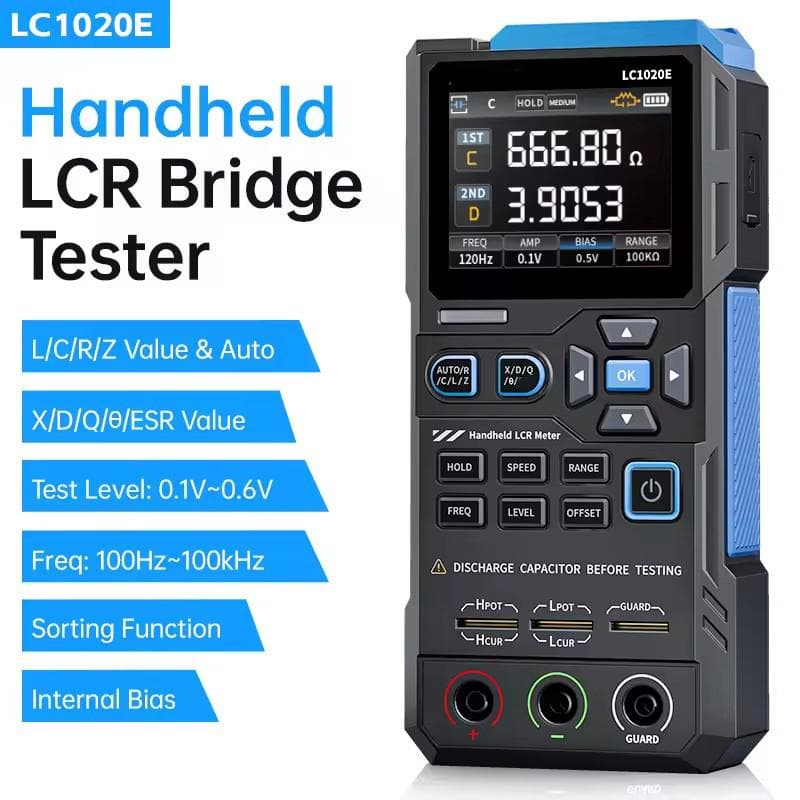

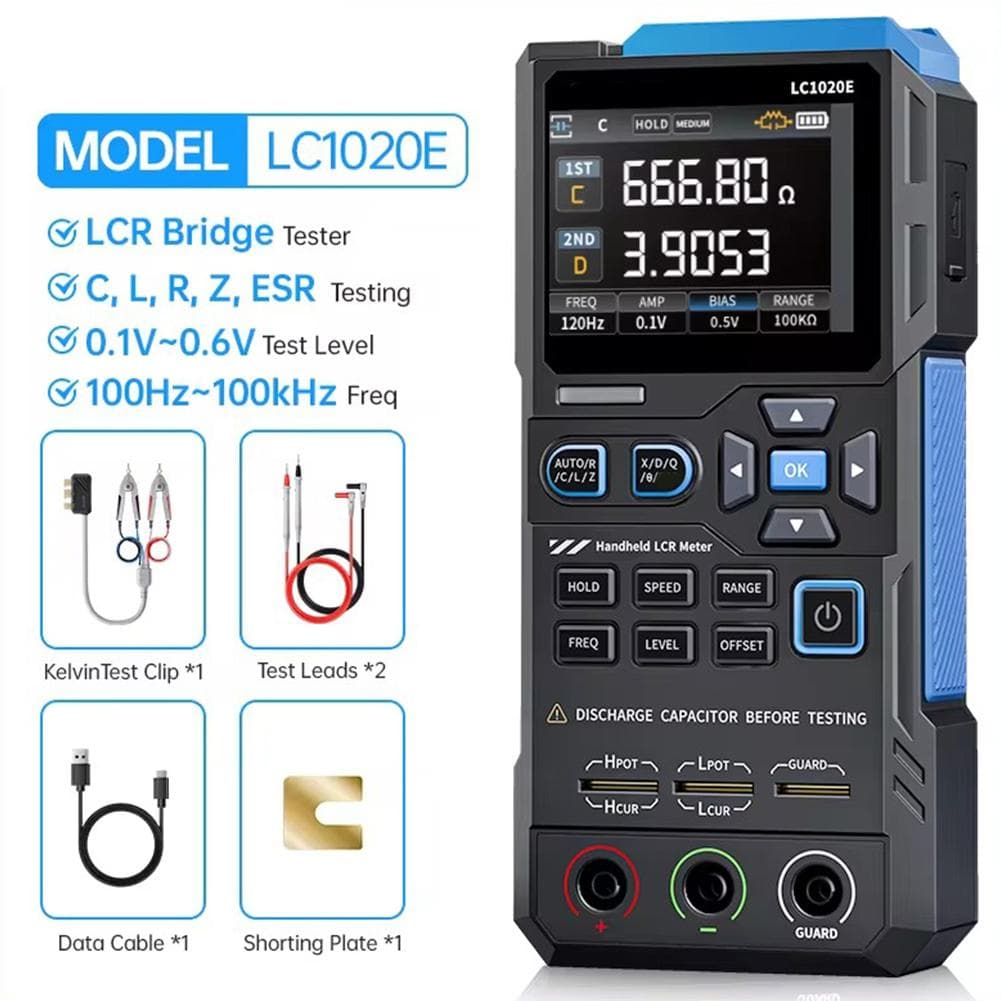

LC1020E High Precision Digital Bridge LCR Tester Resistance Capacitance Inductance Electronic Component Measurement

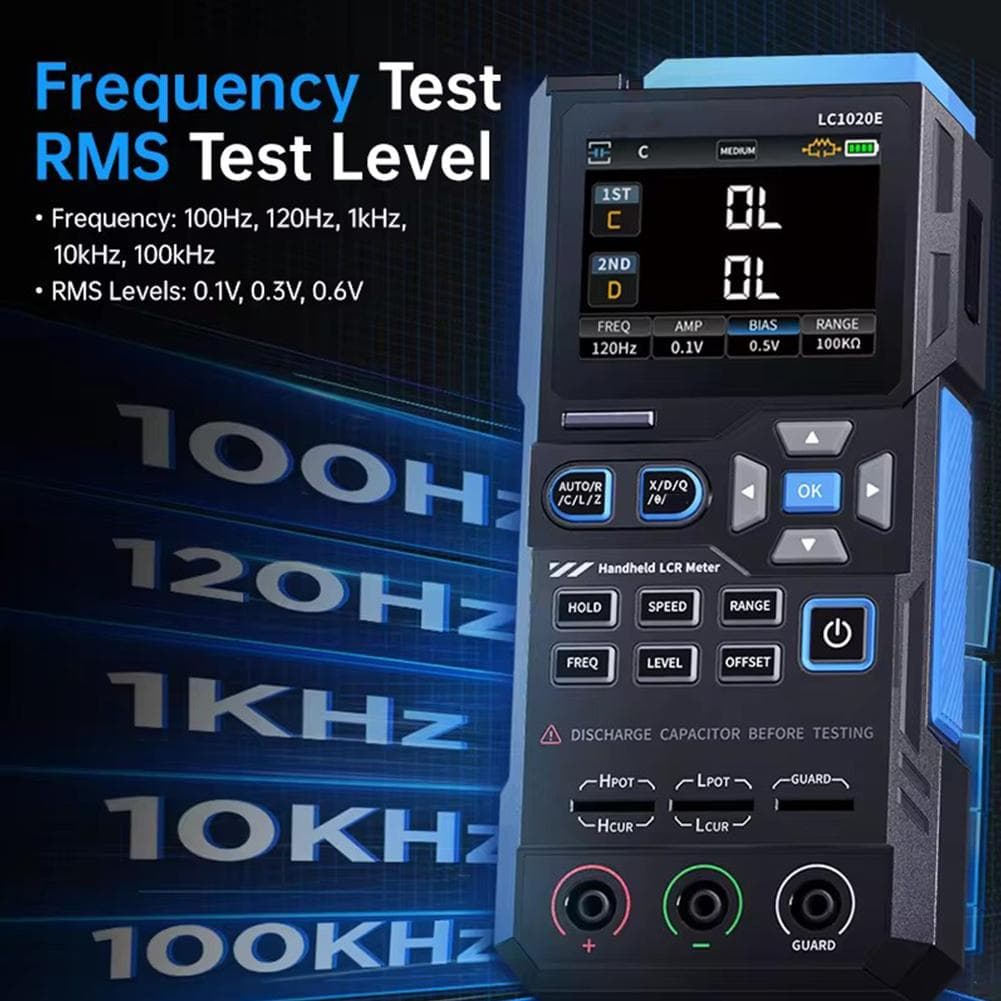

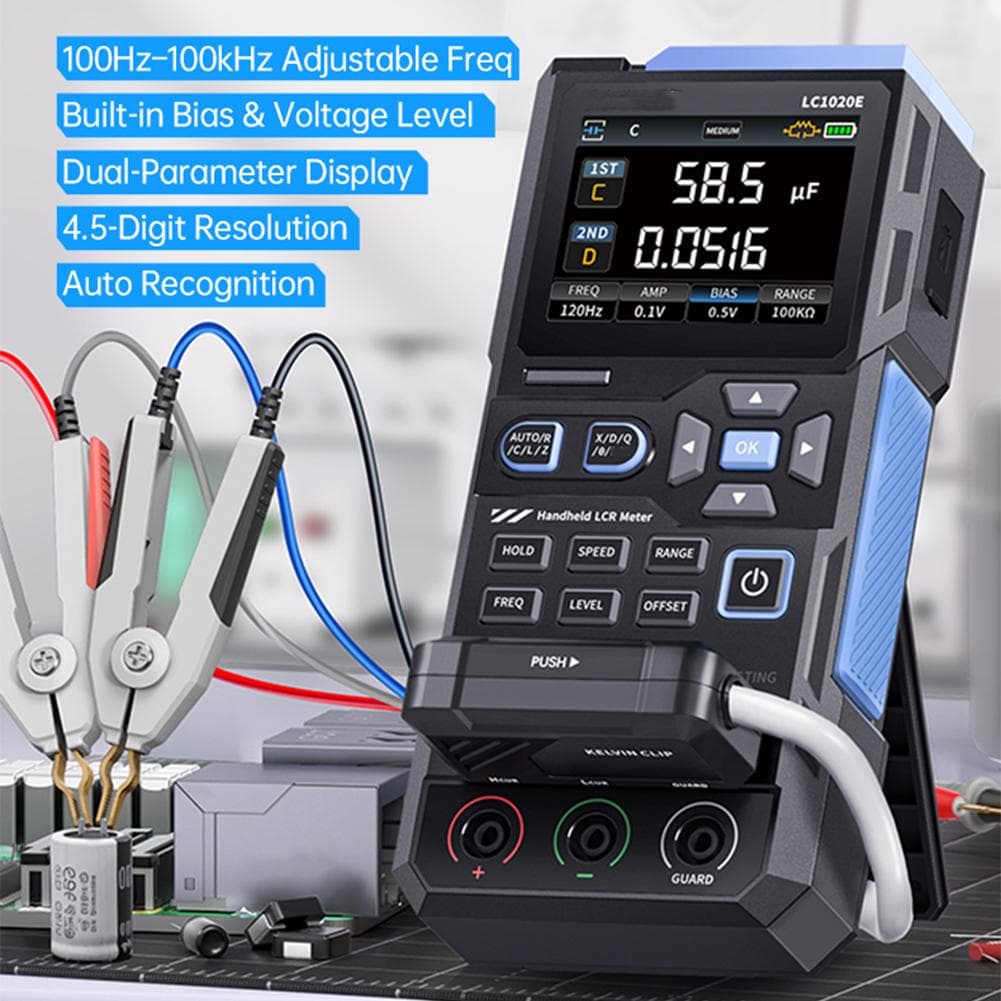

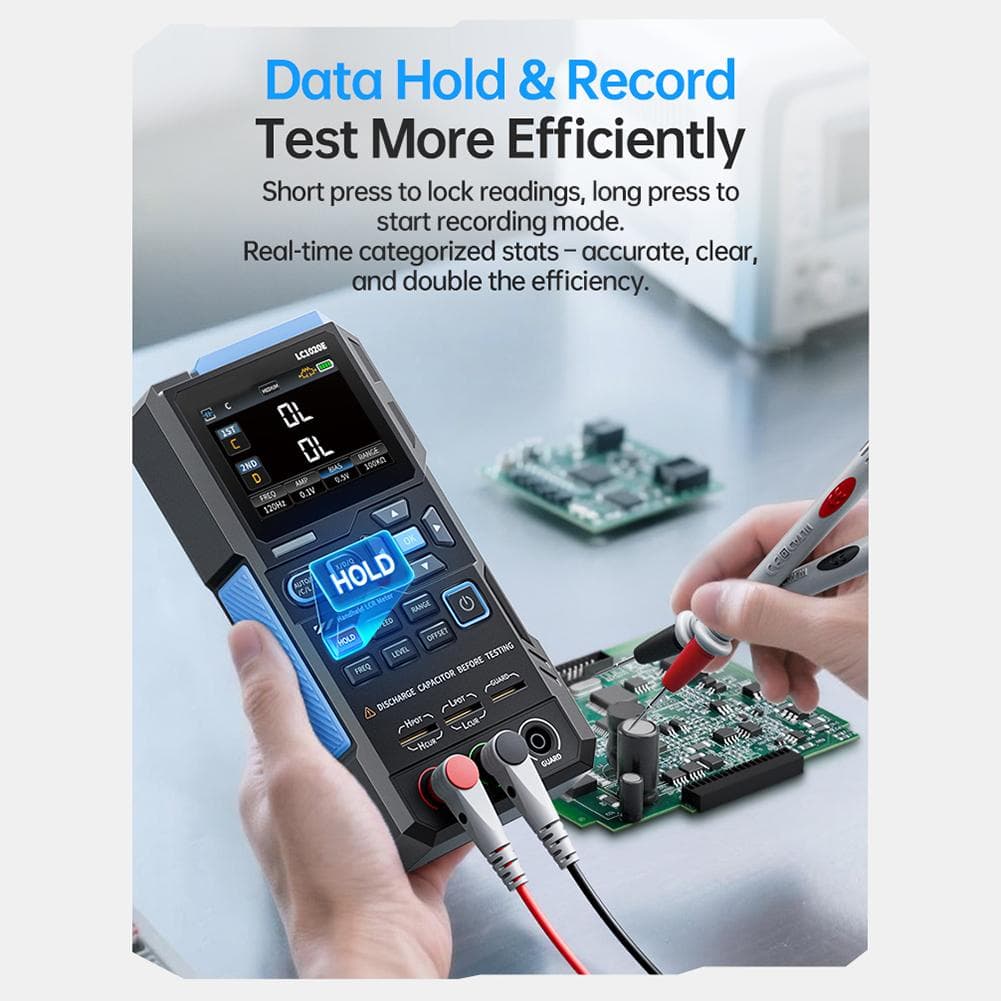

High-Precision & Wide Range Measurement: The LC1020E delivers a basic accuracy of 0.3%, ensuring reliable and precise readings for professional use. It supports a broad measurement range for inductance (0-100H), capacitance (0-100mF), and resistance (0-10MΩ), making it suitable for a vast of components. Multi-Frequency & Selectable Test Levels: With five selectable test frequencies (100Hz, 120Hz, 1kHz, 10kHz, 100kHz) and three test levels (0.1V, 0.3V, 0.6V) , this LCR meter provides the flexibility to accurately analyze component characteristics under various conditions, from general-purpose testing to high-frequency parameter analysis. Dual Test Ports for Versatility & Accuracy: The device features both a convenient three-terminal test socket for quick, everyday measurements and a five-terminal test slot. The five-terminal configuration allows for a complete four-terminal Kelvin measurement with professional test fixtures, ensuring maximum accuracy by minimizing lead impedance errors. Intelligent Component Sorting & Data Logging: Significantly boost your batch testing efficiency with the intelligent comparison function. Set a nominal value and tolerance (0.1% - 99.9%) to automatically sort components, with audio-visual prompts for pass/fail results. The data logging mode records the count of successful and failed measurements for effective quality control. Portable Design with Clear Display & Long Battery Life: Designed for lab, production line, and on-site use , the LC1020E features a compact body and a powerful 3.7V, 3000mAh rechargeable lithium battery. The large 2.8-inch TFT color screen clearly displays all main and secondary parameters (L/C/R/Z, X/D/Q/θ/ESR), making it easy to read measurements anywhere.
