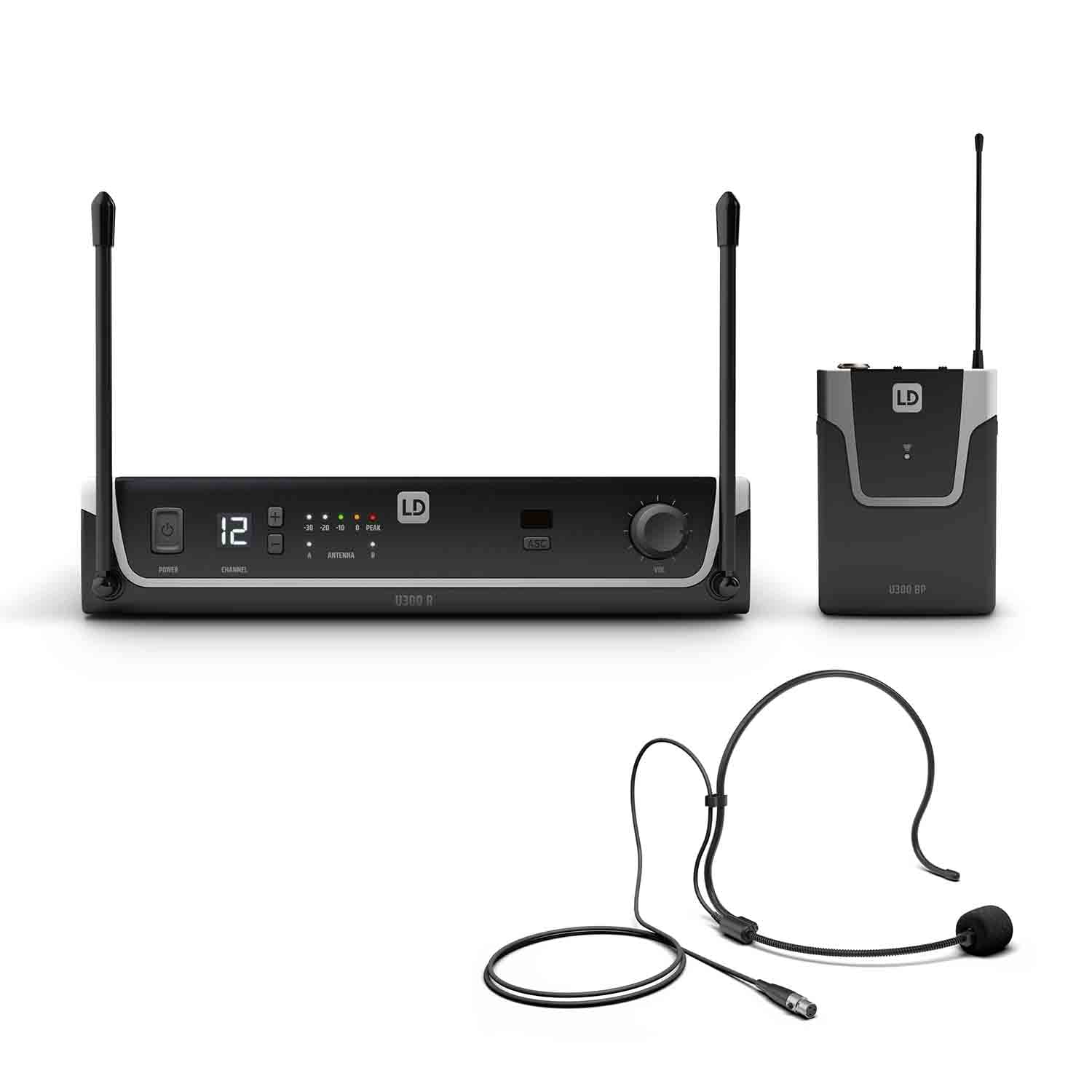

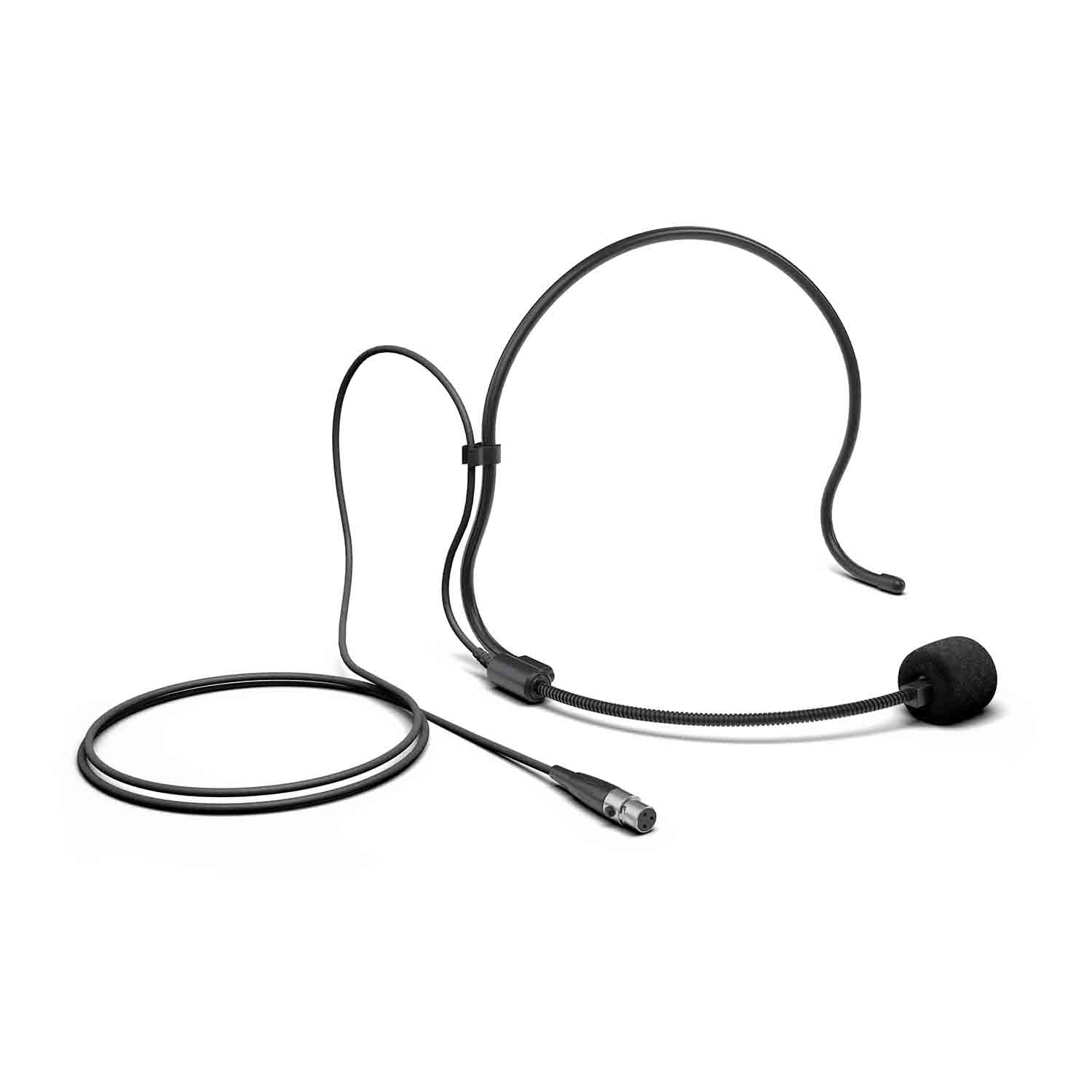

LD Systems U305.1 BPH Wireless Microphone System with Bodypack and Headset (514 – 542 MHz)

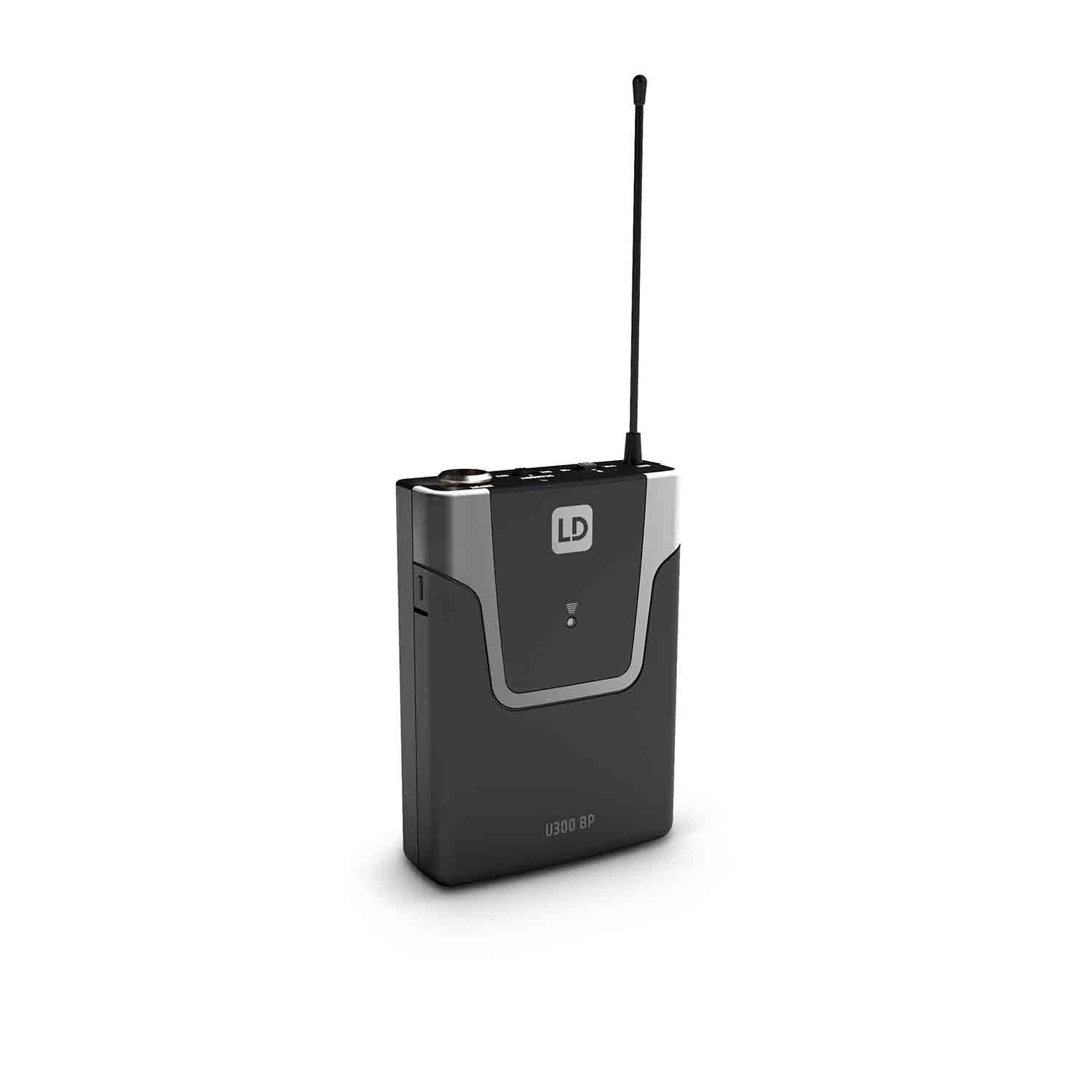

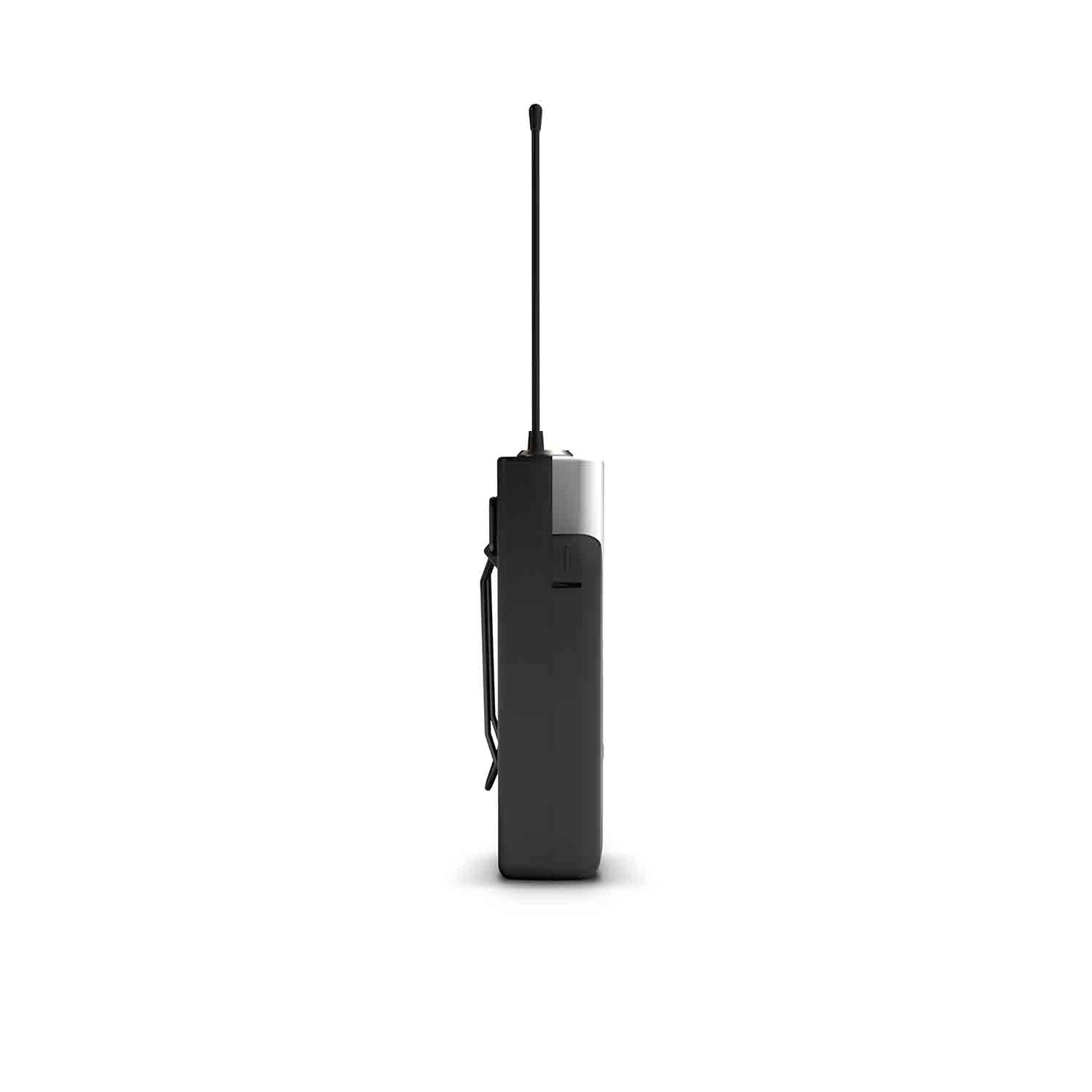

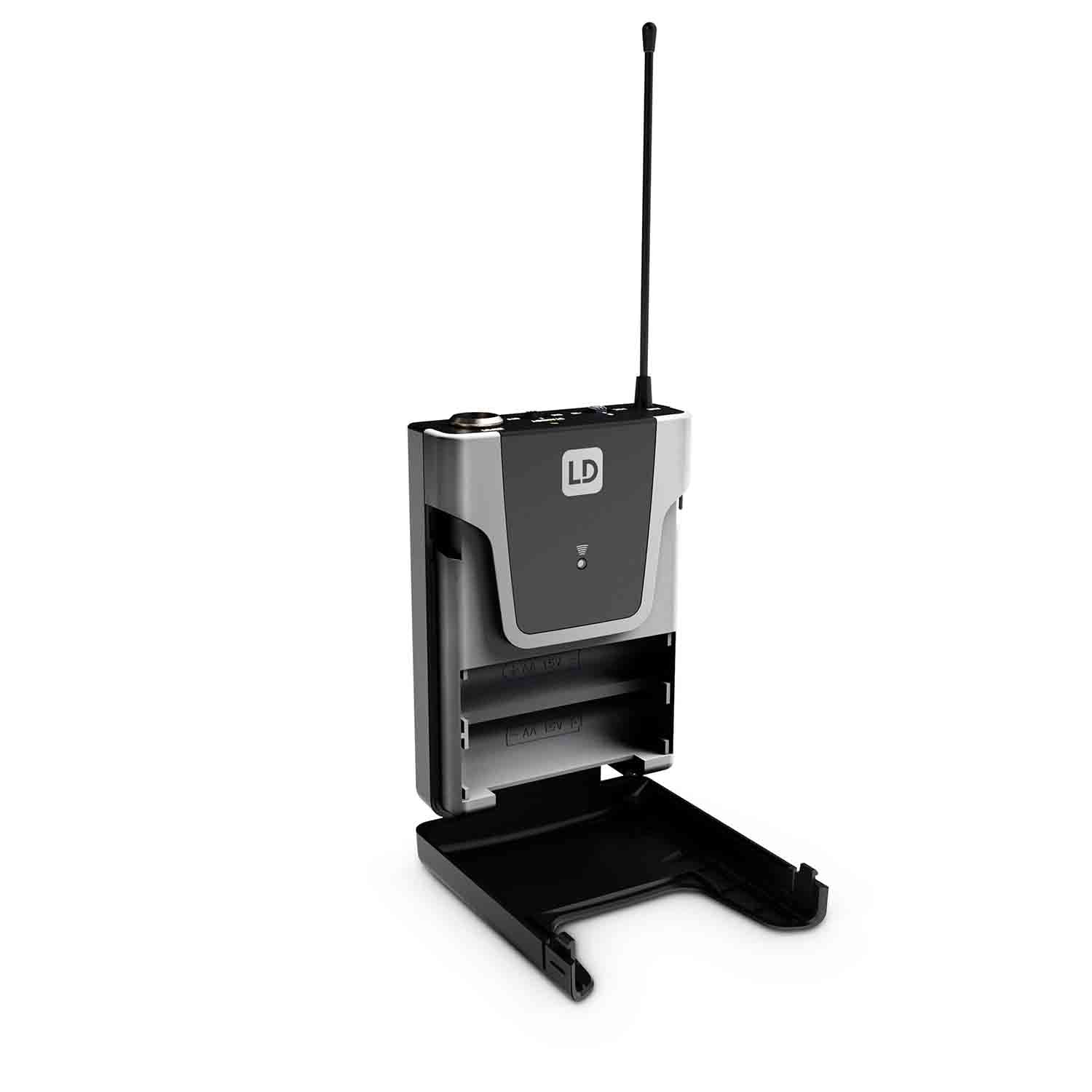

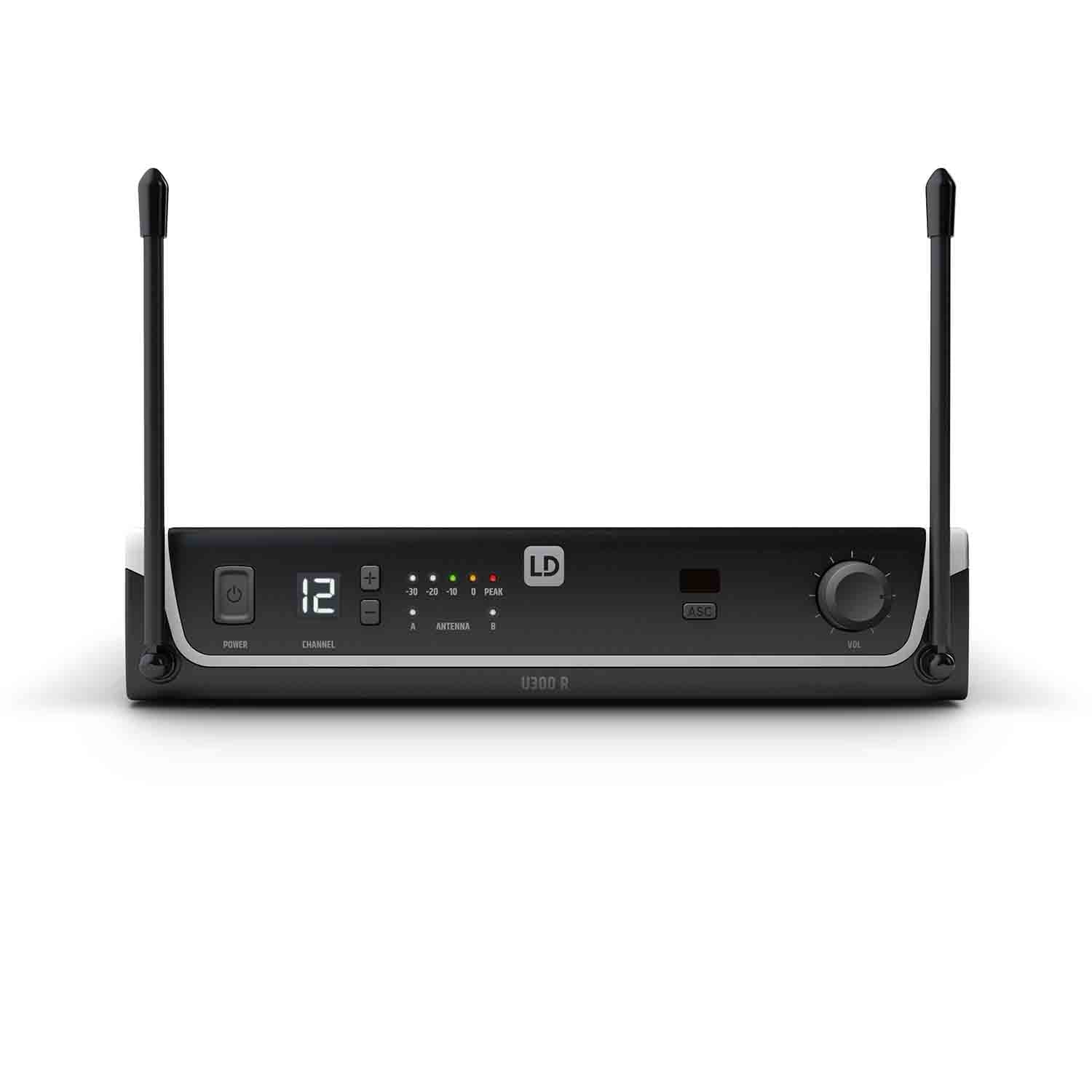

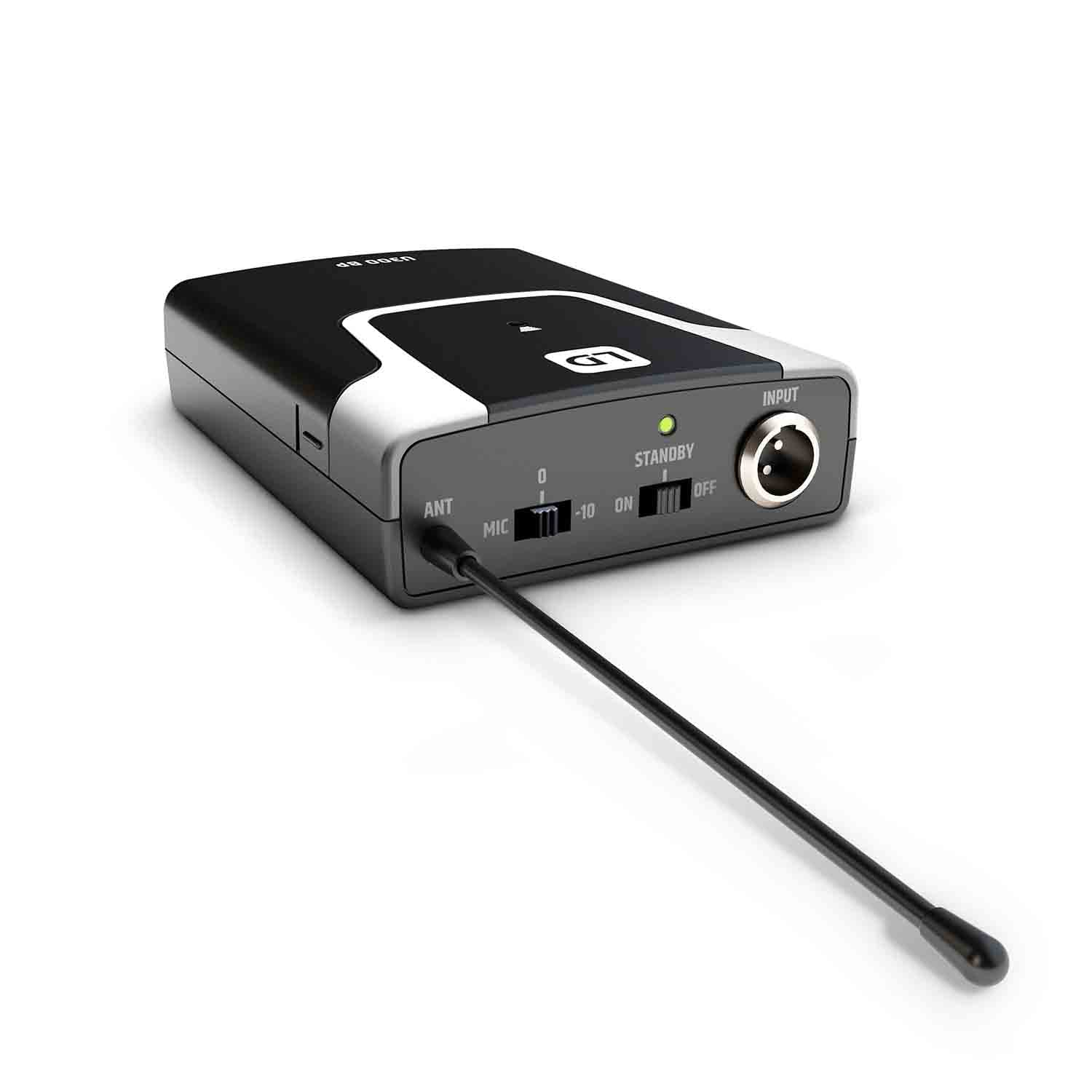

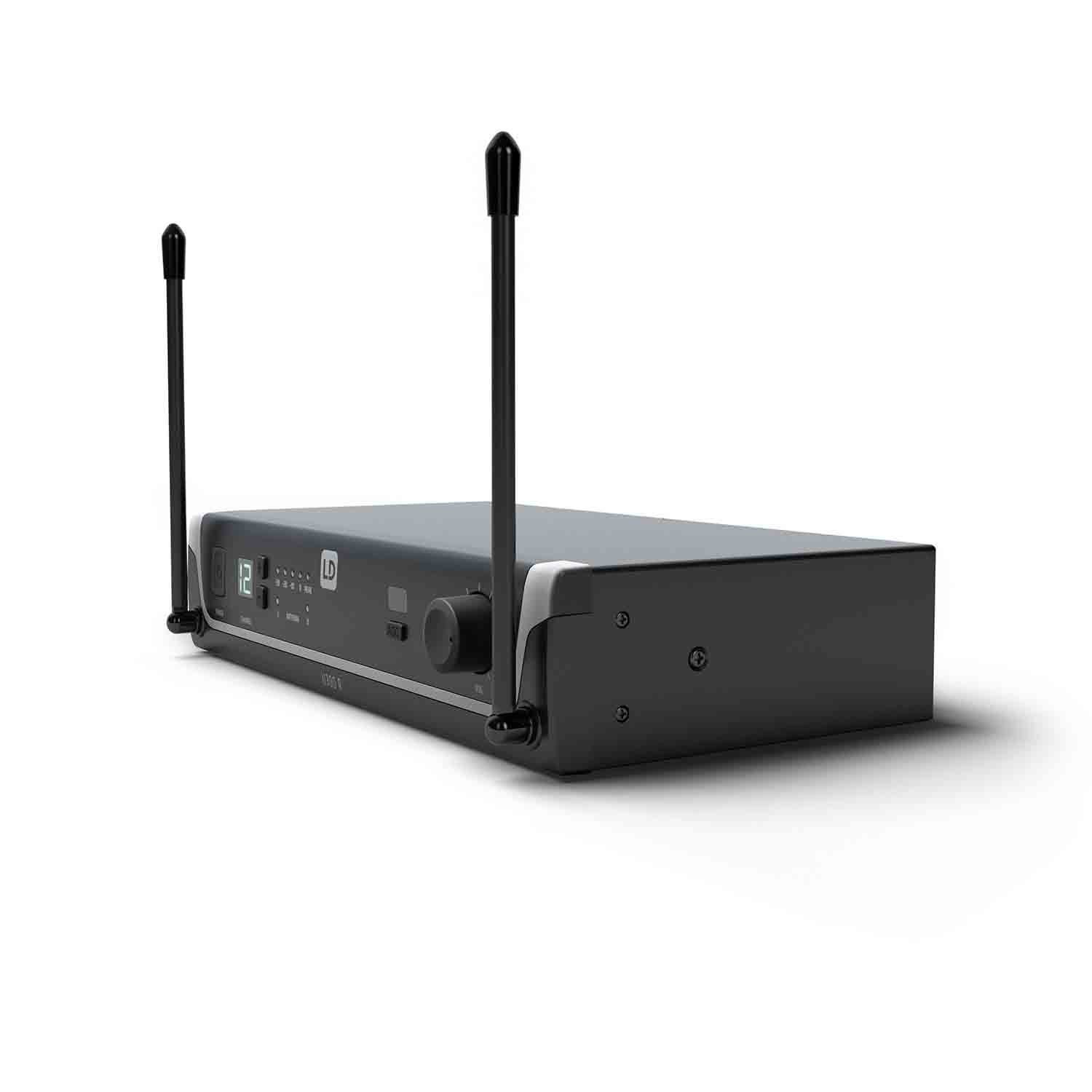

Diversity UHF wireless system with FM technology. 12 selectable channels. 100 m transmission range in ideal conditions. Simultaneous operation of up to 6 systems. ASC infrared transmitter and receiver syncing. Pilot tone squelch. 10 h transmitter operation on two AA batteries. Metal housing. Optional rackmount kit available as accessory. LD Systems U305.1 BPH US Product Specifications General Product type: Wireless Microphone Systems Type: Set Transmission frequency range: 512 - 542 MHz Weight: 0.85 kg LDU3051BP - LD Systems U305.1 BPH US (USA version) Body Pack transmitter - 514 - 542 MHz (only available in the USA) Product type: Wireless Microphone System Accessories Type: Bodypack Transmission frequency range: 514 - 542 MHz Channels: 12 Groups: 1 Weight: 0.085 kg Inputs: Mini-XLR (Phantom Powered Low-Z / High-Z Instrument) Frequency response: 25 - 16000 Rated HF output power: 10 mW Signal-to-noise ratio: 104 dB Operating time: >10 h Controls: Gain (3-way switch), Power On/Off Indicators: ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green) Power supply: 2 x AA battery Width: 65 mm Height: 91 mm Depth: 25 mm Other features: Belt clip, IR frequency synchronisation, Pilot tone LDU3051R - LD Systems U305.1 BPH US (USA version) Receiver (only available in the USA) Product type: Wireless Microphone System Accessories Type: Receivers Modulation Type: FM Transmission frequency range: 514 - 542 MHz Channels: 12 Groups: 1 Weight: 0.7 kg Antenna inputs: 2 x fixed Frequency response: 25 - 16.000 Noise reduction: Squelch Transmission optimization: Pilot tone Total Harmonic Distortion (THD): < 0.3 % Signal-to-noise ratio: 104 dB Audio output, balanced: XLR Audio output, unbalanced: 6.3 mm jack, switchable unbalanced output level Audio mix output, balanced: XLR Audio mix output, unbalanced: 6.3 mm jack Max. output level: +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu Headphones outputs: 6.3 mm TRS Controls: ASC Sync, Channel down, Channel up, Line/Instrument Level, Power, volume Indicators: 5 LED VU meters, Antenna A/B, LC display Power supply: 12 V DC - 18 V DC (500 mA), external power supply Width: 211 mm Height: 43 mm Depth: 120 mm Accessories (included): 2 x AA batteries, Audio cable, Power supply Other features: IR frequency synchronisation LDWS100MH1 - LD Systems U305.1 BPH US (USA version) Headset microphone, black Directivity: Cardioid Capsule type: Condenser Nominal impedance: 680 Ω Sensitivity (transfer factor): 6.31 mV/Pa Phantom power: 5 V Output connector type: Mini XLR female Cable length: 1 m Material: ABS Frequency response (-6 dB, rel. Avg): 100 - 12,000 Hz Color: Black Weight: 49 g Each U305.1 BPH US Retail Box Includes: (1) LD Systems U305.1 BPH US (USA version) Body Pack transmitter - 514 - 542 MHz (1) LD Systems U305.1 BPH US (USA version) Receiver (2) AA batteries (1) Audio cable (1) Power supply (1) LD Systems U305.1 BPH US (USA version) Headset microphone, black
