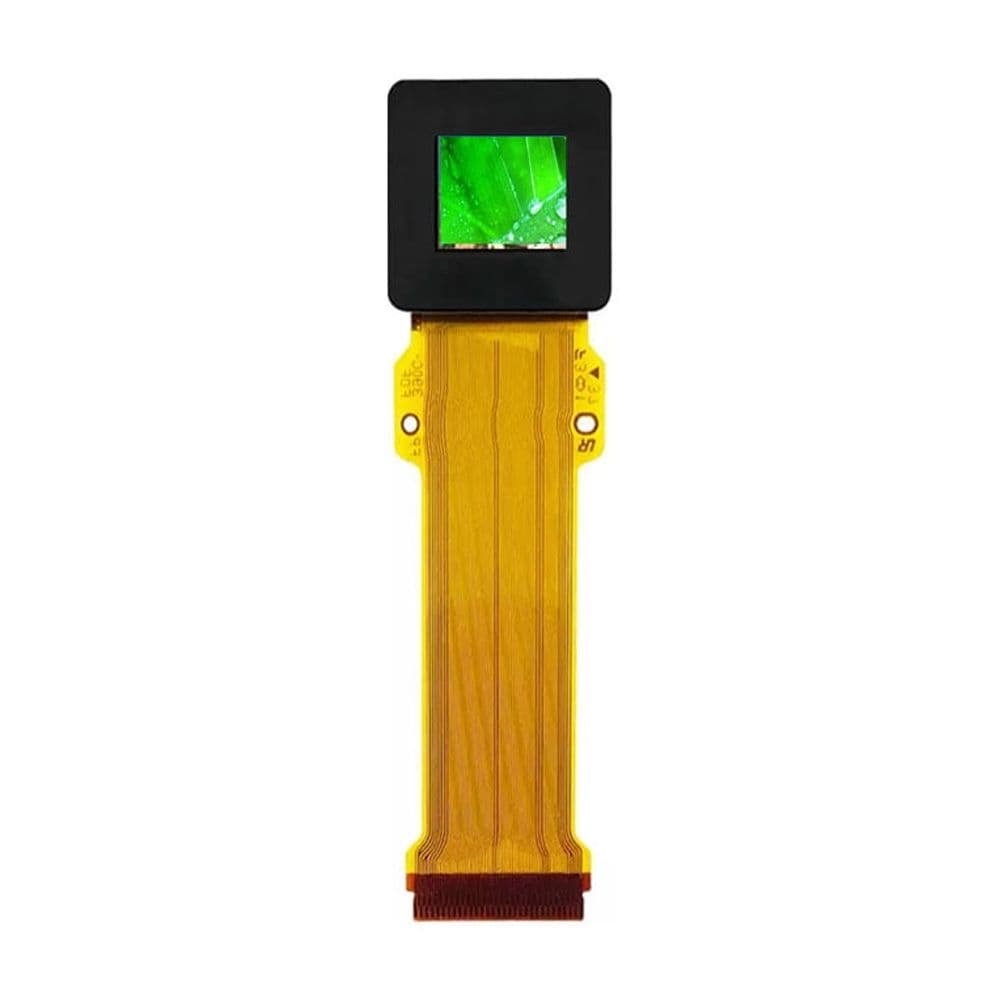

Micro AR Display 0.39 inch 1024 (RGB) × 768 high resolution 1000cd/m2 high brightness RGB Interface for EVFs (electronic viewfinders) Consumer Camera

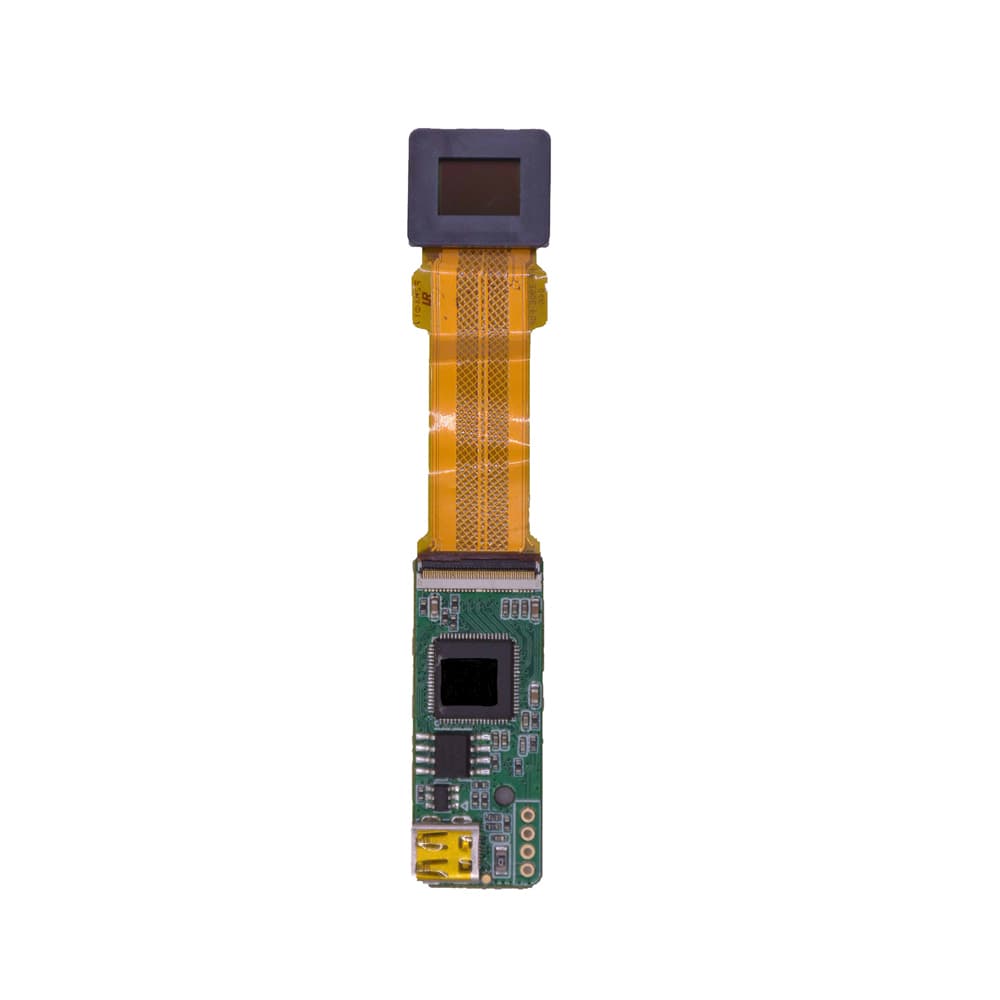

◆ parameter: Display Type:OLED Display Display Size:0.39" Display Color:Full color Resolution:1024 (RGB) × 768 Luminance:1000 cd/m2 Pin No:61P Interface Type:parallel RGB 24-bit/YCbCr 16-bit input Driver Board:HDMI Port Magnifiering Lens: 16X Module Dimension:15.6 x 13.6 x 0.2 (mm) Active Area:8.143x 6.146 (mm) Operatingn Temperature : -10℃~70℃ Storage Temperature : -10℃~70℃ ◆Features: High-Resolution Display:The display features a resolution of 1024×768 pixels, providing sharp and clear images. Low Power Consumption:Si OLED are known for their energy-efficient operation, the 0.39 inches Micro OLED module is only 150mW power consuption. High Brightness:With a brightness rating of 1000nits, the 0.39 inch Micro OLED Display delivers vibrant and easily visible visuals, even in bright lighting conditions. Contrast Ratio:The 0.39 inch Micro OLED 1024×768 with a high contrast ratio of 100000:1, ensuring consistent and amazing image quality. ◆Packing details: 0.39" Micro oled display x1; HDMI Adapter Controller Board x1; HDMI Adapter Cable x1 Magnifiering Lens x1 ◆Applications: EVF (electronic viewfinders) for consumer cameras; AR and VR glasses/goggles,entertainment, industrial applications, and sports,headsets for consumer AR glasses and the metaverse Drones and FPV All types of scopes Medical care (medical headset displays for surgery support and as displays for assistive auxiliary glasses for the vision-impaired) Other EVFs (for industrial microscopes and other professional devices that require high-quality image display.) head mounted displays very small monitors,etc
