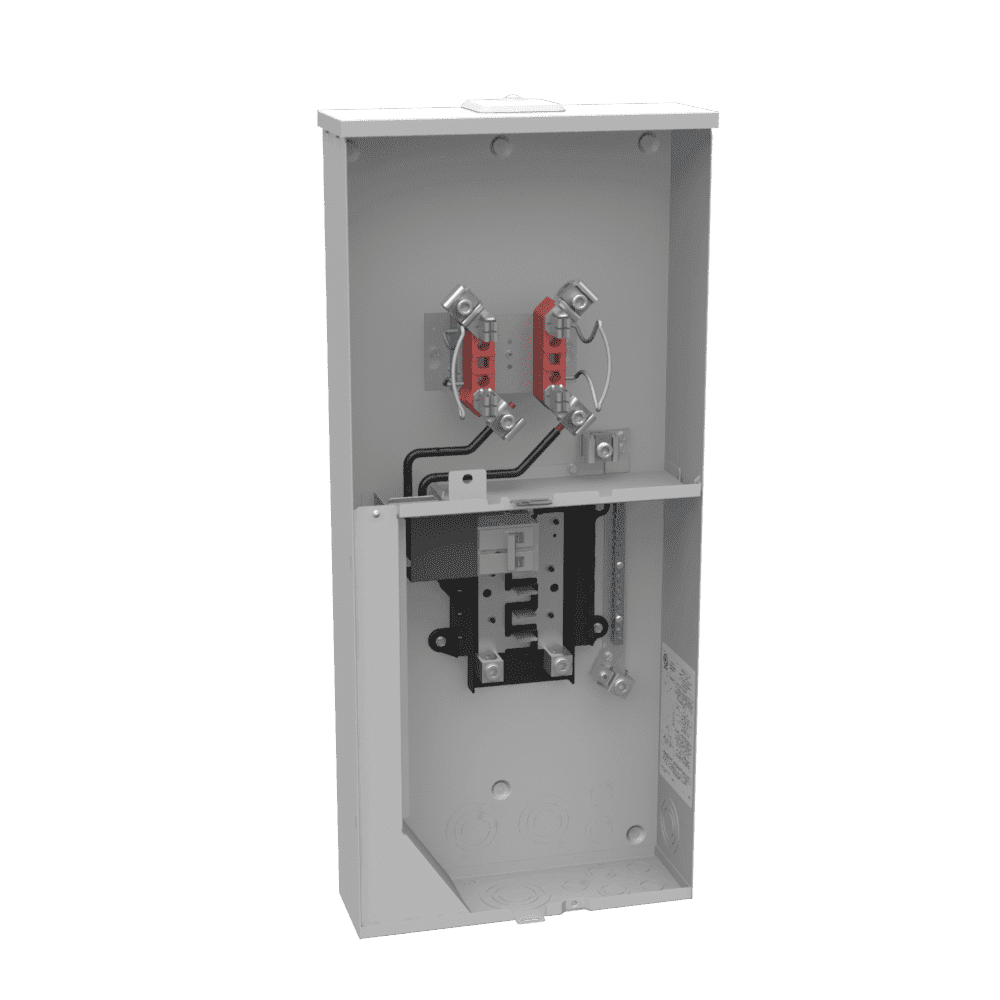

Milbank U5168-XL-100-BL-NE 1 Phase 4 Jaw 1 Position 200 Amp Ringless Meter Socket

‌Amperage Rating: 200 Continuous Amperes Application: Meter Socket with Main and Load Center Barrel Lock Provision: 9/16 Inch Knockout and Angle Bracket for Barrel Lock Provision Brand Name: Milbank Bypass Provision: No Bypass Cable Entry: Overhead or Underground Main Breaker Size: One 100 Ampere Main Breaker Material: G90 Galvanized Steel with Powder Coat Finish Equipment Ground: Ground Bar Frequency Rating: 60 Hertz Hub/Closing Plate: Small Closing Plate Insulation: Glass Polyester Number of Jaws: 4 Terminal Knockouts: True Line Side Wire Range: 6 AWG - 350 kcmil Load Side Wire Range: 6 AWG - 350 kcmil Mounting: Surface Mount Number of Branch Circuits: 10 Number of Main Breakers: 1 Number of Meter Positions: 1 Number of Receptacles: 0 Phase: 1 Phase Size: 4.5L x 14.125W x 32.375H inches Standard: UL Listed; Type 3R Terminal Type: Lay-in Type: Ringless Meter Socket Voltage Rating: Up to 240 Volts Alternating Current Height: 32.375 inches Length: 4.5 inches Width: 14.125 inches
