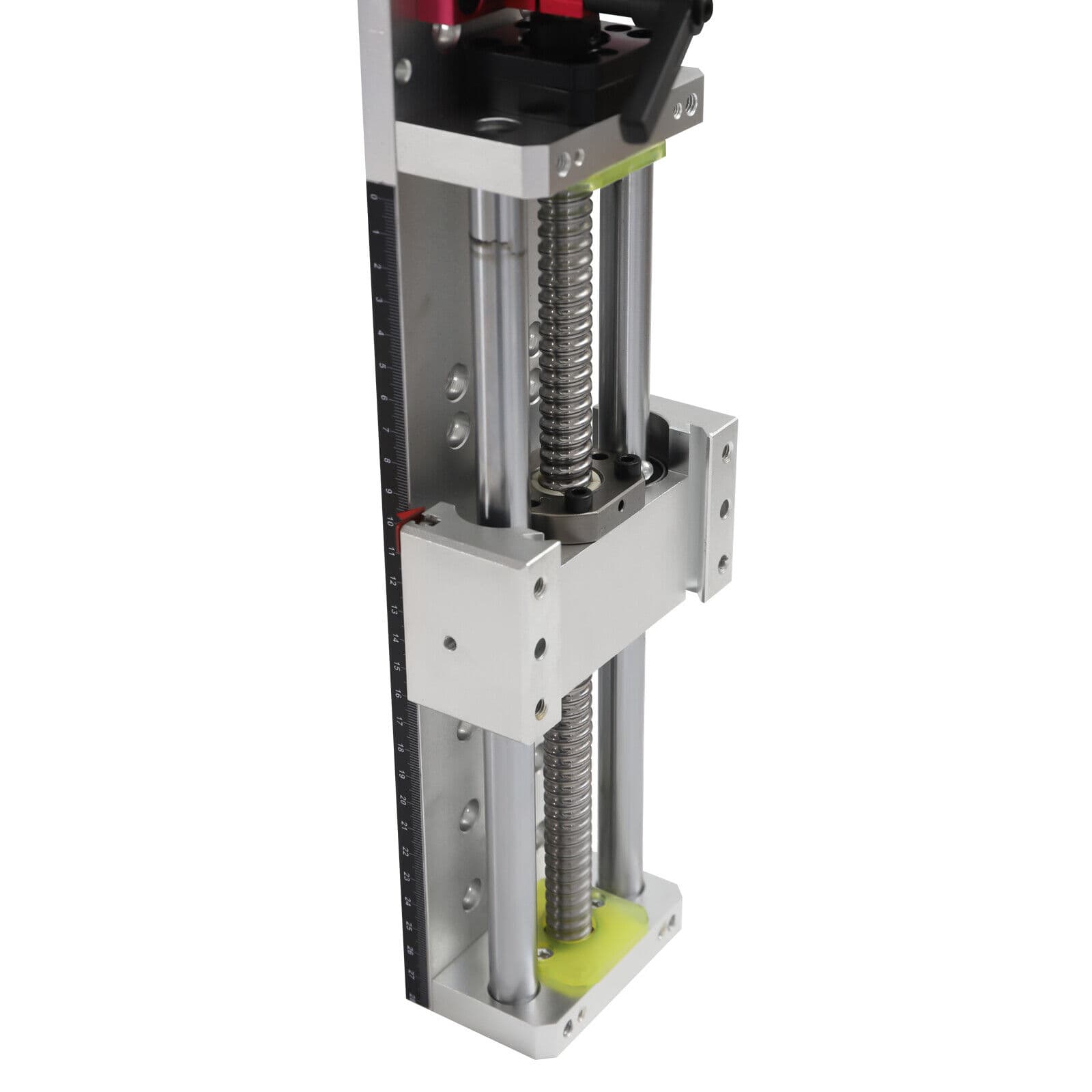

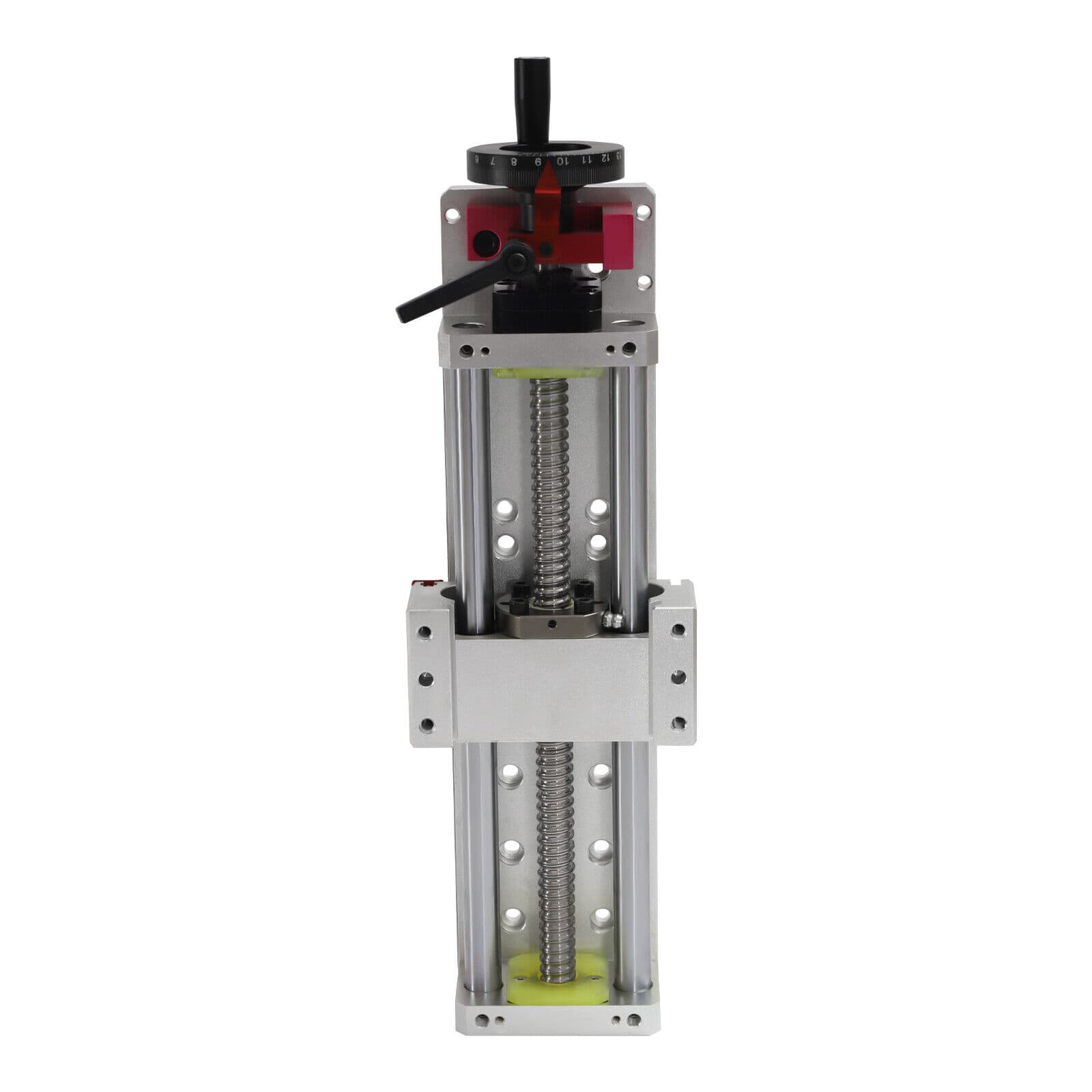

Miumaeov Linear Stage Actuator Travel for CNC 3D Printer Router Controller 100/200mm Ballscrew 1605 Double Optical Axis Linear Rail Guide Manual Slide Linear Stage Actuator Travel Tool Silver

Specification Model: KR60S-100/KR60S-200 Round Guide Rail Model: HG15 Screw Rod: 1605 Type: Manual Guide Rail Type: Double Optical Axis Guide Color: Silver Material: 606 Aluminium Surface Treatment: Sand Blasting Oxidation Treatment Process: CNC Position Accuracy: ±0.05mm/ 0.002in Ball Screw Diameter: 16mm/ 0.63in Ball Screw Lead: 5mm/ 0.197in Horizontal Load: 30kg/ 66.14lbs Vertical Load: 20kg/ 44.09lbs Linear Rail Stork: 20cm/ 7.87in(KR60S-200 ) 10cm/ 3.94in ( KR60S-100) Product Size: (KR60S-100) 12*9*31cm/ 4.7*3.6*12.2in, (KR60S-200) 12*9*41cm/ 4.7*3.6*16.2in Package Size: (KR60S-100) 38*22*15cm/ 14.96*8.66*5.91in, (KR60S-200) 48*22*15cm/ 18.9*8.66*5.91in Net Weight: (KR60S-100) 4kg/ 8.82lbs, (KR60S-200) 4.5kg/ 9.92lbs Gross Weight: (KR60S-100) 4.5kg/ 9.92lbs, (KR60S-200) 5kg/ 11.02lbs
