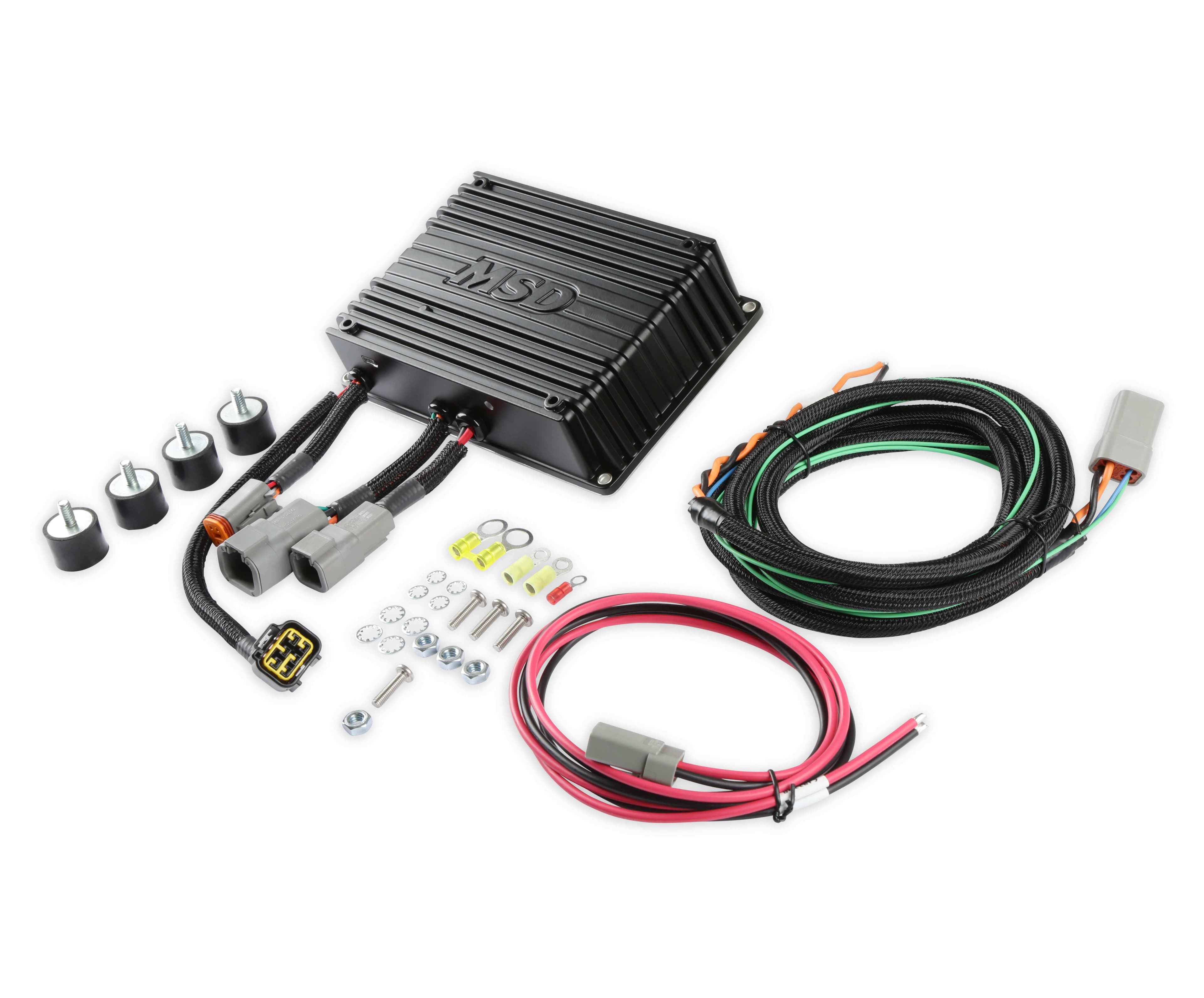

MSD 8001 Ignition Box - Race - Pro 600 Single Channel

Adjustable output energy up to 680 millijoules (mJ) Over 3A peak spark current when used with the recommended ignition coil PN 82612/3 Compatible with 4, 6, and 8 cylinder engines Spark current sense and recording for each firing Spark duration of greater than 250 microseconds Rated for continuous operation at an output of 600 mJ Operates between 12- 28V Starting and running down to six volts Direct plug-in to MSD Power Grid Controller Part # 7730 Programmable Trigger Edge Reverse battery protection Internally protected from damage caused by internal over-temperature or open / shorted coil Diagnostic LED detects the presence of faults On-the-fly Power Output selection wire This ignition requires the redesigned PN 8457, high-temperature rotor, for small diameter rotor applications
