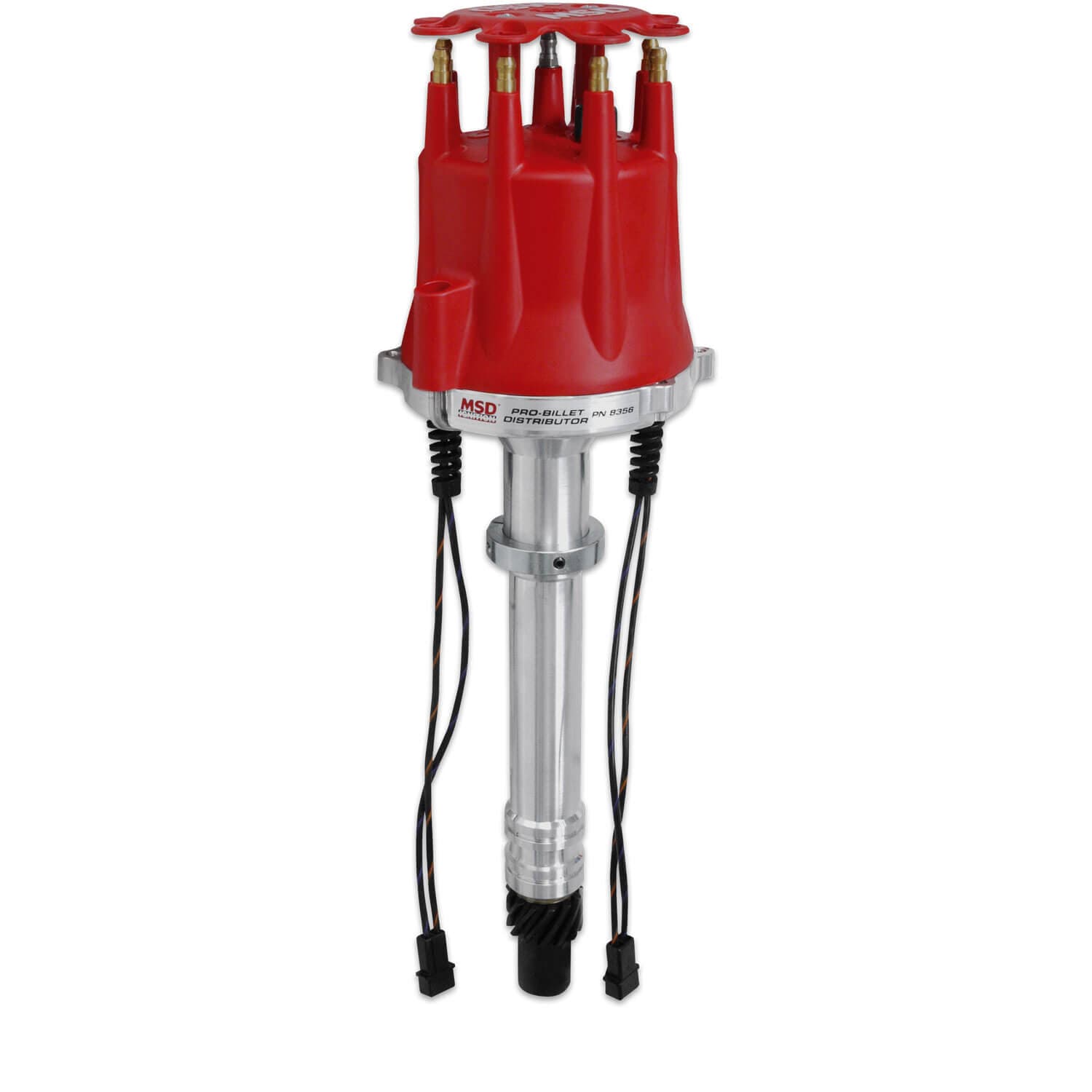

MSD 8356 Distributor

Must be used with an MSD 6, 7, or 8-Series Ignition Adjustable slip collar mounting flange for engines with modified deck heights Mechanical advance assembly can be locked out for crank trigger systems O-ring seals can be installed for oil pressure control (modified blocks only)  Special oil tract improves lubrication to the distributor and cam gear  0.500†steel shaft is QPQ coated and guided by a sealed ball bearing and an extra long sintered bushing  CNC machined billet aluminum housing and billet aluminum base  Advance weight pins are staked and tig welded to the plate  Nylon pads ensure smooth operation of the advance weights  Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction  Easy-to-adjust mechanical advance with supplied springs and stop bushings Dual magnetic pickups are placed 180° apart to provide a complete redundant ignition system for racing applications
