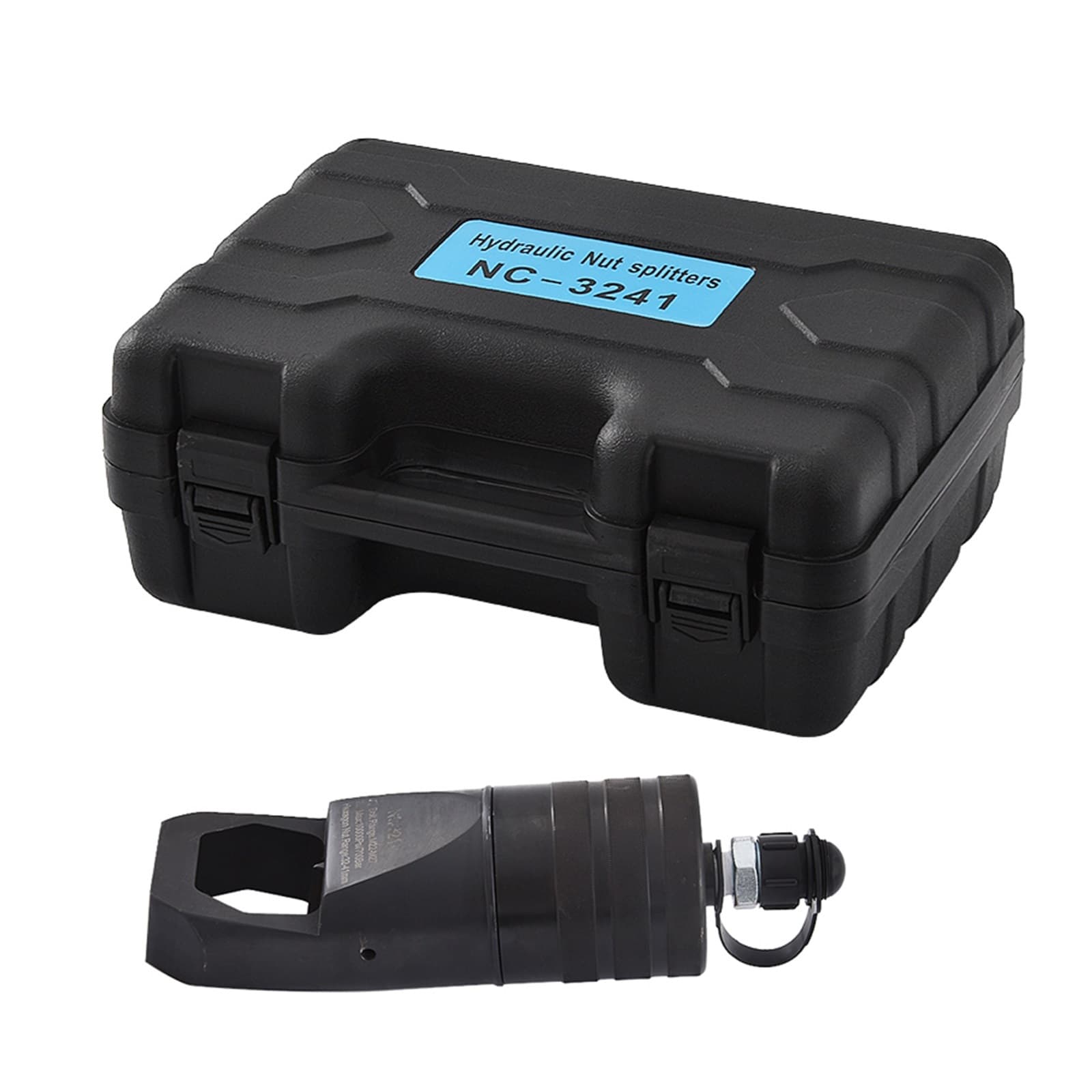

NC-3241 20T Split Type Hydraulic Nut Cutter Nut Splitter Nut Cutting Tools With Bolts Range M22-M27 And Hex-nut Range 32-41mm

NC-3241 20T Split Type Hydraulic Nut Cutter Nut Splitter Nut Cutting Tools With Bolts Range M22-M27 And Hex-nut Range 32-41mm Specification: Name: NC-3241 Nut Cutter Output: 20T Bolt range: M22-M27 Hex nut range: 32-41mm Packing size: 32*14*23cm Weight: 6.5kg Features: 1, rust nut is easily removed 2, compact design is easy to use 3, explosion-proof environment is available 4, the spring automatically resets 5, unique angle head design, special steel heavy cutting head 6, split hydraulic design, equipped with ZG3/8 quick connector and dust cap, can be connected to any hydraulicpump with output pressure up to 70 MPa Instructions: 1. Open the oil filling screw , fill the manual oil pump box with 20# oil, or hydraulic oil, and close the unloading valve; 2. Insert the head hole of the cutter into the nut to be broken and straighten it; 3. Press the manual oil pump to push the boring tool out to the nut. When the boring tool is pushed into the nut by one-half, the hand pump should be carefully pressed to avoid excessive force. The boring tool quickly breaks the nut and damages the bolt wire. buckle; 4. When the cracking sound is heard, it indicates that the nut has been broken, that is, the pressingis stopped; 5. Unscrew the unloading valve, return to the original position after the boring tool, and remove the cleaver.
