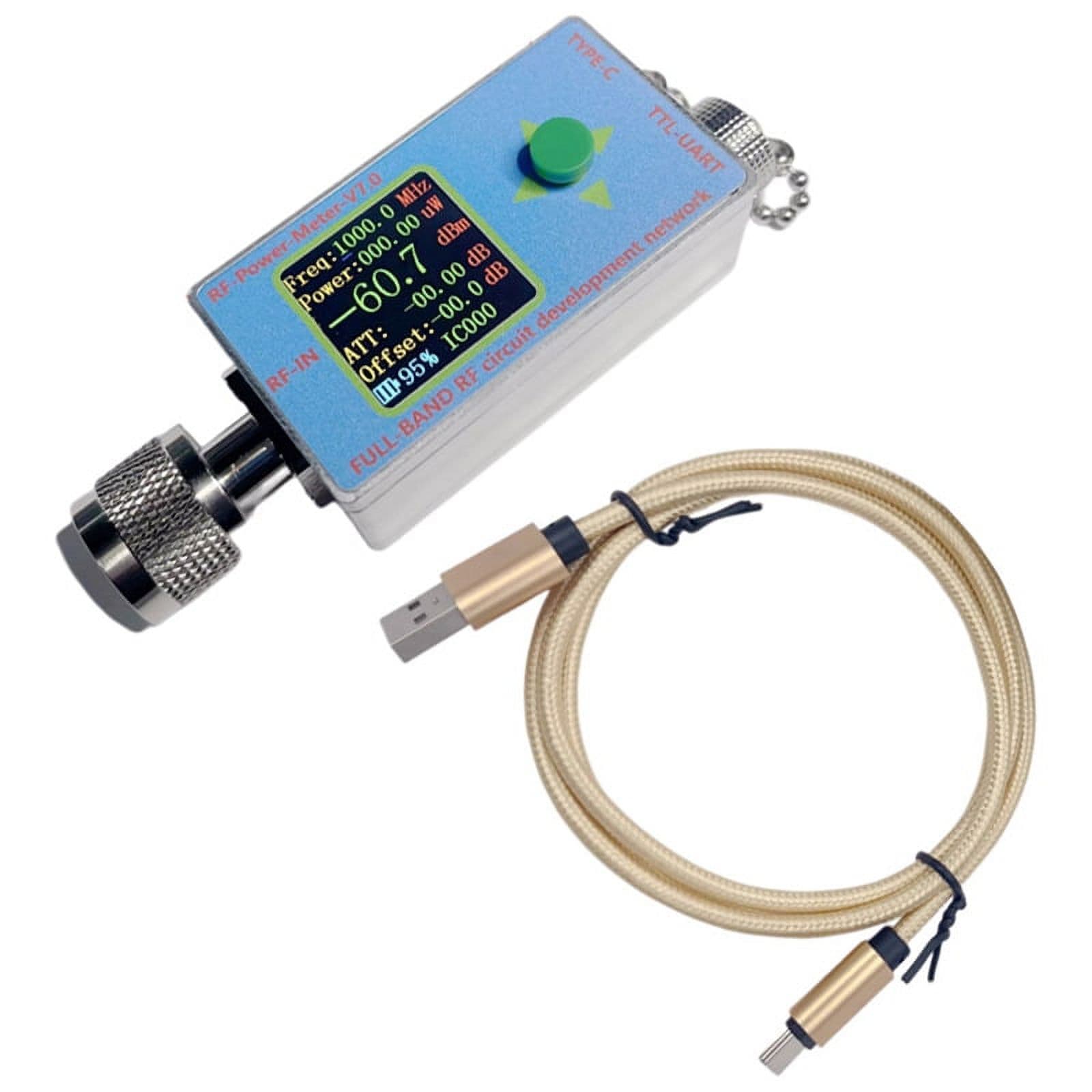

New 10GHz LCD Power Meter N-Type Type-C USB Full-Band Circuit Development Network Serial Communication

Up to 10GHz signal acquisition function is supported. The 4-port aviation plug is used to provide TTL serial port reading and writing function, and provide single and continuous data reading mode. Built-in digital programmable attenuator (0-31.75DB), the maximum input power measured with digital attenuator is 30dBm (1W), and the dynamic range is +30dBm to - 60dBm. The power meter .0 comes with 1.3-inch TFT LCD and built-in Li battery, which can be operated offline. Support a variety of high-speed dynamic acquisition, with a maximum of 500kbps (2uS) upper computer acquisition.
