NextGen / Bad Wolf 225kA Whole-House Type 2 Surge Protector — Overwatch Protection Circuitry, NEMA 3R, 240VAC

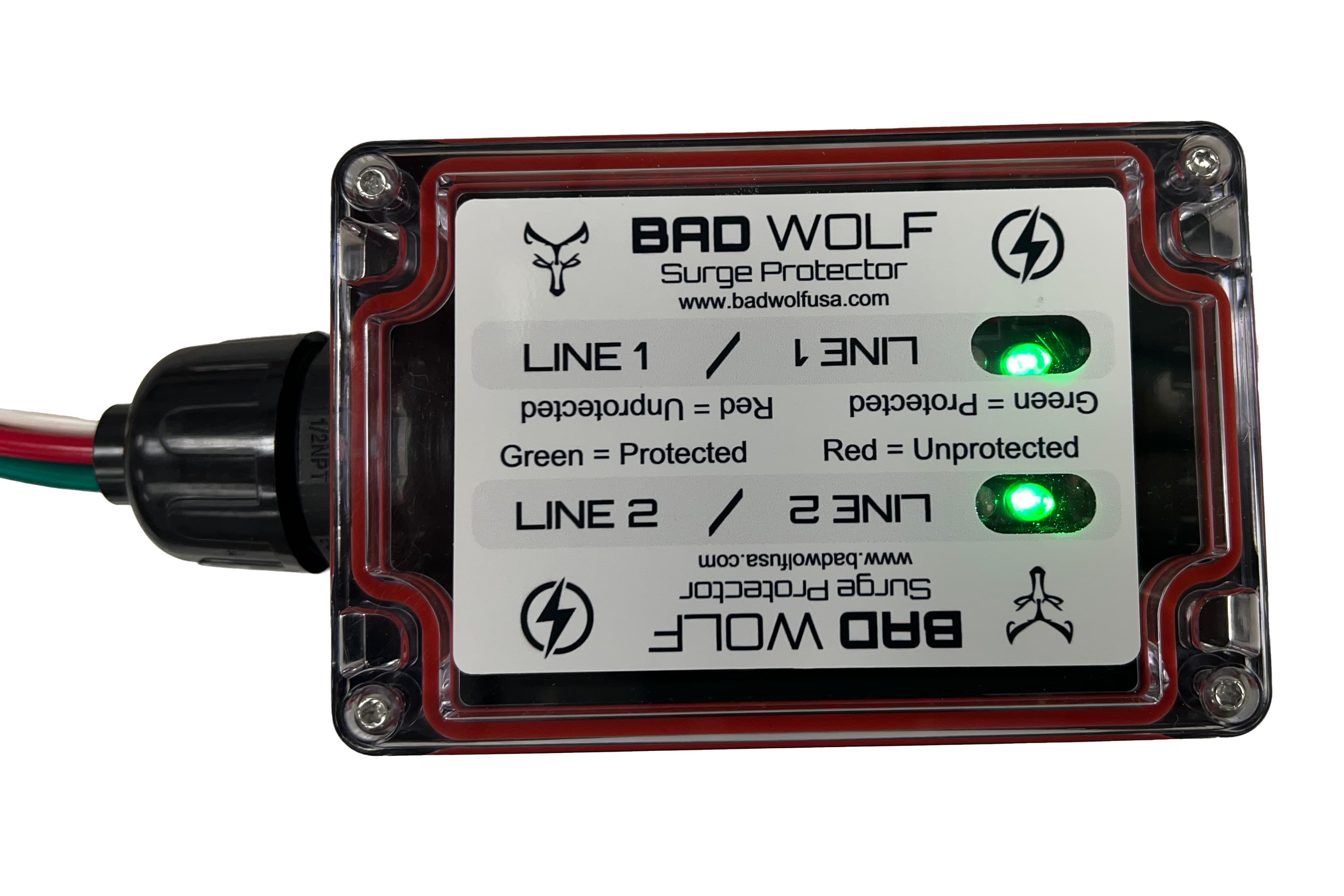

Overview: The Bad Wolf NextGen whole-house AC surge protector uses our patented Overwatch protection circuitry for ultra-fast response and clear status feedback. This Type 2 SPD delivers 225,000 Amps of surge current capacity per phase (225kA) and provides overvoltage protection for all circuits tied to the main breaker panel. Status & Protection Modes: Visual Status Indicator Lights (Green = Protected), (Red = Unprotected). Protects across six modes: (L1 – L2), (L1 – N), (L2 – N), (L1- G), (L2 – G), (N- G). Vpr: (L-L 300V) (L-N 150V) (N-G 50V). Installation & Ratings: Designed for installation at the load center and used in conjunction with a 20A 2 pole circuit breaker (Not Included). Nema 3R Enclosure per Nema/UL requirements with 4X indoor / outdoor rating. Connection Type: Hardwire. Form Factor: Surface Mount. Electrical Specs: Built for normal Line to Line voltages of 240VAC and Line to Neutral voltages of 120VAC. Type of Surge Protection: AC. Voltage (Vac): 240. SPD Classification: Type 2. Surge Current Rating (A): 225kA. Additional Performance: EM Rating: EMP (E1, E2 and E3 Phase). Solar Flare (CME). Service Type: Split Phase. Indicators & Fail-Safe: A green LED confirms the unit is protecting connected circuits; two red LEDs indicate a failure on either line connection so you can quickly identify loss of protection. Mechanical & Safety Certifications: Product Dimensions 6"x3.25"x2.25". Product Weight 19oz. Component and Enclosure Certifications: UL 1449 CSA C22.2 No. 269-5 E320116 IEC61051-1, IEC 61051-2, IEC61051-2-2 Annex Q of IEC 60950-1 Annex G of IEC 62368-1 J50519458 GB/T 10193 GB/T 10194 GB 4943.1 GB 8898 CQC21001319760 UL94V-0 Flammability rated IP67 UL508A. Note: Bad Wolf Whole House Surge Protection Devices (SPDs) are installed in the main breaker panel of your residence to protect all connected circuits. This unit is supplied as the Bad Wolf AC surge protection device SPD and is built to handle surge currents up to 225,000 Amps (225kA).
