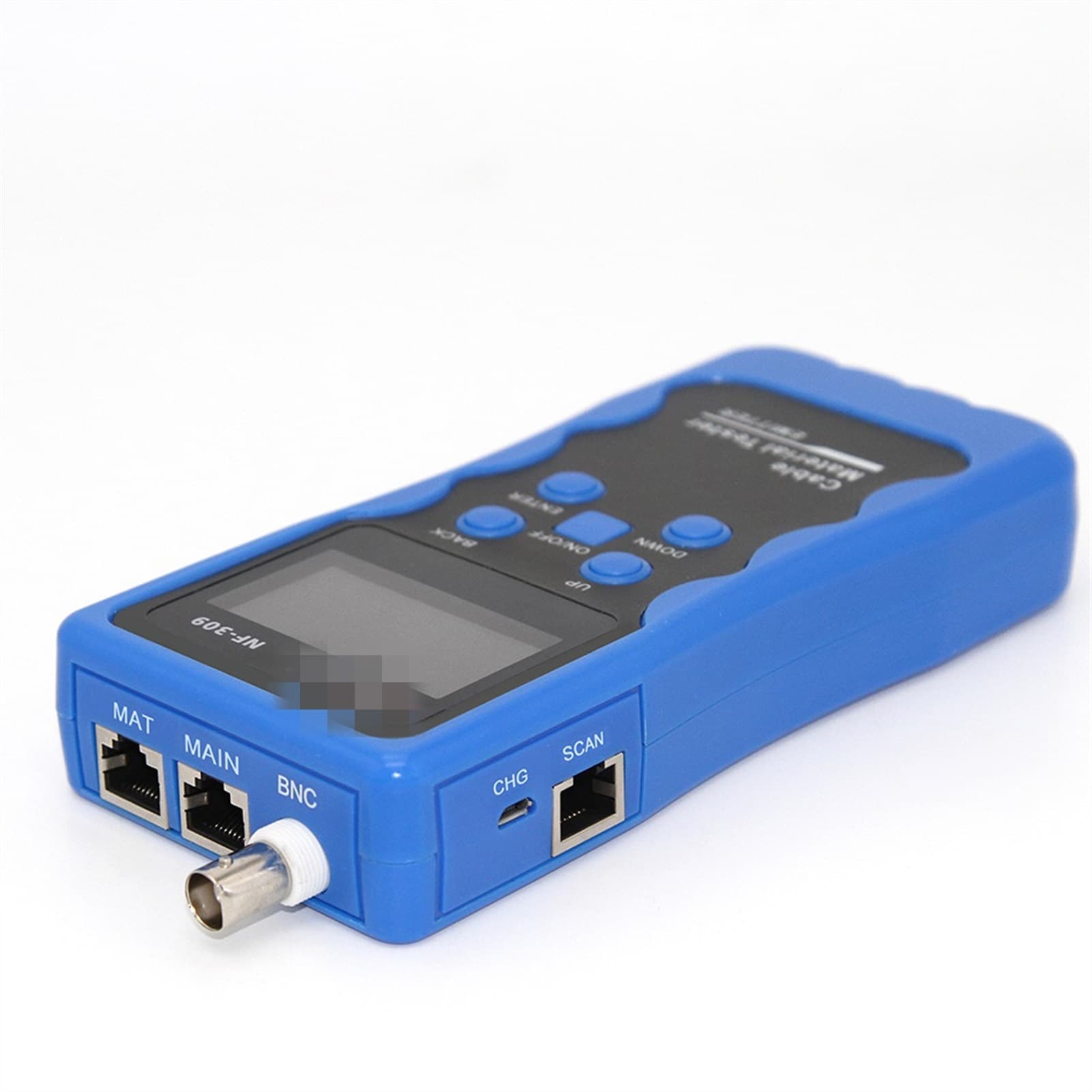

NF-309 Cable Tester LCD Screen Length Test Wire Locator POE Check Cable Material Tracker POE Function ,Fast Responses

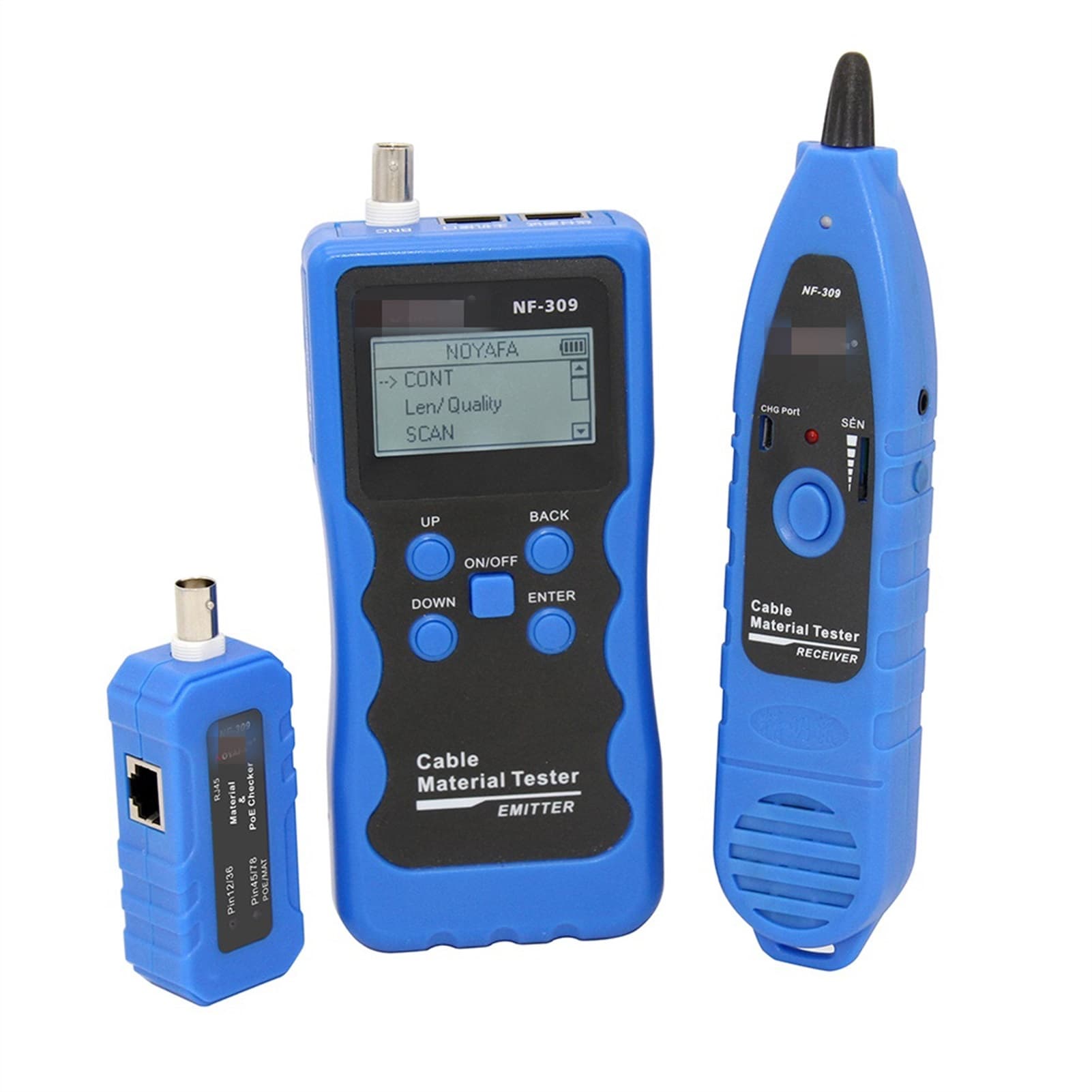

Application include: 1. Network cable and Coaxial cable continuity test. 2. Trace network , telephone and coaxial cable. 3. Measuring the network and coaxial cable length and breakpoint. Length measuring accuraty is more than 98% and 2000meters. 4.Measure the cable material for cCat 5 , Cat6& Nonstandard lan cable 5Test cable resisitance connect with the remote unit 6 Measure the distance that a cable can provide POE 7 POE function identify which pins provide the Power. 8. LED light asist using in dark envitoment while cable scanning. Benefits : Enables cable to be located even when totally concealed. Memory and storage functions. LCD screen shows test result clearly. Applications include : Lithium battery x 2 sets Telephone cable adapter x 1 set Network cable adapter x 1 set Coax cable adapter x 1 set Earphone x 1 set Charging adaptor x 1 set Cable clips x 1 set Attention : 1. Don't connect high voltage cables to avoid buring out the device. 2. Don't connect telephone cable into RJ45 port. Transmitter specifications NF-309 Indictor LCD 53x25 mm, with back light Tone frequency 225 KHz Max. distance of transmission 1km Max. distance of cable map 1km Max. working current Less than 70mA Cable continuity test types RJ45, BNC Cable scan types RJ45,BNC,RJ11 POE scan yes Max signal voltage 8Vp-p Cable material CAT6,CAT5 OFC, Cat5 Copper-clad aluminum etc. Battery type 3.7V 1400mAH Lithum battery charging port mini USB POE power supply distance detection 48V Standard/ non-standard POE 5W 15V non-standard POE 5W 24V non-standard POE 8W 15V non-standard POE 8W 24V non-standard POE Size (mm) 185x80x32mm NF-309 Receiver specifications Frequency 225kHz The Max. working current Less than 70mA Earjack 1 LED illumination 2 Battery type 3.7v 1400mAH Lithum battery Size (mm) 218x46x29 mm NF-309 Remote Specifications ports BNC, RJ45, Material & POE port Size mm 953423mm Related Products: network cable tester,cable tester,ethernet tester,network & cable testers,ethernet cable tester,ethernet testers,ethernet wire tracer,fiber tester,coax cable tester,cable tracer,network tool kit,network tools,ethernet tester tool,poe tester
