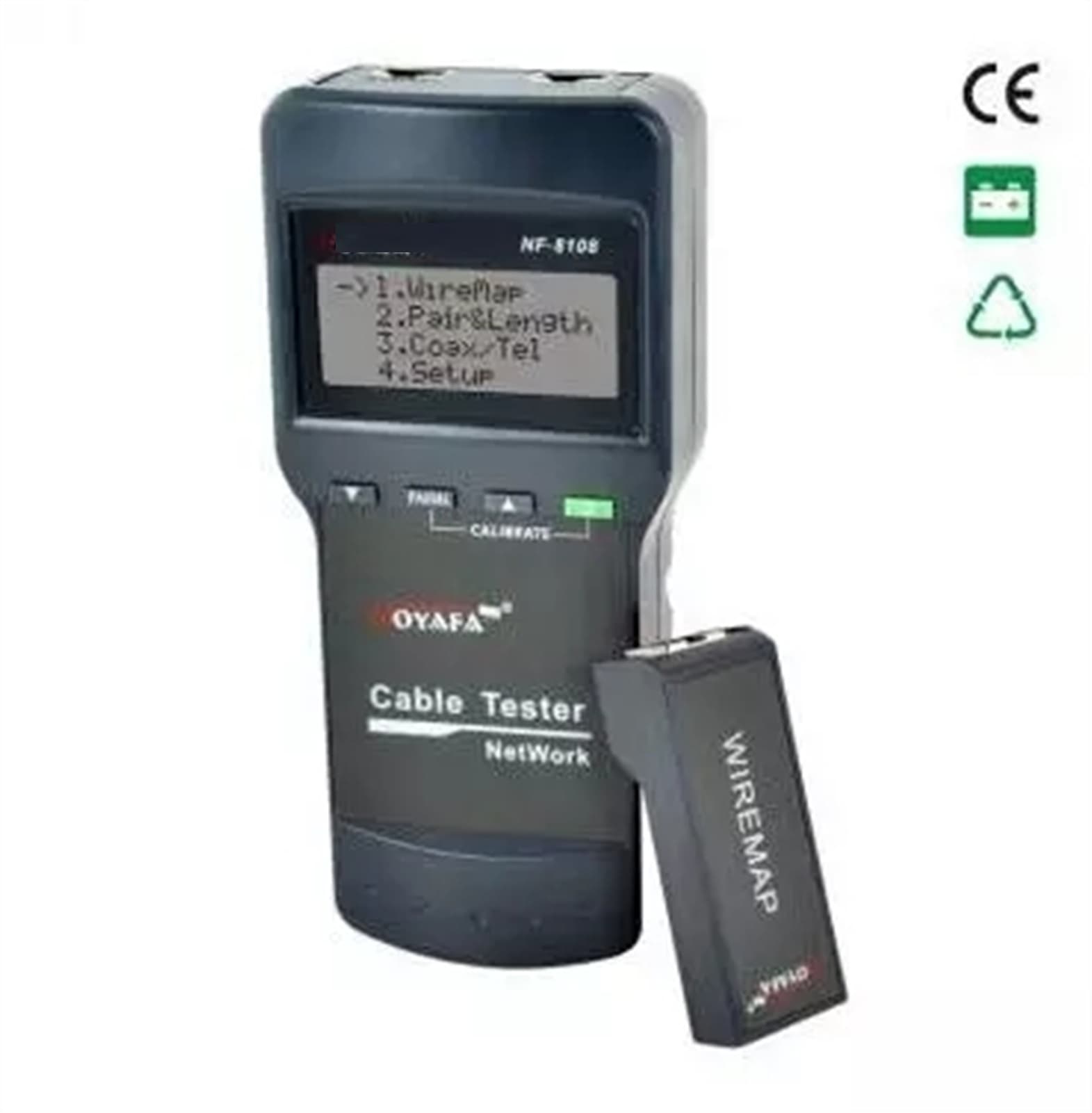

NF-8108A Cat.5E/ 6E UTP STP Network Cable Tester Check Wiring Error 5E 6E Wire Test ,Fast Responses

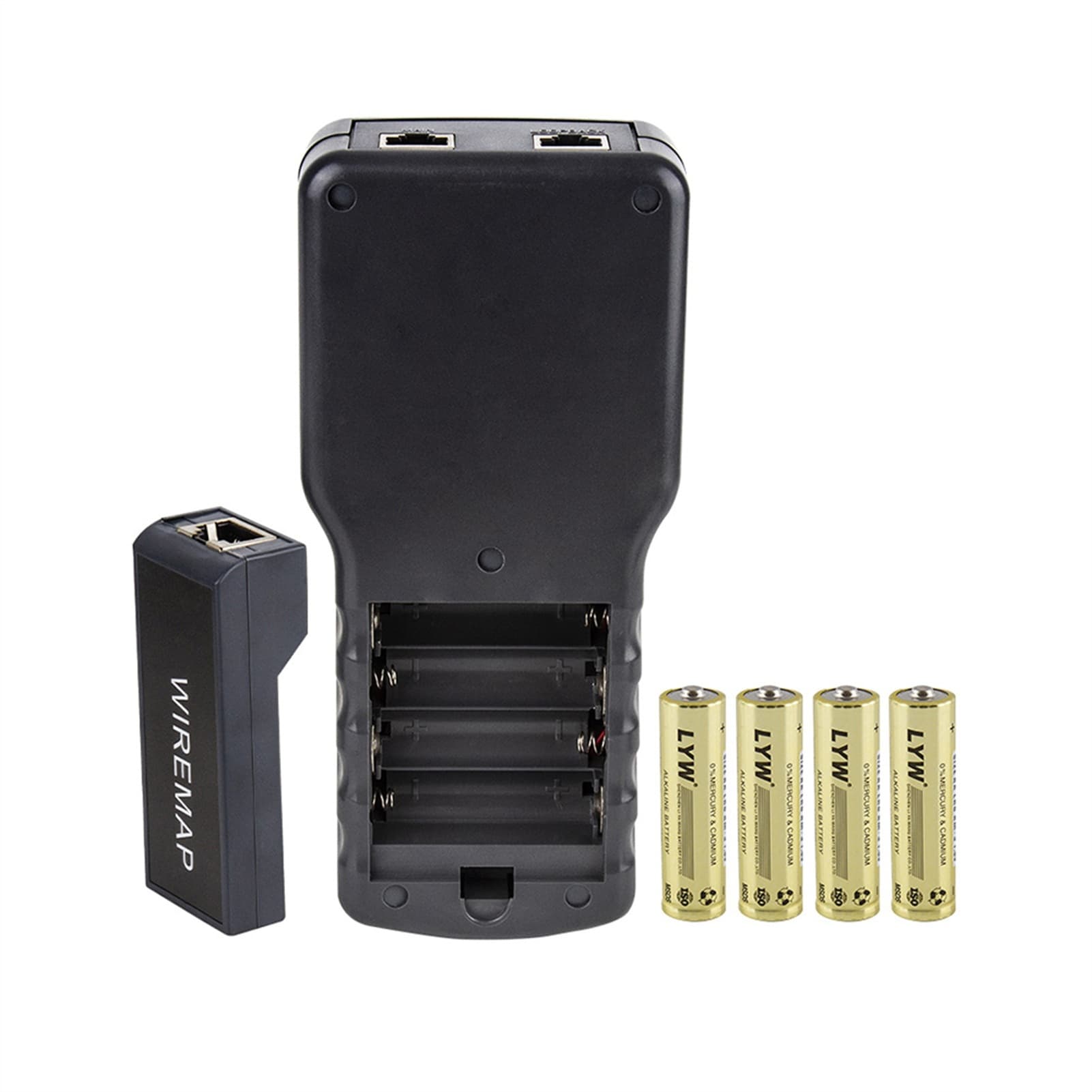

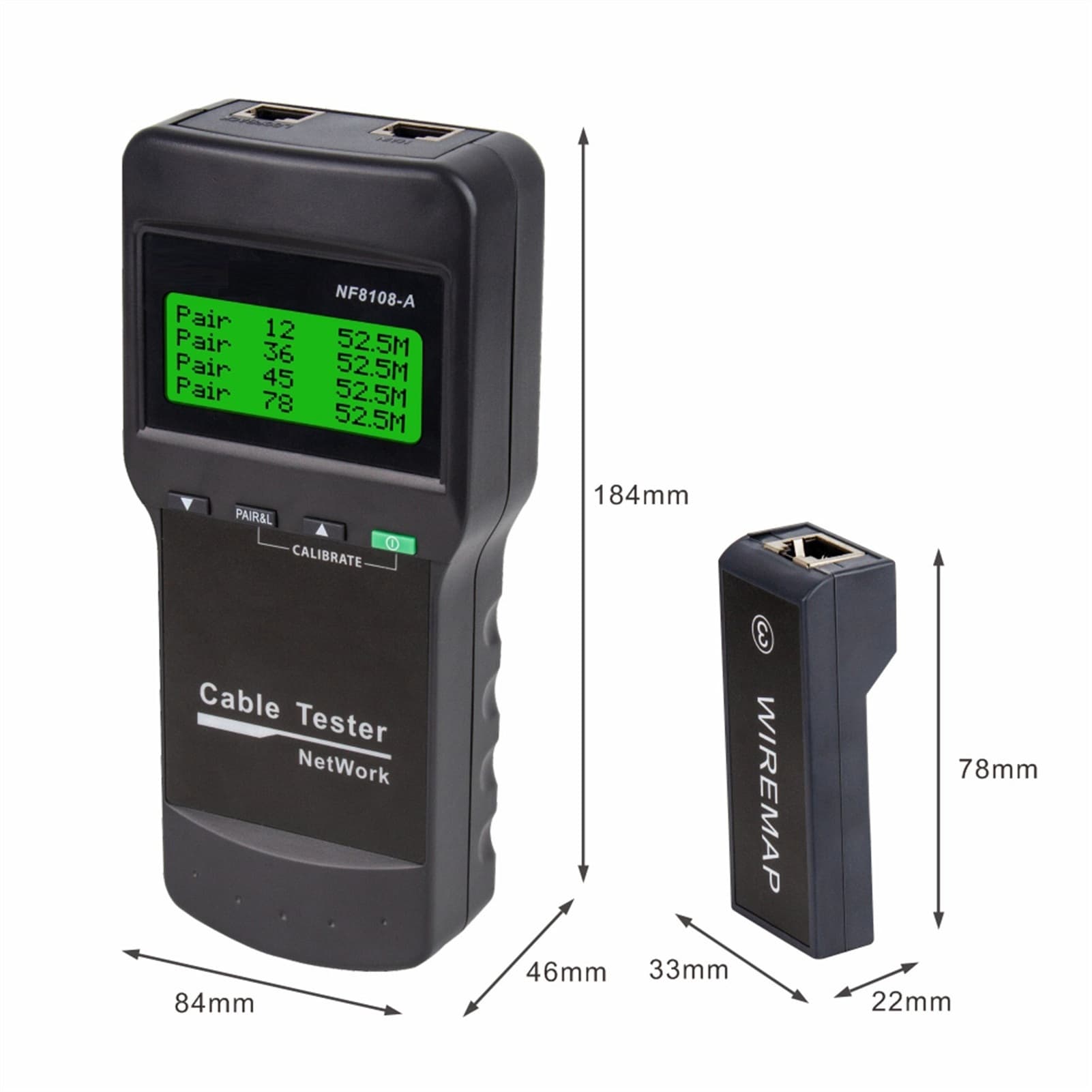

Features: 1. Measure network cable length and determine the distance of open and short circuit. 2. Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection . 3. Portable unit with long battery life (wait-case 50 hours). 4. Automatically time-delay shut off. 5. Self-checking and automatically compensate any change in battery capacity or ambient temperature. 6. With backlight function. Technical indexes: NF8108-A Transmitter specifications Indictor LCD 53x25 mm Tone frequency 225 Hz Max. distance of cable map 300m Max. working current Less than 70mA Compatible connectors RJ45 Faults LCD display LCD display Low battery display LCD ( 6.5V) Voltage protection AC 60V/DC 42V Battery Type DC 4x1.5v Dimension(LxWxD) 184x84x46mm NF8108-A Remote unit specifications Compatible connectors RJ45 Dimension(LxWxD) 78x33x22mm Attention: 1.Don't connected high voltage lines to avoid buring out the machine. 2.Put into the right place to avoid hurting others,because of the sharp part. 3.Connected the cable to the right port. 4.Read the user manual before use it. Package Include: 1 X transmitter ( battery is not include ) 1 X remote Related Products: network cable tester,cable tester,ethernet tester,network & cable testers,ethernet cable tester,ethernet testers,ethernet wire tracer,fiber tester,coax cable tester,cable tracer,network tool kit,network tools,ethernet tester tool,poe tester
