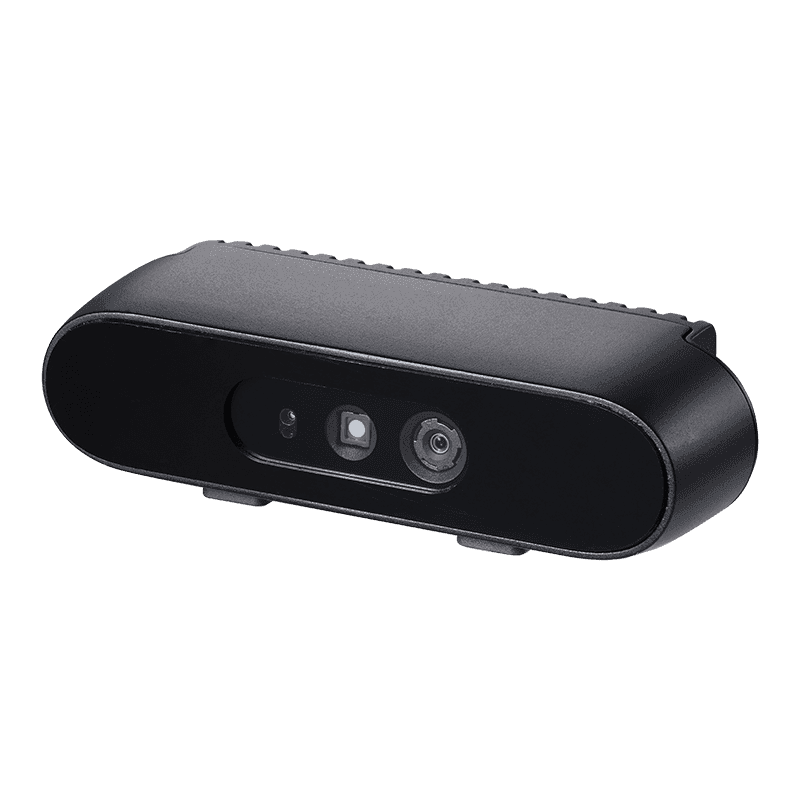

Orbbec Gemini 336 Depth Camera — Active & Passive Stereo

The Orbbec Gemini 336 is the newest addition to Orbbec's Gemini 330 series. Leveraging the strong depth capabilities of the Gemini 335, the Gemini 336 improves active infrared imaging by filtering out the visible light spectrum to provide more stable and accurate depth data in difficult lighting—such as indoor reflective surfaces that create glare, high-contrast scenes with shadows, and intense outdoor illumination. Highlights: Stable infrared imaging; Multimodal perception; Compact form factor; Operating Environment: Indoor / Outdoor. Technical specifications: - Depth Technology: Active & Passive Stereo - Depth Range: 0.10 - 20m+ - Ideal Range: 0.26 – 3.0m - Baseline: 50 mm - Spatial Precision: ≤ 1.5% (1280 x 800 @ 2m & 90% x 90% ROI) - Depth Field of View: 90° x 65° @ 2m (1280 x 800) - Depth Resolution & Frame Rate: Up to 1280 x 800 @ 30fps - Depth Shutter Type: Global Shutter - RGB Field of View: 86° x 55° - RGB Resolution & Frame Rate: Up to 1920 x 1080 @ 30fps - RGB Image Format: YUYV & MJPEG - RGB Shutter Type: Rolling Shutter - IMU: Supported - Camera Driver: UVC - SDK: Orbbec SDK Physical, power and interfaces: - Power supply: DC 5V & ≥ 1.5A - Power Consumption: ＜ 3W - IR Filter Cover: IR-Pass - Connector: USB 3.0 & USB 2.0 Type-C - Protection: IP5X - Multi-device Sync port: 8-pin - Operating Temperature: -10 - 45℃ - Weight: 99g - Dimensions (W × H × D): 90 mm x 25 mm x 30.7 mm Mounting / installation: - Bottom: 1x 1/4-20 UNC, Max Torque 4.0 N.m - Back: 2x M3, Max Torque 0.4 N.m Order fulfilled through Computech International, shipping from Long Island, NY.
