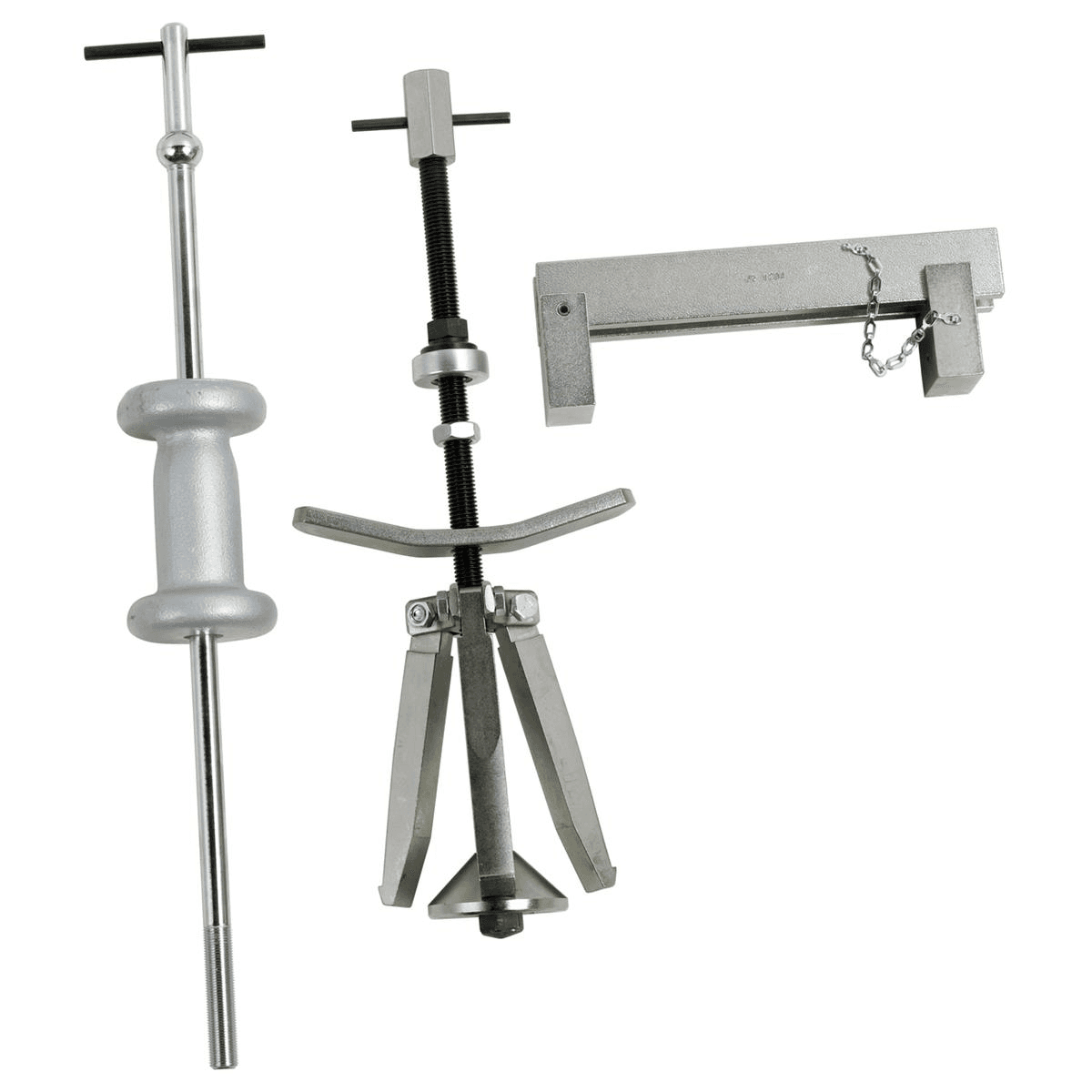

OTC Tools & Equipment 1205 Universal Puller for Wet-Type Sleeves

This tool will remove cylinder sleeves faster than ordinary pullers because it requires very little setup time. Cone adjustment positions the puller jaws quickly, whereby the locking bar is tightened. To aid in breaking "frozen" sleeves loose, adjustable bridge is positioned on the cylinder block and the bearing-mounted forcing nut is tightened. Next, the bridge is removed and slide hammer assembly is attached, and with a few sharp hammer blows, the sleeve is pulled. In most cases, job time will average less than two minutes per cylinder. . Special adapters are unnecessary. Adjustable jaws fit sleeves 3 - 6-1/2 in. in diameter. Also features a 5 lb. slide hammer to help bust loose even the most stubborn sleeves. Includes Universal Puller for Wet-Type Sleeves - 1205 Specifications
