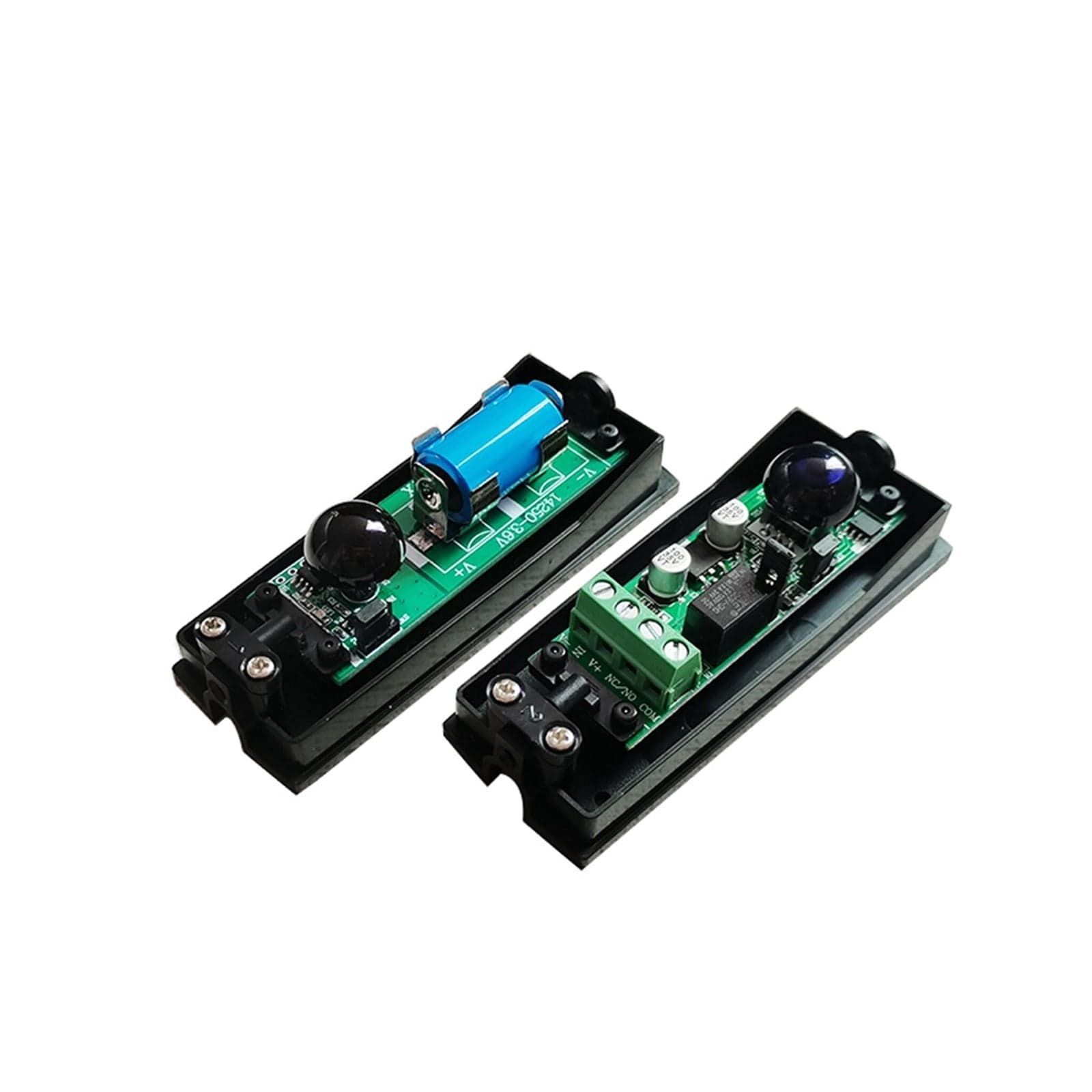

Outdoor 3.6V Battery-Powered IR Photocell Beam Sensor for Automatic Gates & Garage Doors

Compact outdoor infrared photocell designed for automatic gate and garage door control. Working voltage — Transmitter: 3.6V (14250lithium battery, battery not included); Receiver: 12-24V DC. Power consumption: transmitter working current < 85µA; receiver 30mA (24V DC). Optical performance: photocell wavelength 940nm, angle of emission ±5°, receiving range > 12m. Relay output rated for 1A/30VDC. Physical dimensions: 100*40*35mm.
