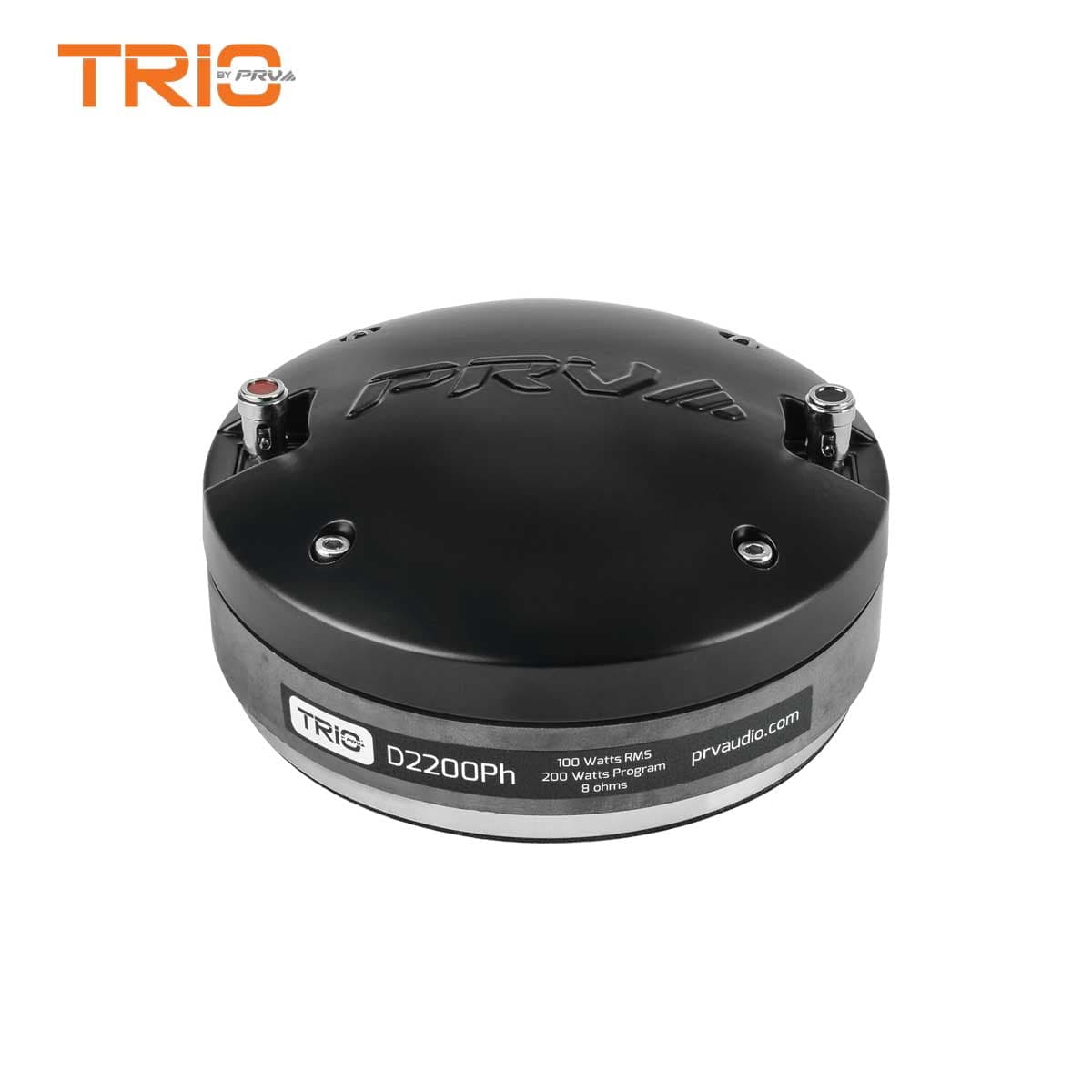

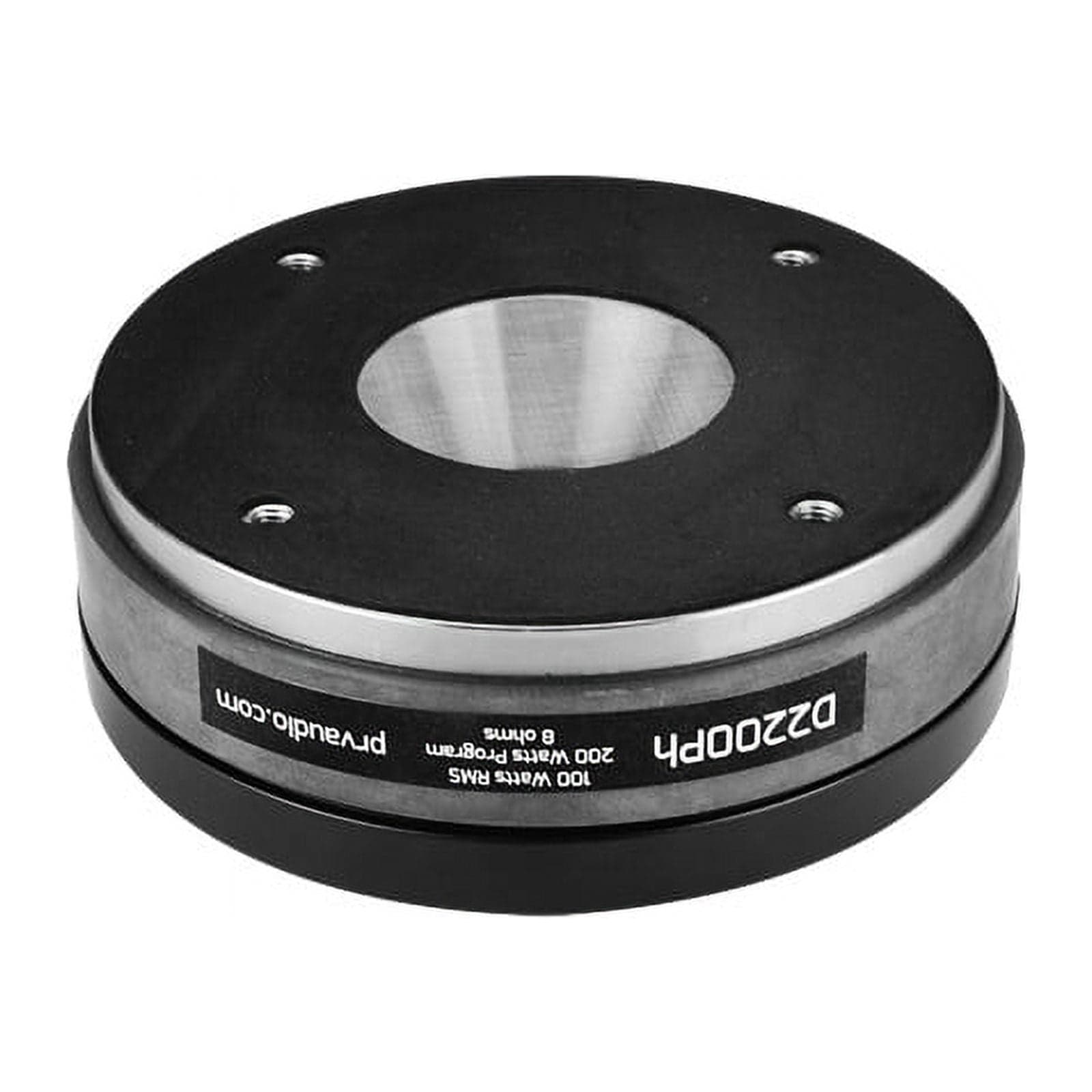

PRV AUDIO D2200Ph 2" Exit Phenolic Compression Driver — High-Output Midrange/Vocal Driver

Chosen by extreme SPL car-audio competitors in South America and by DJs driving speaker systems for crowds in the thousands, the PRV AUDIO D2200Ph is a compact, high-output compression driver built for vocals and midrange. It features a low-mass CCAW voice coil combined with a phenolic diaphragm to deliver a natural response across 800 to 9,000 Hz with 107 dB sensitivity. The driver’s small 5.24" diameter allows easy front-mount installation without detaching it from WGP14-50 horns and provides ample clearance for the 5.65" baffle cut required by PRV 2" exit WGP14-50 Series horns. Developed to address spacing and weight constraints, TRIO by PRV employs Brazilian phenolic technology optimized for vocal reproduction. The phenolic diaphragm is attached to a 2" diameter copper-clad aluminum wire with a Kapton® former and supports 500 Watts RMS musical power handling when used with the recommended high-pass settings: PRV Digital Signal Processor DSP 800 Hz at 12 dB per octave filter Crossover / BT12 650 Hz at 18 dB per octave filter Crossover / BT18.
