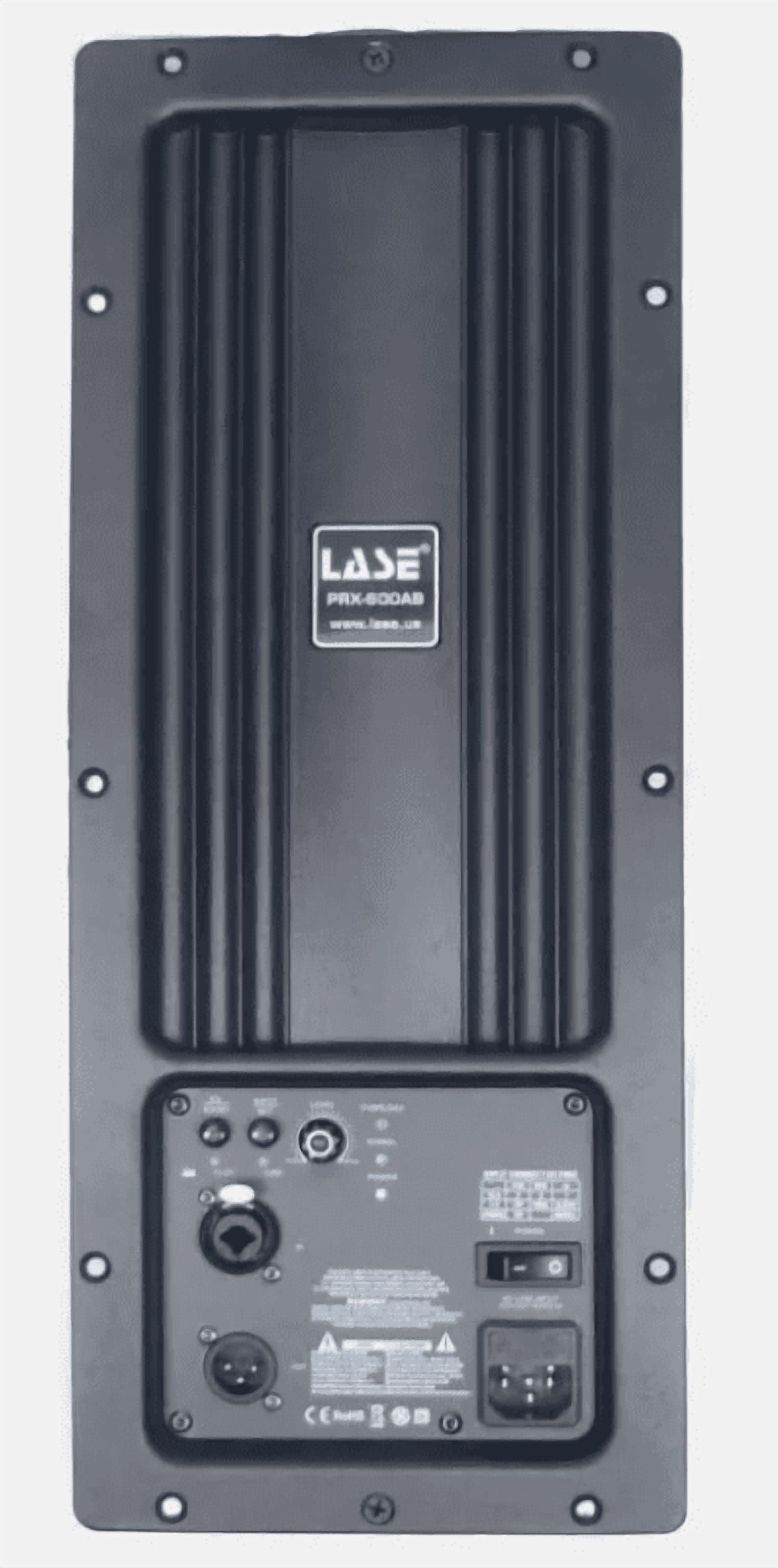

PRX 600AB Amplifier Module — for PRX 615M & 612M Powered Speakers

Replacement PRX 600AB amplifier module engineered for PRX 615M and PRX 612M powered speakers. This Class D module delivers robust, bi-amped power with separate LF and HF outputs. Power Output: 500W RMS (overall); 1000W (Peak). LF: 400W RMS (800W Peak) @ 2 Ω. HF: 100W RMS (200W Peak) @ 8Ω. Frequency Response (± 0.3dB,1W/8Ω): 54 Hz - 18 kHz. Crossover Frequency: 1.8 Khz. THD: 20 Hz - 20 kHz for 1 W <0.1%. Signal-to-Noise Ratio: >135 dBA. Channel separation (Crosstalk) at 1 kHz: >70 dB. Input Connector (per channel): 3-pin XLR, 1/4" phono, electronically balanced. Output Connector: Balanced Male 3-pin XLR ("Mix Out"). Operating voltage: The voltage can be shifted by the panel power switch from 100-127V 60 Hz to 220-240V 50Hz. Dimensions (L×W×D): 18" x 7.25" x 3.5" (457.2mm x 184.15mm x 88.9mm). Packing dimension: 19" x 8.25" x 4.5" (482.6mm x 209.55mm x 114.3mm). Net weight: 7.5lbs (3.4Kgm). Gross weight: 8lbs (3.62Kgm).
