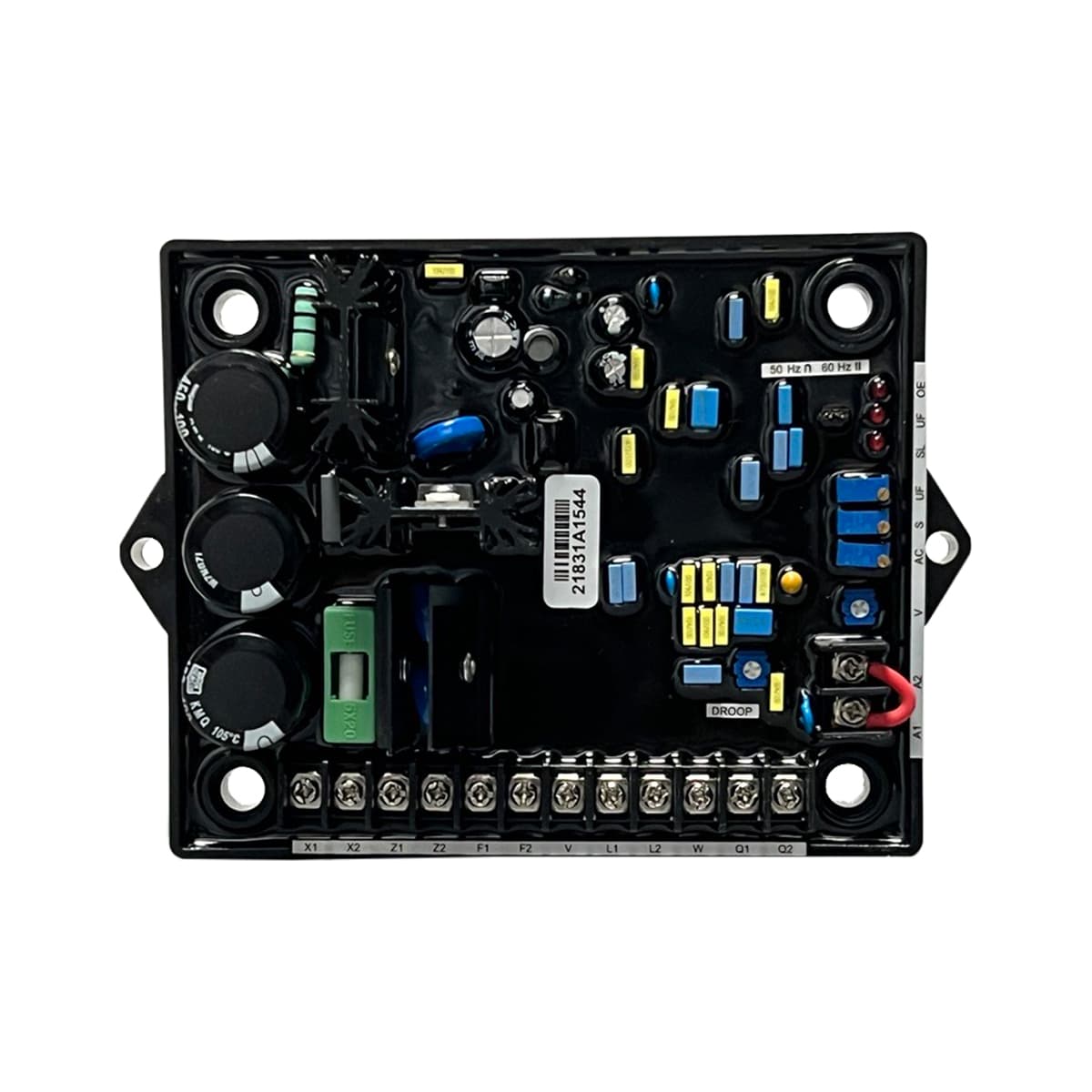

R180 AVR - Automatic Voltage Regulator | Generator Automatic Voltage Regulator Stabilizer Control Module Brushless Genset

Under frequency protection：48.5 Hz/58.5 Hz for 50 Hz/60 Hz operation Short circuit capability: 3 x Irated for 10 seconds ( AREP or PMG excitation) PMG input power：Continuous: 240V RMS +10% Momentary 5 s: 240V RMS + 30 Up to 240 Hz Regulation：± 0.5% at AVR sensing terminals Excitation current：6A DC continuous 9A for 5 seconds (short-circuit operation) 2 Year Warranty!
