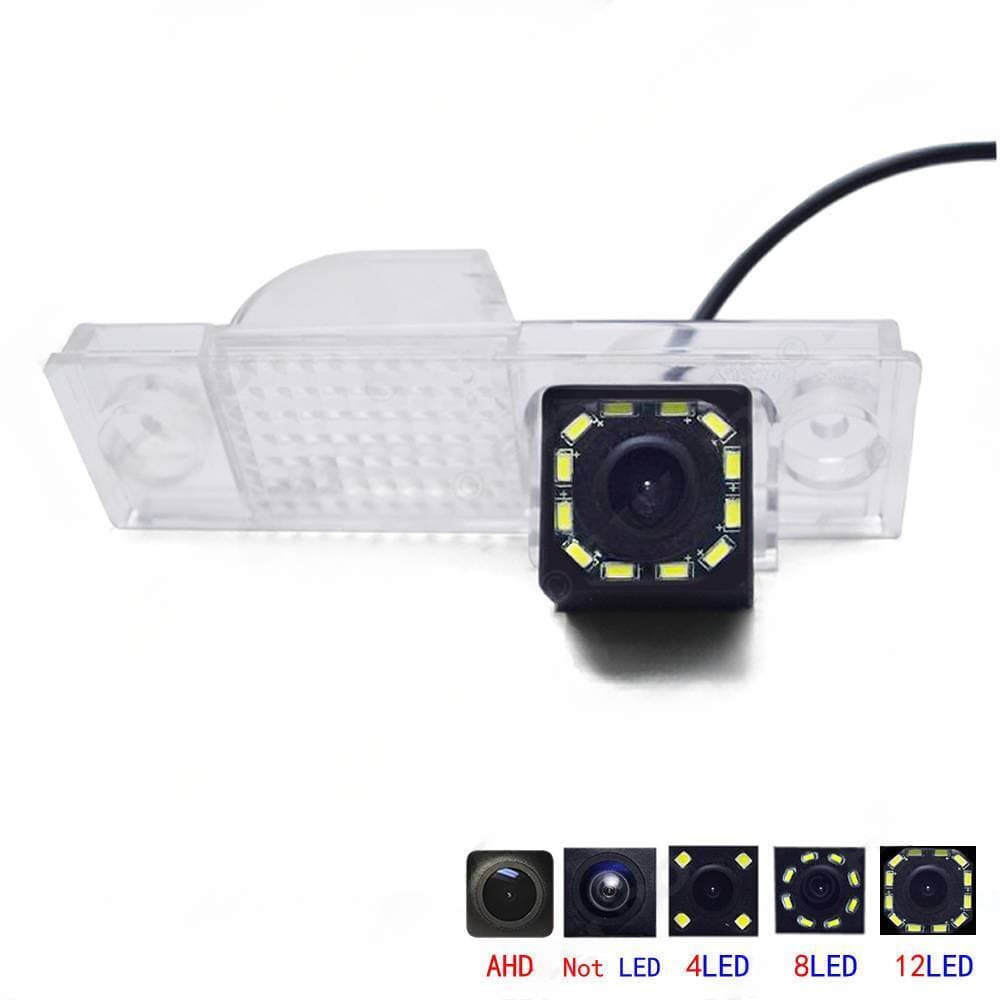

Rearview / Reversing Camera for Guangqi Trumpchi GS5 GS6 GA5 G6 — HD CCD, IP67/IP68

Overview: High-definition rearview camera designed for Guangqi / GAC Trumpchi GS5, GS6, GA5 and G6 models. Built for reliable reversing assistance with wide-angle coverage and night-vision capability. Compatibility Suitable for GAC Trumpchi GS5 GS6 GA5 G6 Key specifications - Image sensor: HD CCD - Lens material: 100% glass - Effective pixels: 640 * 480 pixels - Horizontal resolution: 480TV cable - Field of view: 170 degrees (diagonal), 138 degrees (H), 125 degrees (V) - Night Vision: Support - Lens with LED light options: AHD/without LED light/with 4LED/8LED/12LED/starlight/fisheye - Parking Guide Line: Support - Wire Switch: No - Reversing Image: Mirror Image - Mirror/Original Switch: No - TV format: NTSC - Video output: CVBS RCA connector (1.0VP-P, 70OHM) - Minimum illumination: 0.01 Lux/F = 1.2 (0 Lux with infrared) - Power supply: DC12V - Power consumption: 120mA - Operating temperature: -20 ° C to + 75 ° C, RH 95% MAX - Storage temperature: -40 ° C to + 80 ° C, RH 95% MAX - Waterproof grade: IP67/IP68 This compact rear camera provides a mirror-image reversing view, reliable low-light performance, multiple LED/lens configurations, and robust environmental protection for everyday driving and parking assistance.
