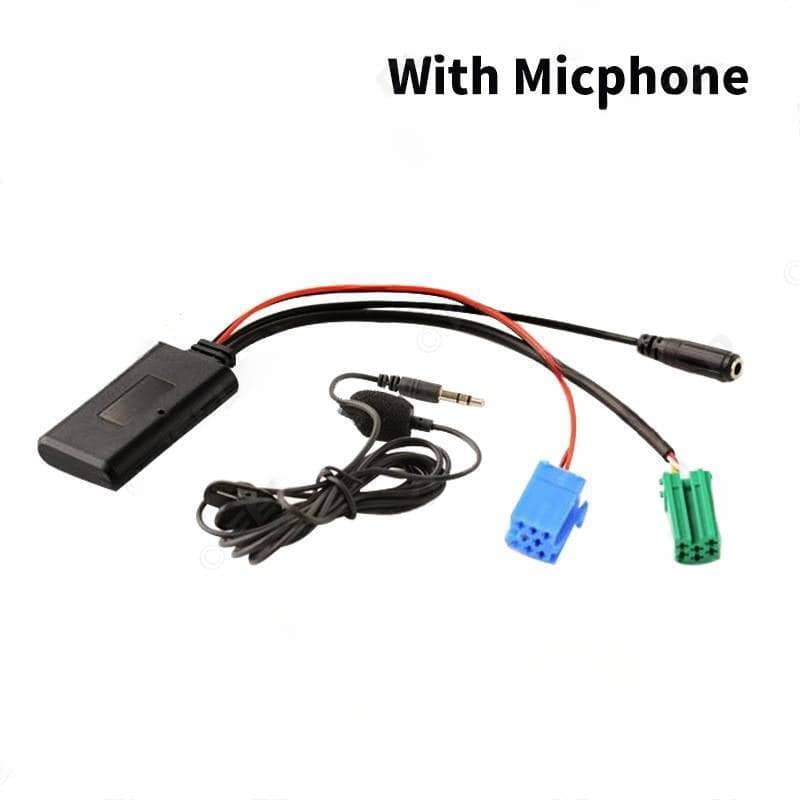

Renault 2005-2011 14-pin AUX Bluetooth Audio Receiver Cable with Microphone

Overview: 14-pin AUX input cable with an integrated Bluetooth module designed for Renault CD players (compatible with models from 2005-2011). Adds wireless audio streaming and optional microphone support to factory radios that have an AUX-capable socket. Installation: Insert the 14-pin connector into the back of the radio. Connect the power leads: red to 12V+ and black to 12V-. Switch the head unit to the Auxiliary input and pair your Bluetooth-enabled phone or MP3 player to begin streaming audio. Bluetooth and audio compatibility: Uses Bluetooth version 5.0 and is backward compatible with Bluetooth 2.0, 3.0 and 4.0. Supports common compressed and high-resolution formats including MP3, WMA, WAV, FLAC and also DSD large-capacity transmission. App audio such as QQ Music, Kugou, movie soundtracks and navigation prompts can be routed to the car stereo (audio only; no video transfer). Product specifications: Type: Automotive AUX Input Cable; Material: Plastic + Copper; Color: Black; Microphone cable length: 150cm; Voltage input: 5V-12V DC; Working current: 600mA; Standby current: 20mA; DAC resolution: 20bit; Total Harmonic Distortion: 0.05%; Signal to noise ratio: 90dB; Frequency response: 20Hz-20KHz; Operating temperature: -35 ° C to + 75 ° C. Note: Microphone support is optional and dependent on installation and radio compatibility.
