RJ45 RJ11 Wire Check Network Cable Continuity Tester Wiremap Lan Cables LED Light ,Fast Responses

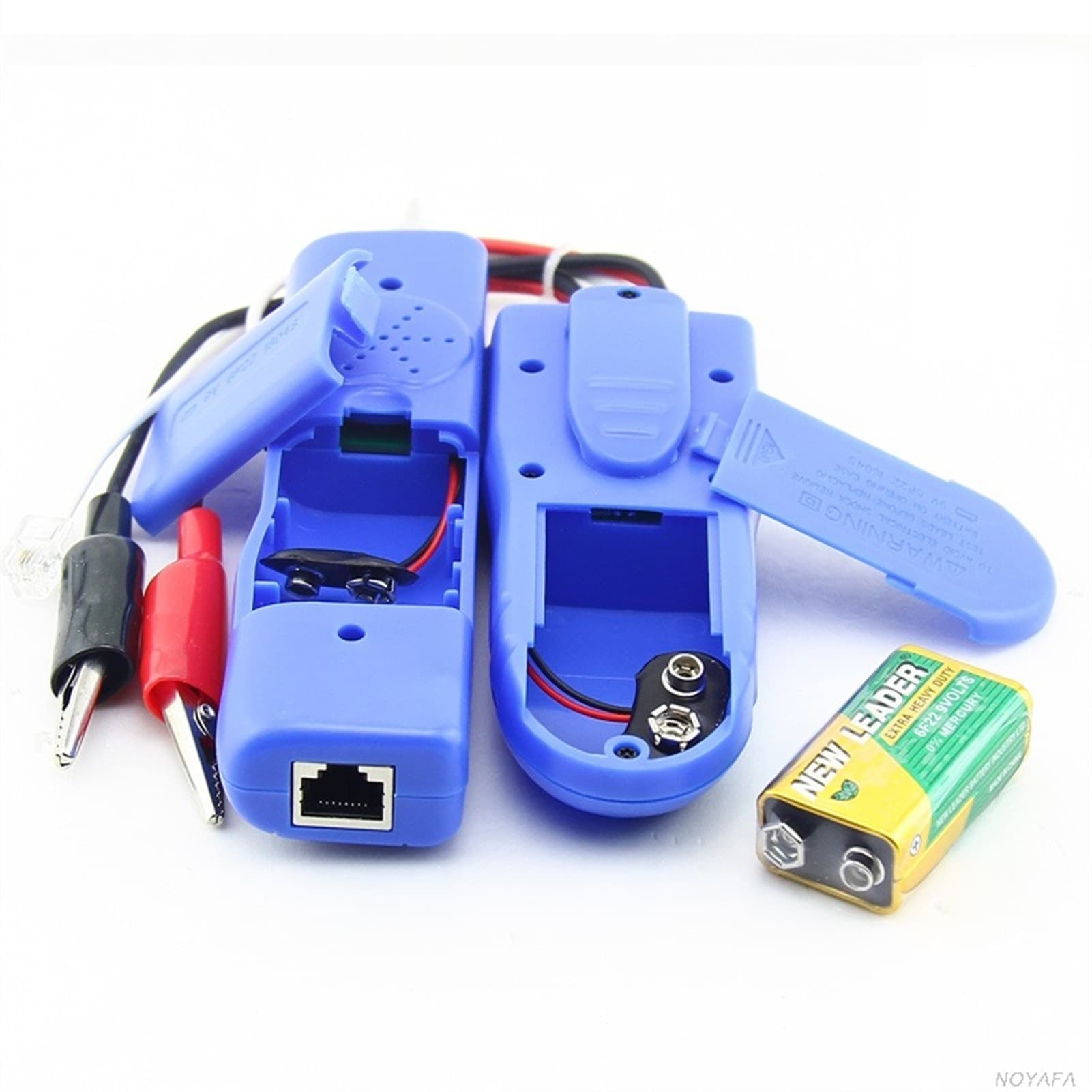

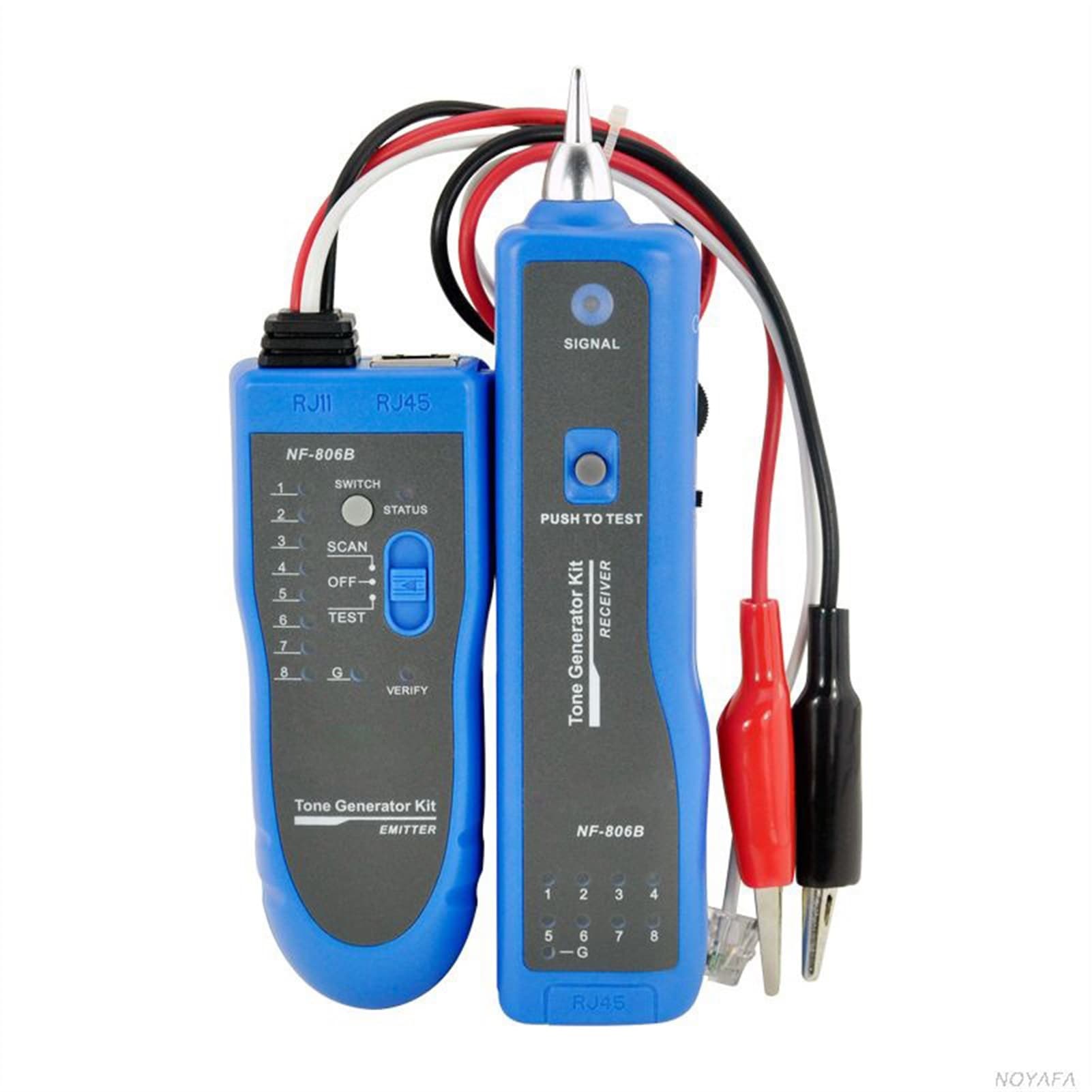

Main functions: 1. Check and find the needed cables among so many cables in one time. 2. Continuity test - wiremap for Lan cables. 3. Diagnose the breakage, open, short, cross. 4. Visible indication: pin-to-pin cable map for individual cable (not by pairs). 5. Transmitter with RJ11 connector and pair of alligator clips. 6. Low Voltage alarm function. 7. Earphone permits use in noisy environments. 8. LED light assists use in dark corners. Technical parameters: NF-806 Transmitter specifications Tone frequency200Hz Max. distance of transmissionUp to 2 kilometers Max. working currentLess than 10mA Volume Regulate FunctionAudio volume level control Tone mode2 Tones, adjustable Compatible connectorsRJ45, cable clip with RJ11 connector Max. signal voltage8Vp-p LED lights displayWiremap, tone, tracing Voltage protectionAC 60V/DC 42V Battery TypeDC9.0V(NEDA 1604/6F22) x 1pc Dimensions (LxWxD)15 x 3.7 x 2cm NF-806 Receiver specifications Frequency200kHz The Max. working currentLess than 30mA Earphone jack1 Battery TypeDC9.0V(NEDA 1604/6F22) x1pc Dimensions (LxWxD)12.2 x 4.5 x 2.3cm Attention: 1.Don't connected high voltage lines to avoid buring out the machine. 2.Put into the right place to avoid hurting others,because of the sharp part. 3.Connected the cable to the right port. 4.Read the user manual before use it. Package Include: 1 X NF-806 Blue ( Battery is not include ) Related Products: network cable tester,cable tester,ethernet tester,network & cable testers,ethernet cable tester,ethernet testers,ethernet wire tracer,fiber tester,coax cable tester,cable tracer,network tool kit,network tools,ethernet tester tool,poe tester
