Rockville W10K9D2 V3 K9 10" Car Subwoofer DVC 2-Ohm — 3200W Peak / 800W RMS

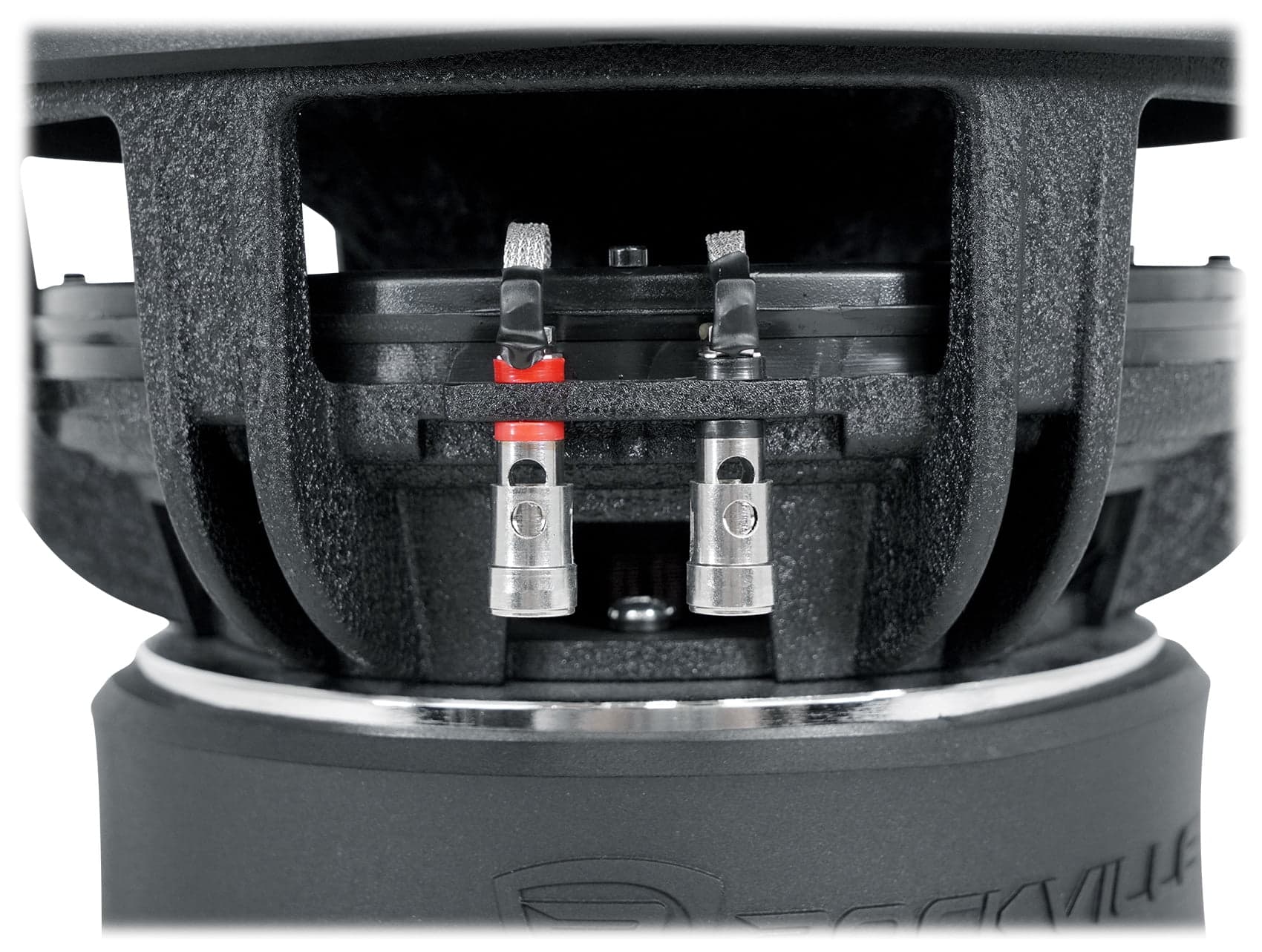

Overview: Rockville W10K9D2 V3 K9 Series 10" dual 2-Ohm car subwoofer engineered for high output and durability. Power Ratings: Peak Power Handling: 3200 Watts. Program Power Handling: 1600 Watts. CEA Rated RMS Power Handling: 800 Watts. Voice Coil & Motor: Equipped with 3" 4-Layer Black Aluminum Voice Coils wound with OFC wire, Made in USA. The voice coil is stable up to 240 degrees celcius. Motor assembly features a double stacked 164 Oz high quality magnet, a high BL magnetic motor gap, a vented hole on the T-yoke for improved heat dissipation, plus a 10mm T-Yoke + 8mm washer. Basket & Aesthetics: Cast aluminum basket finished in black sanded texture for reduced weight and improved efficiency. Custom rubber boot magnet covers protect the magnet and add a polished look. Two chrome-plated binding post terminals and a custom Rockville mounting gasket provide a secure, air-tight installation. Cone, Surround & Suspension: Black non-pressed paper cone offering ultra-stiff construction for better power handling. Thick foam surround minimizes distortion while red stitching reinforces the cone for extended life. New ultra-stiff PolyPropylene (PP) dustcap. Nomex spider delivers superior tear resistance and long-term reliability compared to cotton or poly-cotton spiders. Construction Details: We use the highest grade black glue rated for extremely high temperatures to improve power handling. Impedance: Dual 2-Ohm voice coils. Performance Specs: Frequency Response: 37.8 Hz - 1.5K kHz. Sensitivity: 85dB. Xmax is 27MM. XMAX: 26 MM. Enclosure Recommendations: Sealed Enclosure Volume:0.55 0.95 Cubic Feet. Vented/Ported Enclosure Volume:1.2 1.8 Cubic Feet. Mechanical & Mounting: Cutout Diameter: 9.37 inches. Mounting Depth: 6.3 inches. Gap Plate Inside Diameter: 95mm (3.54 inches). Gap Plate Outside Diameter: 190mm (7.5 inches). Gap Plate Thickness: 25mm (1 inch). Yoke Outside Diameter: 180mm (7.1 inches). Yoke Thickness: 10mm (0.4 inches). Yoke Pole Diameter: 75mm (3 inches). Weight & Packaging: Weight: 27.55 Lbs. Shipping Weight: 30.85 Lbs. Shipping Box Dimensions: 13.58" x 13.58" x 12.6" Inches.
