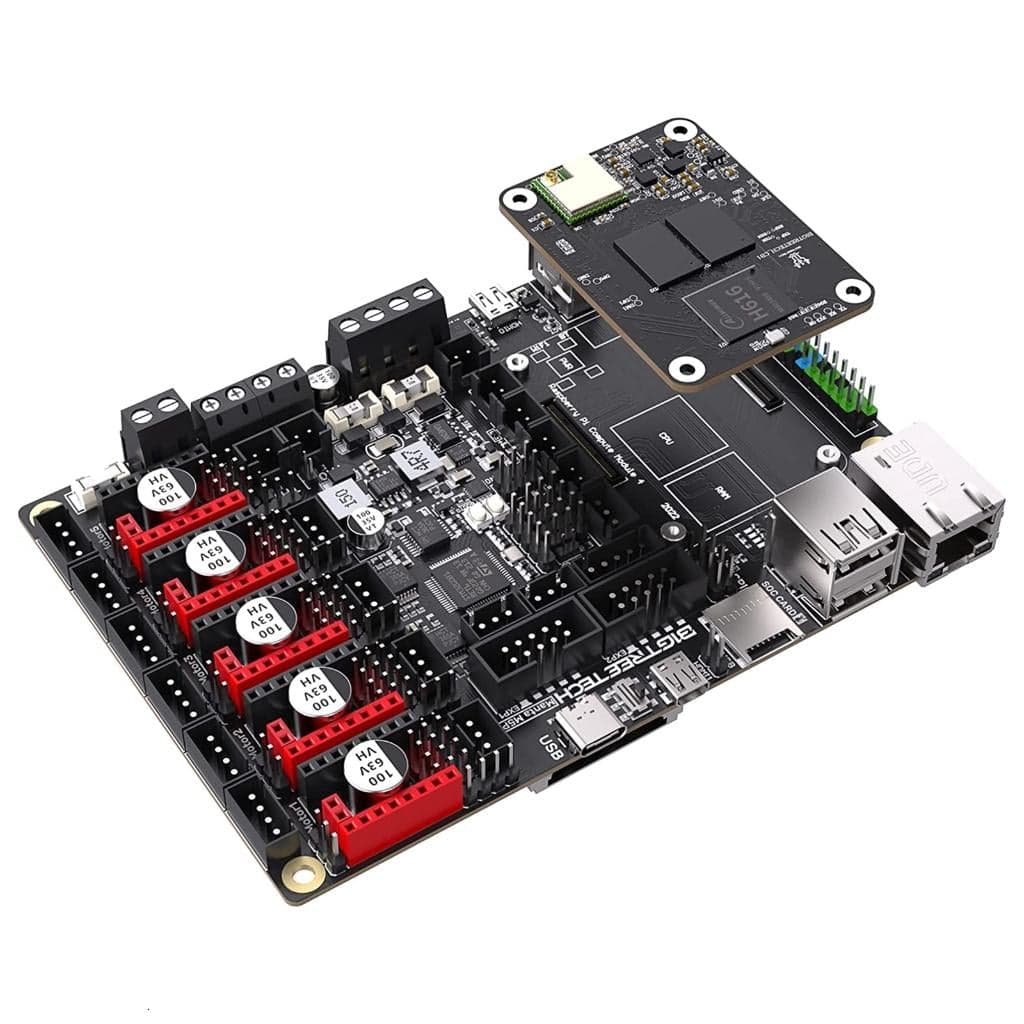

SIEYIO BIGTREETECH Manta M5P V1.0 + CB1 V2.2 Silent Control Board — Linux-Ready for Klipper

Overview: This set combines the BIGTREETECH Manta M5P V1.0 control board with the CB1 V2.2 core board to provide a Linux-capable platform that can run Klipper. If the CB1 is not used, the Manta M5P can operate with Marlin firmware. CB1 Core Board Details: The BIGTREETECH CB1 features a quad-core architecture is 62bit ARM Cortex-A53 @ 1.5GHz processor with 1GB DDR3 RAM. It supports running Linux and Debian, is programmable, and offers stable, high-speed performance. Network options include Support 100M Ethernet +100M WIFI for connectivity. Onboard I/O and Display: The board includes an onboard HDMI interface so images can be transmitted to BIGTREETECH HDMI 5/HDMI7 Screen using only an HDMI cable. A SPI interface enables use with SPI touch screen panels for responsive control, and a Plug and Play USB Camera allows wireless monitoring of your 3D printing projects. Upgraded Hardware Features: Integrated SPI and UART mode of TMC driver and DIAG pin are provided and are easily configurable with jumpers. The design adopts a replaceable fuse for straightforward service and High efficiency Mostfet to reduce heat generation. MCU firmware can be updated via an SD card or by using DFU via Klipper's make flash command. Support: If you encounter any issues with the BTT Manta M5P+CB1 Core board combo sets, contact us at any time — we have a professional technical supports team ready to assist.
