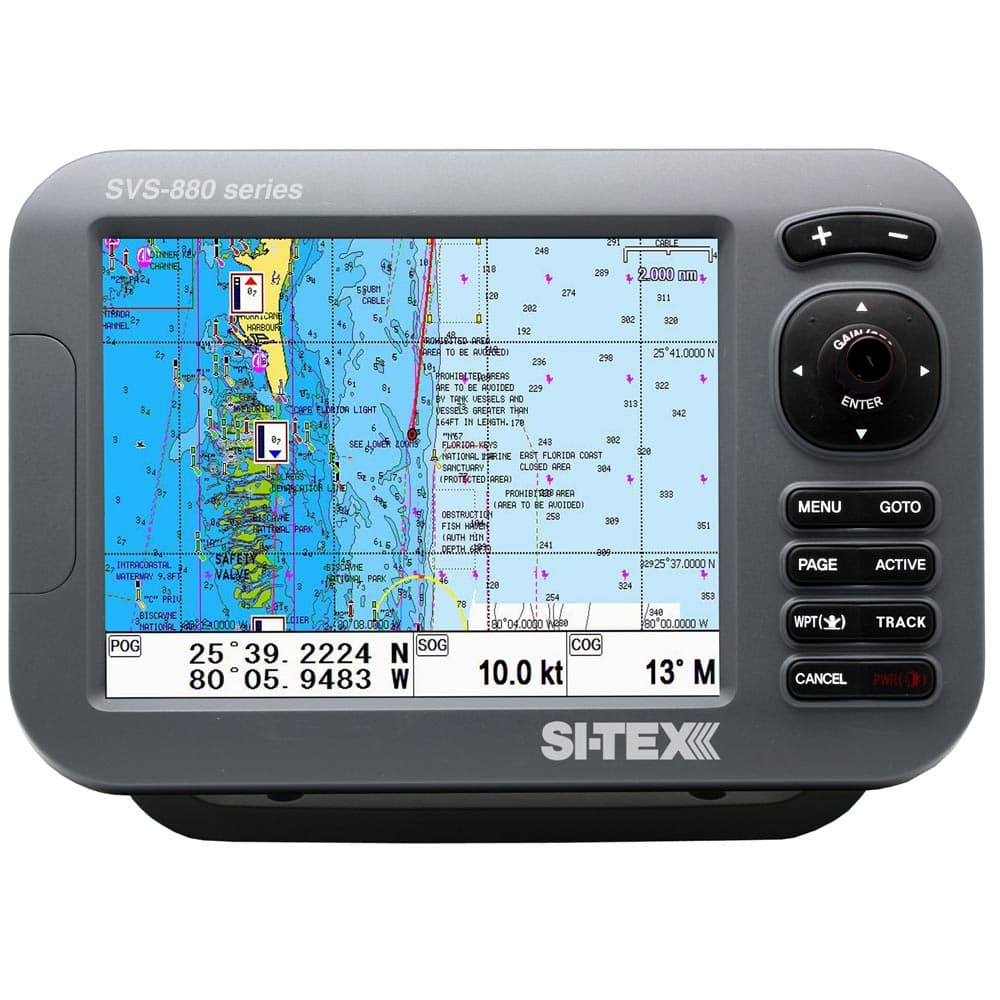

Sitex SVS-880C 8" Chartplotte With External Antenna

Standalone 8" Chartplotter System with Color LCD, Internal & External GPS Antenna & C-MAP 4D Card The SI-TEX SVS-880CE+ is a powerful big-screen performer designed to fit every boat and budget This compact chartplotter and chartplotter/sonar system delivers the goods for any vessel, from center console skiffs to sailboats to light commercial boats Differences between SVS-880CE & SVS-880CE+ The SVS-880CE+ has an updated Android processor and it only uses C-Map 4D cartridges. Features: 8" high-resolution color LCD and compact case 52-channel GPS "Dual fuel" charting the C-MAP and Navionics cartography Global GPS compatibility Brilliant LED backlighting for daylight readability Easy, intuitive operation and control Video input for underwater and on-deck cameras Weather protector cover included General Specifications: Display Screen SVS-880CE+: 8-inch Color LCD with LED backlight Resolution SVS-880CE+: SVGA (800 x 600 pixels) Power Supply: DC 12V-36V(±10%) SVS-880: 4W(without sonar)/ 6W(with sonar Operating Temperature: Display Unit -15 degrees C to +50 degrees C, Antenna Unit -25 degrees C to +70 degrees C Performance Standard: IMO Resolution MSC.112(73) Chartplotter Specifications: Display Method: Mercator Projection Display Mode: True motion / N/S/E/W up / Course up / Head up Latitude Limits: Between 85 degrees N to 85 degrees S Map Scale: 0.05nm to 1500nm Map Datum: WGS-84 6 Waypoints: 20,000 points *Total of 16 colors and 16 icons are selectable for each point with a name tag (6 alphanumeric characters) Track Points: 50,000 points (2 types) Route: Max capacity 100 Routes *20 WPTs per each Route. Each with name tags (8 alphanumeric characters) Draw Point: 1,000 points Area Name: 1,000 points Chart Data: Standard w/Navionics Gold C-MAP MAX optional Output Data: NMEA-0183 Input Data: NMEA-0183 Alarm Arrival, Anchor, XTE, Interval timer, Userline GPS Receiver Specifications: GNSS Receiver Capabilities: GPS - L1 C/A code, GLONASS - L1OF/, QZSS - L1 C/A code, Galileo - E1B/E1C/L1 Number of Channels: 52 channels Horizontal Positioning Accuracy: Autonomous 2.5m (CEP 50%) Sensitivity: Acquisition -148 dBm, Tracking -165 dBm, Reacquisition -162 dBm, Nav Update 1Hz, 5Hz) Support: DGPS, SBAS (EGNOS,WAAS, MASA, GAGAN) Sonar Specifications: Display Mode: Normal (single/dual-frequency), Bottom-lock. Bottom-zoom, A-scope Frequency 50 and 200 KHz (single or dual) Output Power: 600W Range Speed: 600W - 2.5m - 600m Image Speed: Fixed 8 speeds (4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, 1/32) and stop Rejection: Interference rejection: 3 levels, Noise rejection: 4 levels Function: Gain(auto/manual), Range(auto/manual), Shift(auto/manual), White/Black line Support speed sensor, Water temperature
