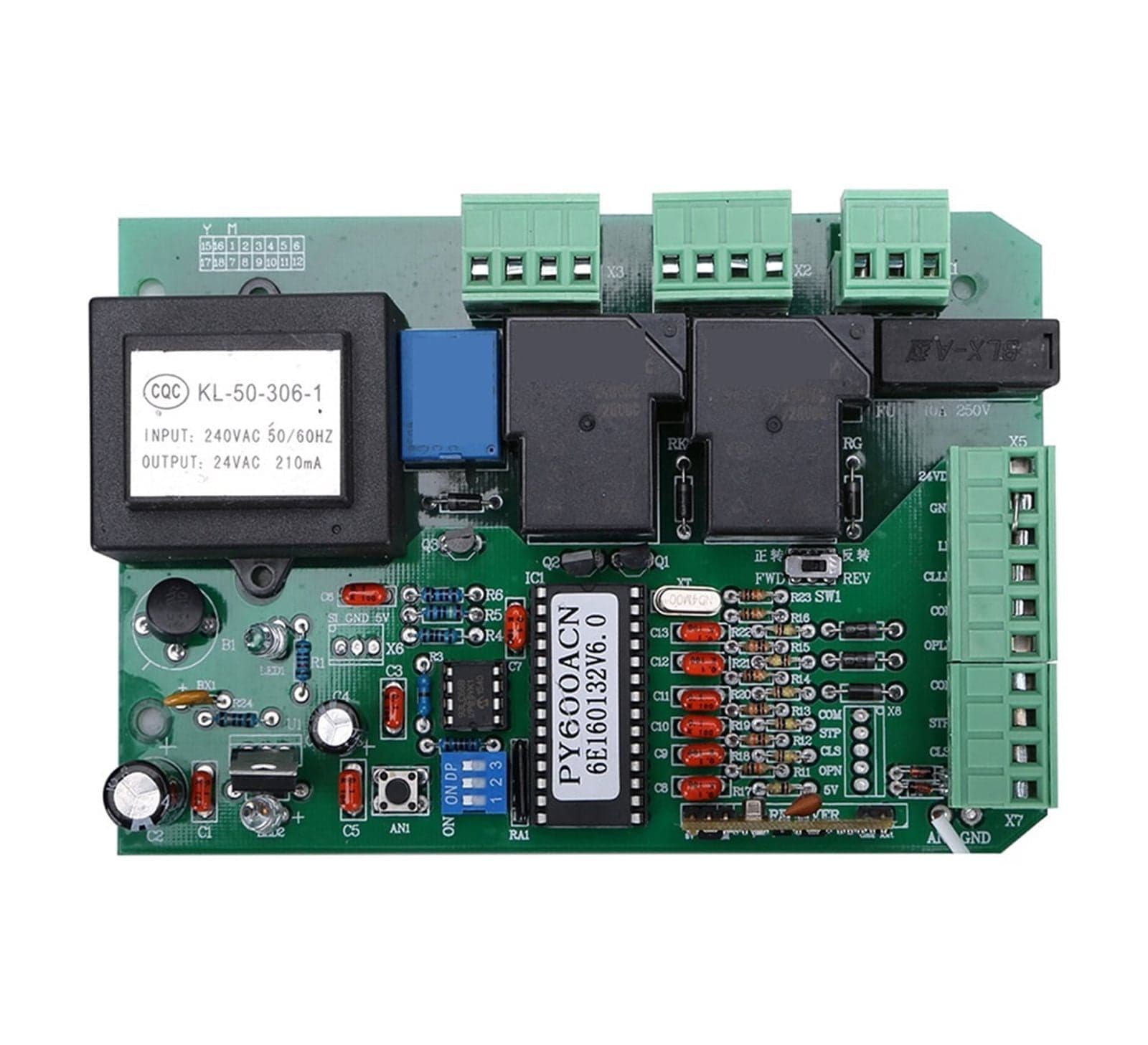

Sliding Gate Opener Controller Circuit Board — Magnetic Spring Limit Switch Motor Plate

Controller board for sliding gate openers featuring magnetic spring limit switch inputs. X5 terminal functions: +24VDC auxiliary power (+24VDC, current 50mA); GND (power ground); infrared photocell input (normally closed); CLLM (close limit switch); COM (limit switch common terminal); OPLM (open limit switch). X7 terminal assignments for manual controls: COM (control button common); STP (stop control button, normally open); CLS (door closing control button, N.O.); OPN (door open control button, N.O.). DIP switch settings: 1 — External push-button configuration: ON = three-button operation; OFF = single-button operation (in single-button mode the X7 CLS button can cycle the host through OPEN/STOP/CLOSE/STOP). 2 & 3 — Automatic shutoff time selection: 2 ON 3 OFF = automatic shutdown time 15s; 2 OFF 3 ON = automatic shutdown time 30s; 2 OFF 3 OFF = automatic shutdown time 45s; 2 ON 3 ON = no auto-off function.
