SNS-2V 2 Axis Digital Readout 2 Pieces 0-1000mm Linear Scale Encoder For Milling Lathe Machine

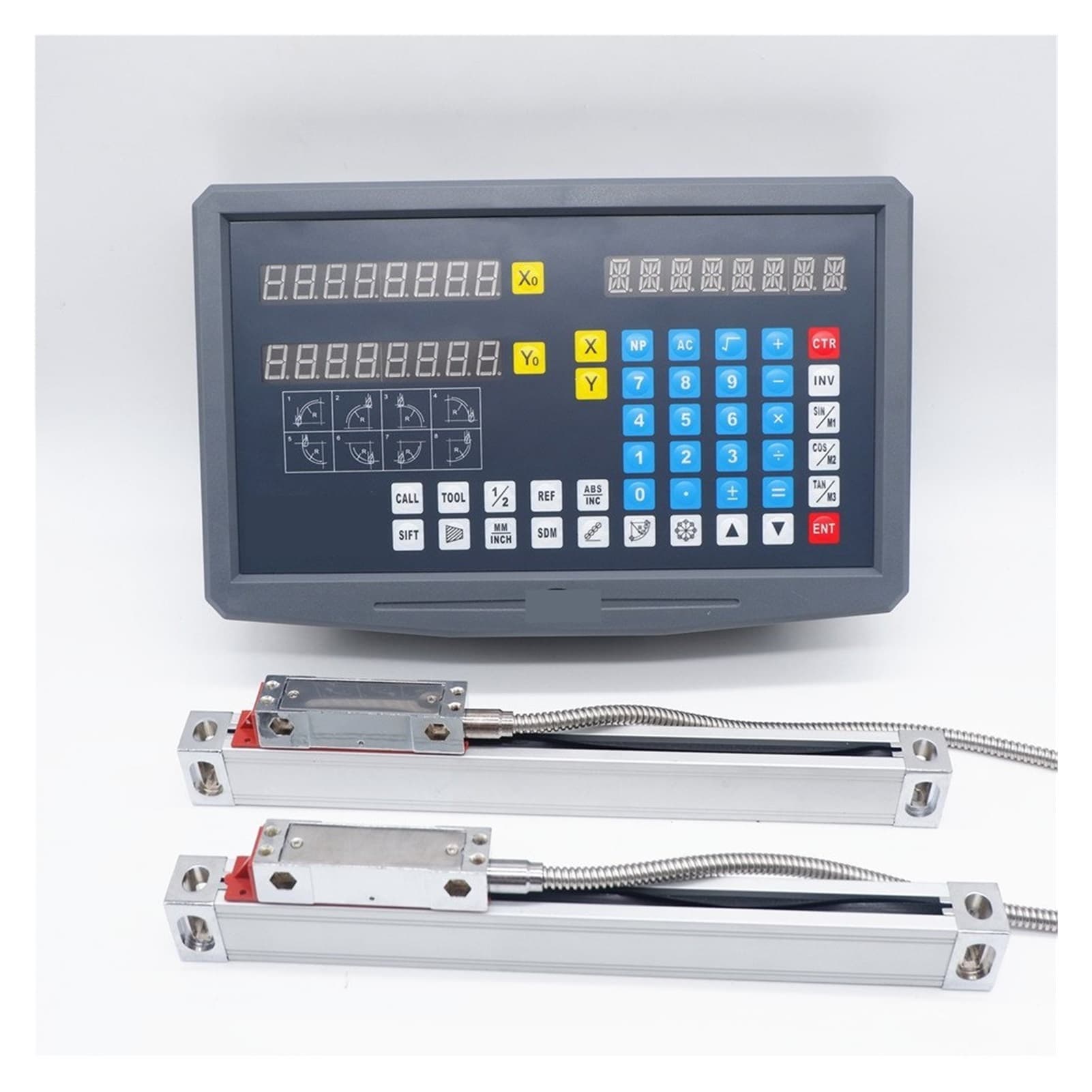

SNS-2V 2 Axis Digital Readout 2 Pieces 0-1000mm Linear Scale Encoder For Milling Lathe Machine Package includes: ) 0.005mm complete kit 1. 1 piece SNS-2V 2 axis (with user manual, mounting arm, screw bag) 2. 2 pieces 0.005mm linear scales (with covers, mounting bracket, screw bag) ) 0.001mm complete kit 1. 1 piece SNS-2V 2 axis(with user manual, mounting arm, screw bag) 2. 2 piece 0.001mm linear scales (with covers, mounting bracket, screw bag) ) SNS-2V 1. 1 piece SNS-2V 2 axis (with user manual, mounting arm, screw bag) Purchase Notes 1. You can choose 2 pieces scale within 0-1000mm travel measuring length with 5um resolution. 2. After ordering please tell the travel length of scale that you need. DRO Specification The digital readout(DRO)in SNS series is a high precision instrument that can be used on lathe,grinding machine,milling machine,boring machine,EDM etc. Product Features English language Self-motion middle parted function Metric/imperial conversion function Absolute/relative counting transformation function 1000 groups of zero memory function Function calculator operation function Arc surface processing function PCD function Cant processing function PLD function Machine tool error compensation function EDM function(option with extra) Function 1.zero clearing 2.reset 3.mm/inch mode 4.ABS/INC coordinate conversion 5.200sets sub datum 6.power off Memory; 7.center of 1/2 8.liner error compensation 9.sleepping mode 10.Clear 200 sets Sdm datum; 11.ABS/INC mode 12.calculator 13.drilling of circumference 14.drilling of oblique line 15.machining of inclined plane 16.machining of circular arc 17.lathe function(match) 18.Rectangular lumen gradual processing 19.digital filtering 20.vibration filtering 21.R/D fucntion Techincal Parameters 2.Power consumption:25VA 3.Coordinates:1/2/3/4 4.:8-bits digits 5.Input signal: TTL square 6.Input signal frequency: 100KHZ 7.Reading resolution: 10um,5um,2um,1um,0.5um Linear Scale Specification Parameter Product name:precision glass grating lenear transducer Resolution: 0.005mm / 0.001mm Cross section:21mm*33mm Output signal:TTL(RS422 option) Input voltage:DC 5V +/-5% Available measuring distance:0-1000mm Overall length: available measuring distance + 142mm Working speed:60m/min Working temprature:0-50 Cable length:2.5m-3m(longer option) Accessories:aluminum protective cover/L connection board/screws bag
