Sound Town MODE Audio 4x8 FIR DSP, Speaker System Processor, Line Array Management with Display, Support Dante/AES (MDX-48)

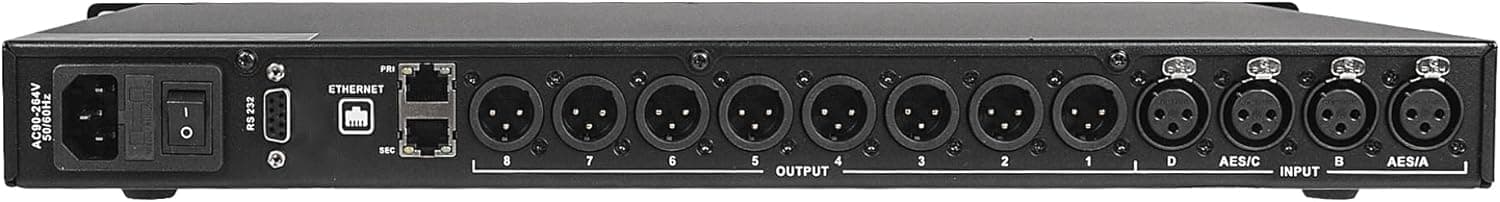

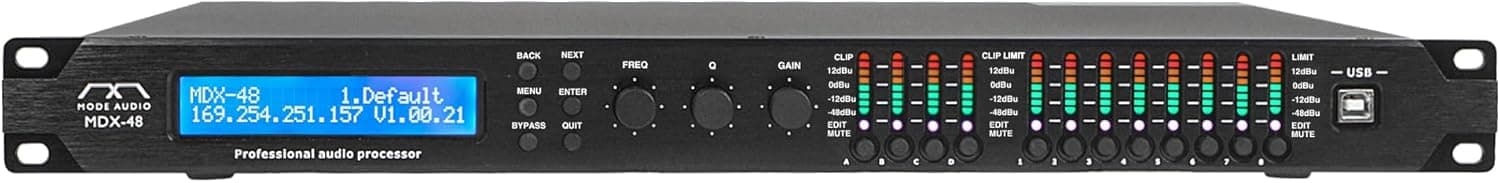

MODE AUDIO PROFESSIONAL PROCESSOR: The MODE Audio MDX-48 is a high-performance, rack-mountable, 4-in 8-out DSP loudspeaker management processor with a 96kHz, 24-bit sampling rate, enabling seamless tuning of your speakers and full PA system management FIR FILTER: Equipped with a Finite Impulse Response (FIR) filter, it ensures linear phase response, providing precise filtering and effective noise reduction, unlike IIR filters VERSATILE CONNECTIVITY: Includes 4-CH balanced XLR analog/AES digital inputs, 8 balanced XLR outputs, 4-channel Dante network audio I/O, Ethernet port, RS-232 PC GUI control, and USB (type B) connection USER-FRIENDLY INTERFACE: Features a backlit LCD on the front panel for channel and function settings, with dedicated buttons for key audio functions. LED arrays and Edit/Mute buttons are available on each input/output channel. Additionally, the Mconsole software for Windows allows complete PC control via USB, offering enhanced preset capacity and an intuitive audio routing visualization, with drive-free automatic connection FEATURES: Includes 15-band PEQ input, 10-band PEQ output, 4x512 taps 48k FIR linear phase setting, multiple LPF/HPF types, high/low shelf, all-pass phase, bandpass, notch filters, dynamic EQ, delay, compressor, limiter, matrix routing, up to 30 preset slots, device/setting lock, and multi-device control
