Supermicro A2SDV-4C-LN10PF Flex ATX Motherboard — Intel Atom Processor C3558, Single Socket FCBGA1310, DDR4 -2133 MHz

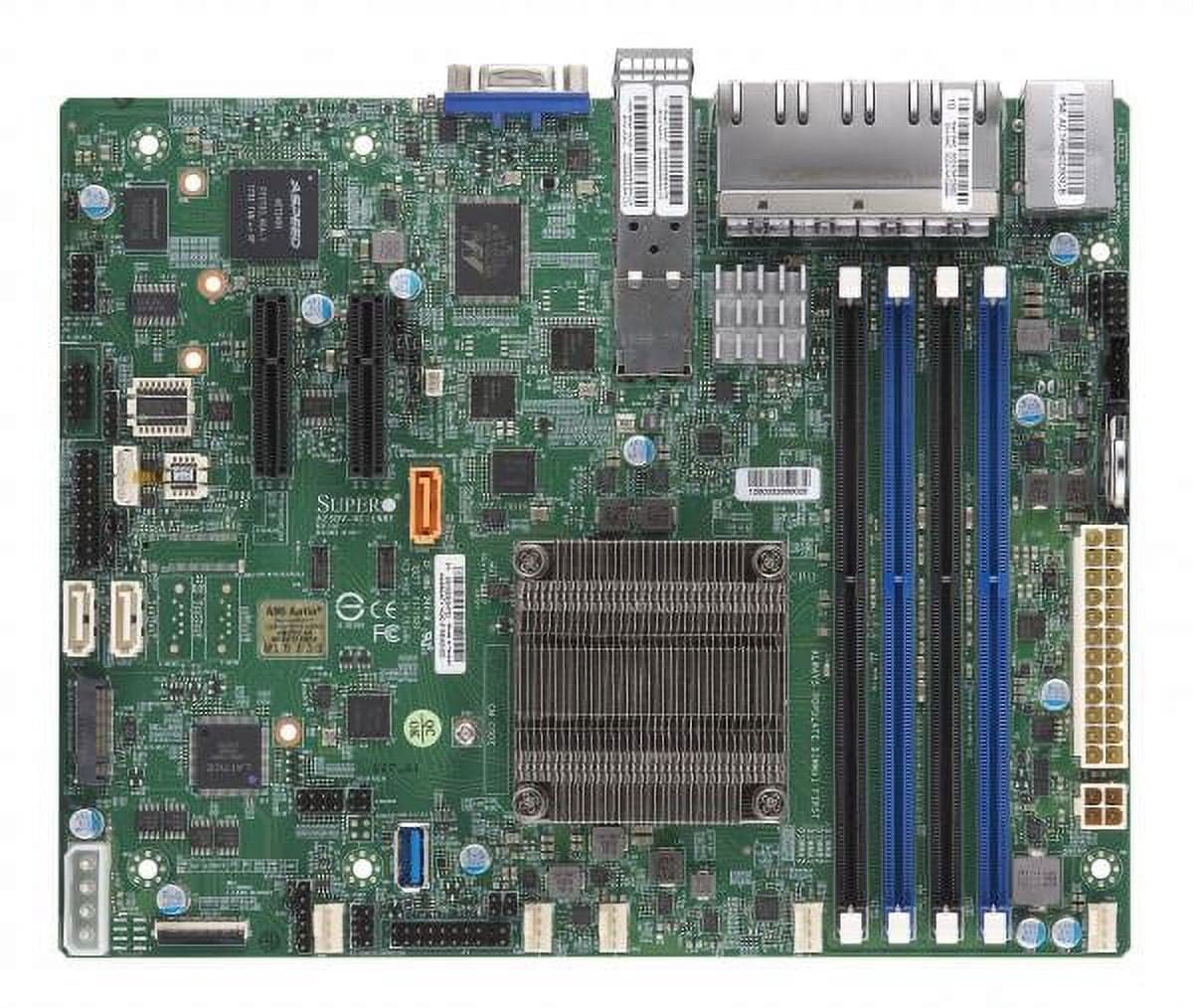

Supermicro A2SDV-4C-LN10PF Flex ATX board featuring an Intel Atom Processor C3558 on a Single Socket FCBGA1310 and support for DDR4 -2133 MHz memory. In addition to the onboard Atom CPU, the platform also supports 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors using Dual Socket LGA-3647 (Socket P). Designed to handle higher-power Xeon options, the system provides CPU TDP support Up to 140W TDP and includes 2 UPI up to 10.4 GT/s. The chipset is Intel C621. Memory and expansion: Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots. Expansion is available via 1 PCIe 3.0 x16 slot. Storage and RAID: Intel C621 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1,5,10 supported. Networking and I/O: Dual LAN with 1GbE with Marvell 88E1512 and 1 VGA D-Sub Connector port.
