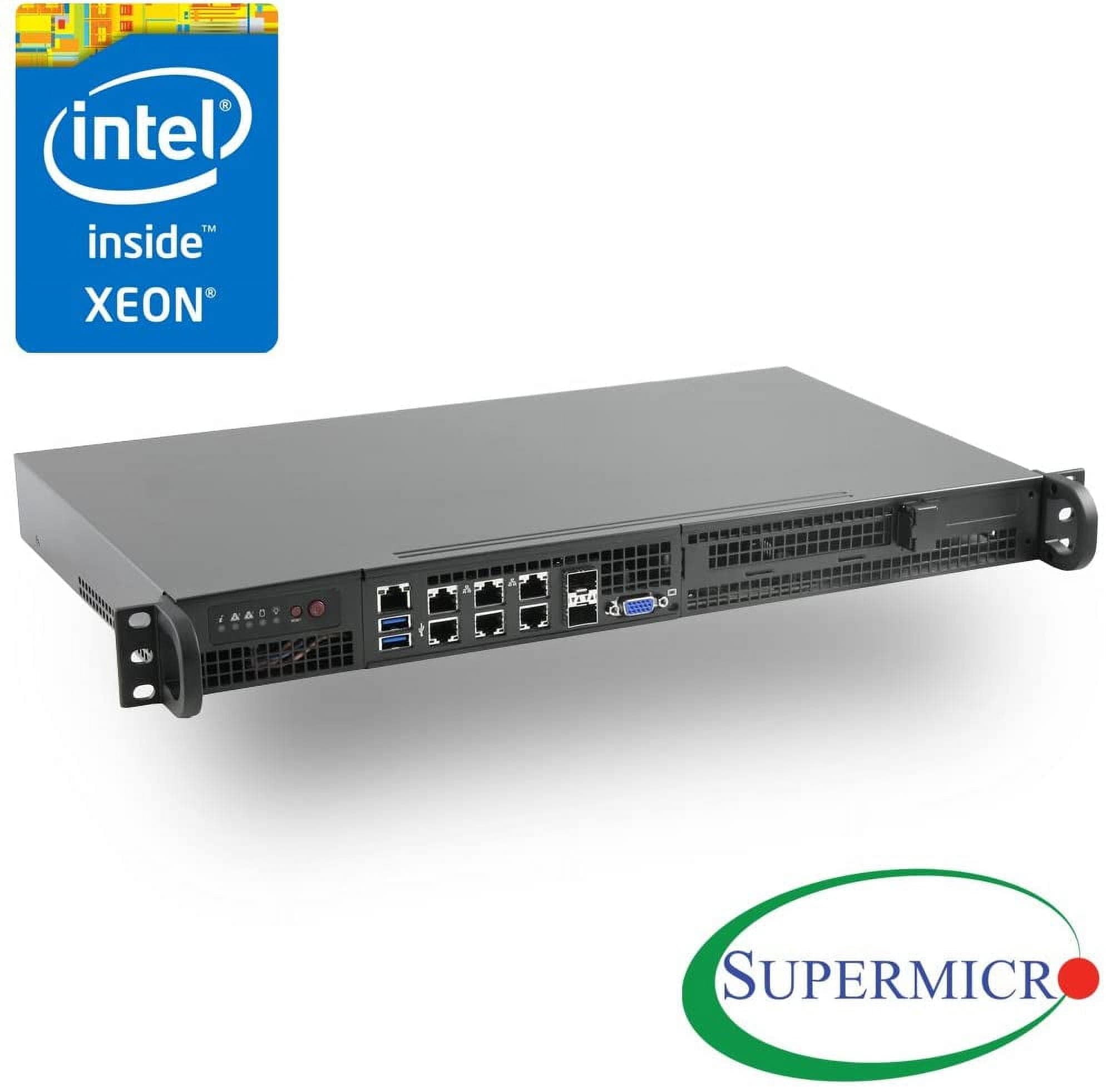

Supermicro Superserver 5018D-FN8T 1U Rackmount Barebone — Intel Xeon D-1518, 10GbE SFP+

Compact 1U barebone server built around the Intel Xeon D-1518 2.2 GHz Quad Core processor with Aspeed AST2400 BMC for system management. Memory support: 4x 288-pin DDR4 DIMM sockets supporting up to 128GB DDR4 ECC RDIMM or up to 64GB DDR4 ECC/non-ECC UDIMM. Supported DIMM sizes: 32GB, 16GB, 8GB, 4GB. Storage capabilities include 4x SATA3 6Gb/s drives plus slots for 1x M.2 (2242/2280/22110, PCI or SATA MUX), 1x mSATA (SATA MUX), and a SATA DOM. Networking features: 2x 10Gb SFP+ ports provided by the Intel D-1500 SoC, 4x 1GbE RJ45 ports (Intel i350-AM2), 2x 1GbE RJ45 ports (Intel I210), and an IPMI RJ45 (Realtek RTL8211F PHY) for out-of-band management. Chassis dimensions: 437mm x 249mm x 43mm (17.2" x 9.8" x 1.7").
