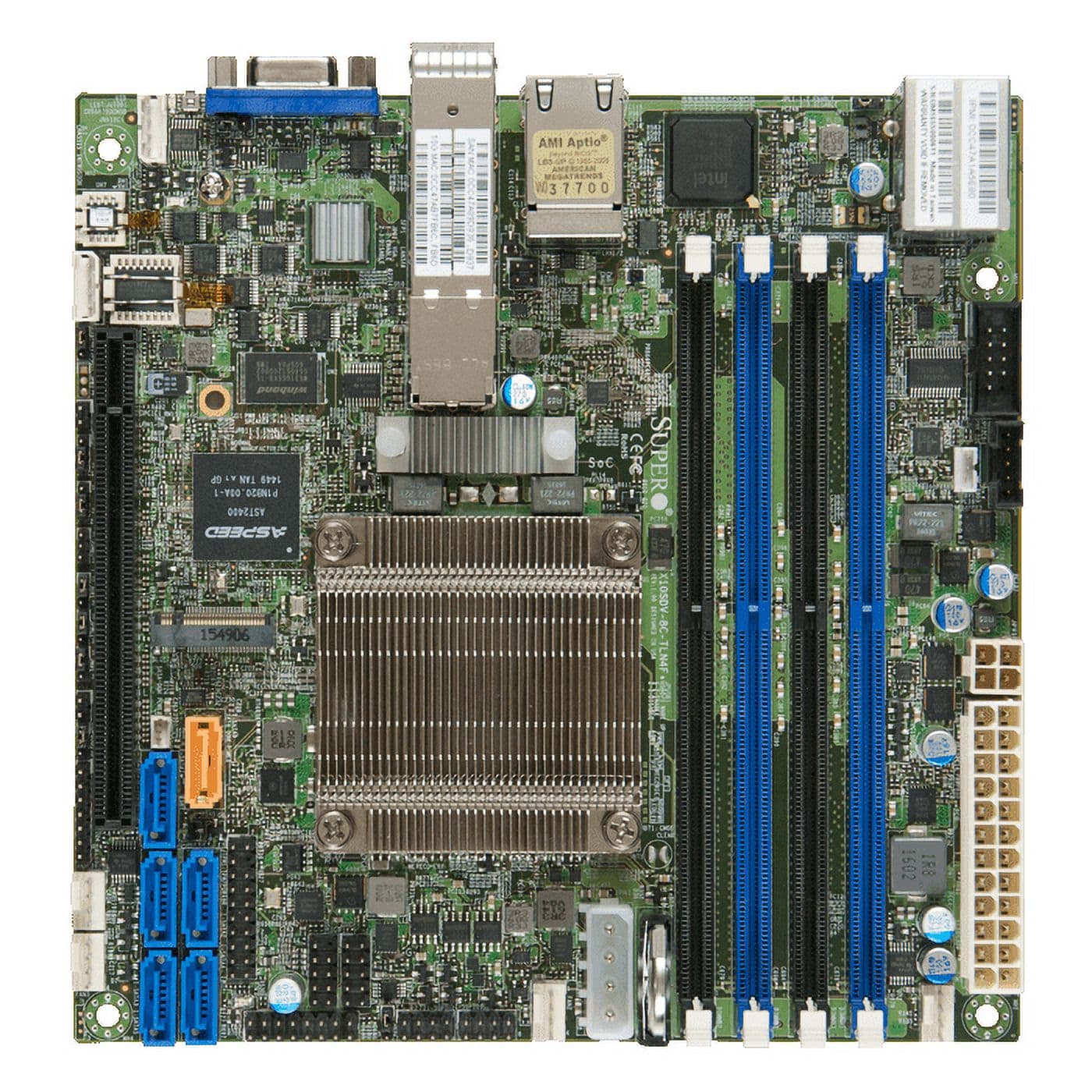

Supermicro X10SDV-12C-TLN4F+ Mini-ITX Motherboard - Intel Xeon processor D-1557, Single socket FCBGA 1667 - 12-Core / 24-Thread (45W) - DDR4 2133MHz, Dual 10G SFP+

The Supermicro X10SDV-12C-TLN4F+ is a compact Mini-ITX server board powered by an Intel Xeon processor D-1557 (Single socket FCBGA 1667). This 45W System-on-Chip delivers 12-Core, 24 Threads and supports memory configurations up to 128GB ECC RDIMM DDR4 2133MHz or up to 64GB ECC/non-ECC UDIMM across 4 sockets. Expansion and storage options include 1 PCI-E 3.0 x16 slot and an M.2 connector (M.2 PCI-E 3.0 x4 (SATA support)), M Key 2242/2280. The board also provides 6 SATA3 (6Gbps) ports via SoC and 1 SuperDOM for additional storage flexibility. Networking and connectivity are robust with 2 10G SFP+ and 2 GbE LAN ports. External and internal I/O includes 2 USB 3.0 ports (rear) / 2 USB 2.0 ports (via header), plus 1x COM. Additional headers include TPM header, GPIO and SMbus header(s). Power is supported through 12V DC Input and ATX Power Source, making this motherboard suitable for compact, high-performance server deployments.
