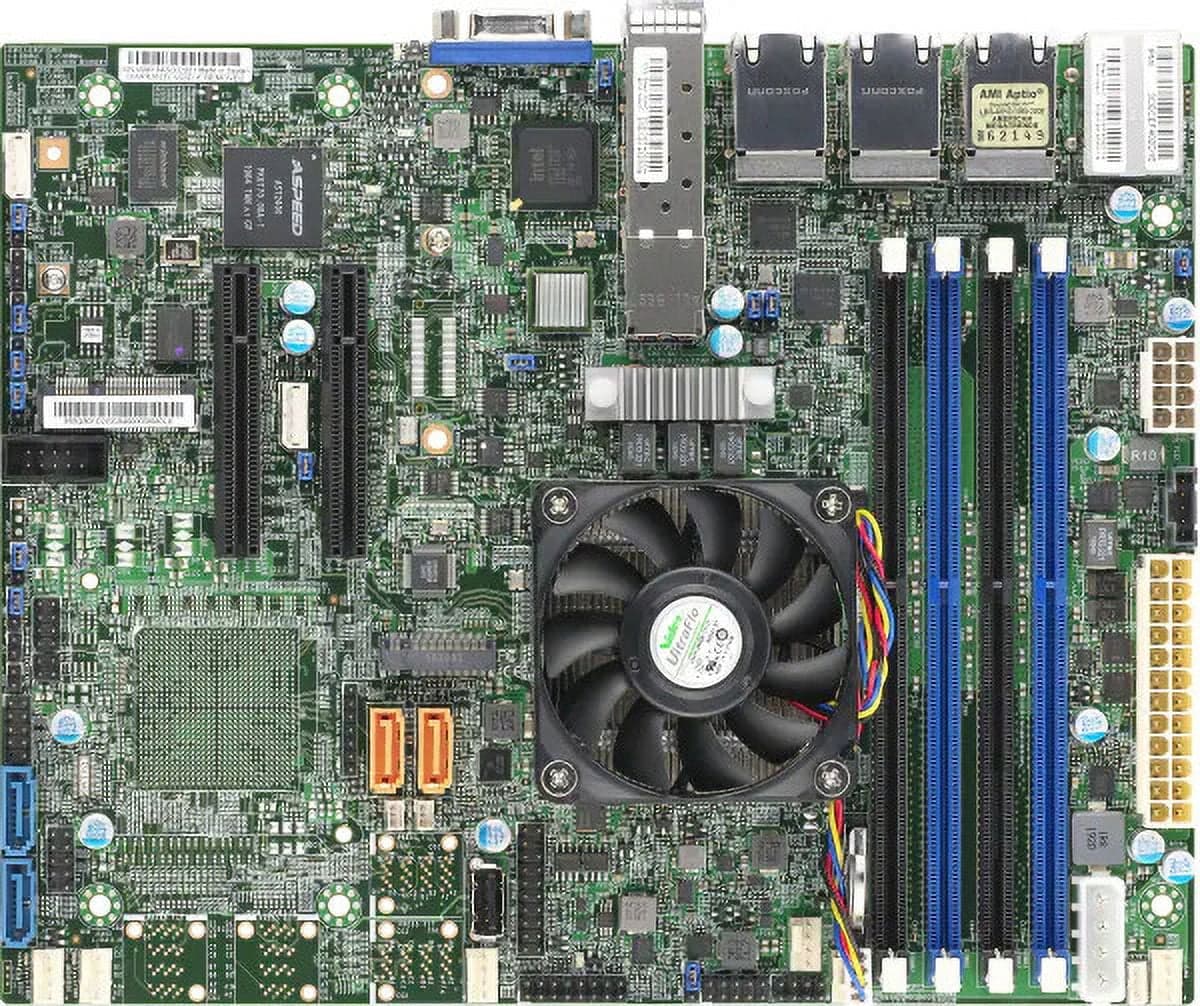

Supermicro X10SDV-12C+-TP8F Flex ATX Motherboard — Intel Xeon processor D-1567, DDR4 2133MHz, 2x10G SFP+ + 6x GbE

Compact Flex ATX server board featuring the Intel Xeon processor D-1567 on a Single socket FCBGA 1667. The integrated CPU delivers 12-Core, 24 Threads performance with a 65W TDP. Memory: Supports up to 128GB ECC RDIMM DDR4 2133MHz or up to 64GB ECC/non-ECC UDIMM across 4 sockets. Expansion and storage: Two PCI-E 3.0 x8 slots plus a Mini PCI-E slot with mSATA support. Includes an M.2 slot (M Key) PCI-E 3.0 x4 with SATA support compatible with 2242/2280/22110 form factors. Four SATA3 (6Gbps) ports are provided via the SoC for additional storage devices. Networking: High-density networking with 2 10G SFP+ ports alongside 6 GbE LAN ports for versatile connectivity options. I/O and headers: Rear I/O includes 2 USB 3.0 ports, and the board offers 5 USB 2.0 ports (4 available via headers and 1 Type A). Additional onboard interfaces include 2 SuperDOM connectors, 1 COM port, a TPM 2.0 header, GPIO and SMbus headers. Power: Supports both a 12V DC Input and a standard ATX Power Source for flexible deployment.
