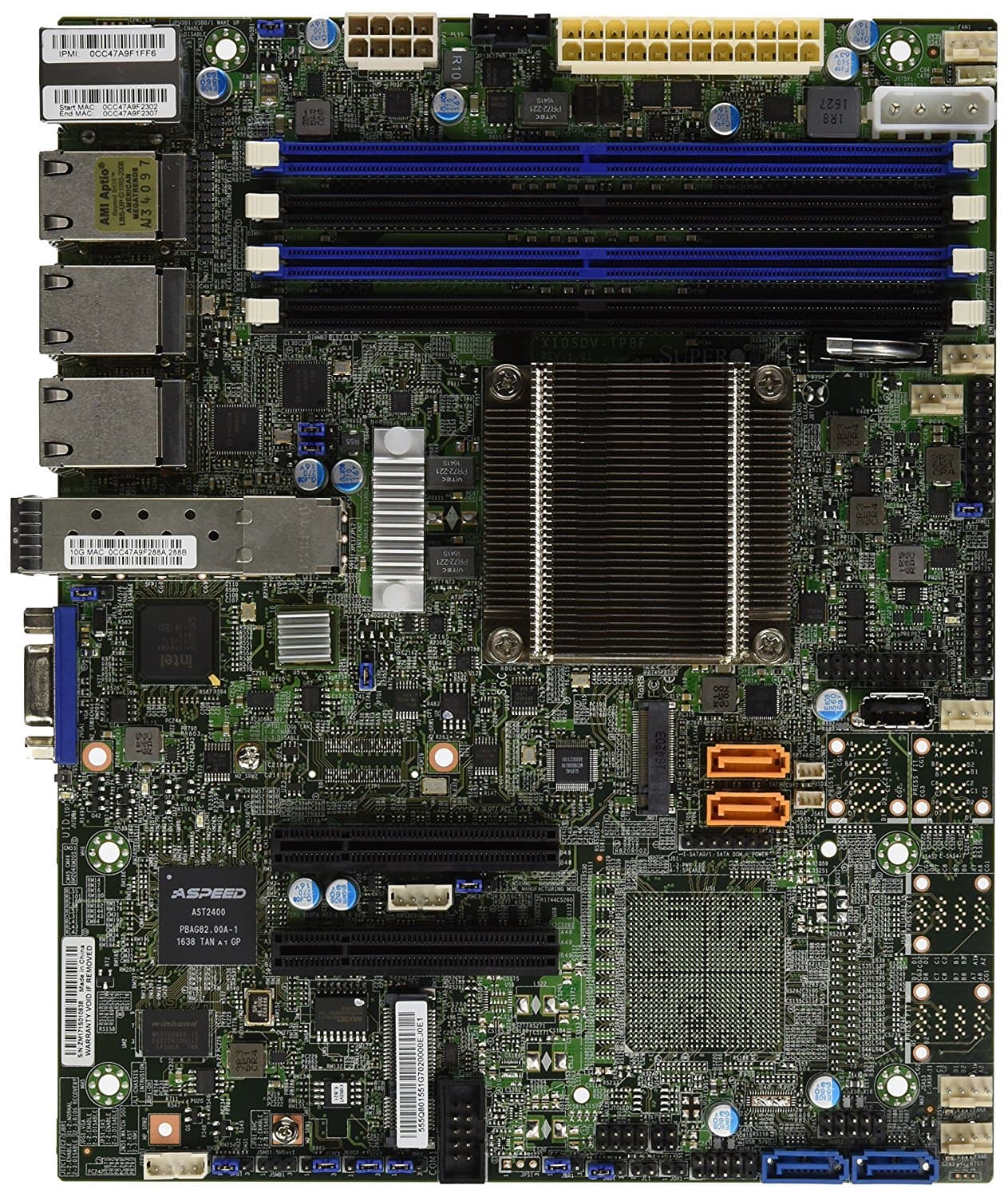

Supermicro X10SDV-TP8F Flex ATX Server/Workstation Motherboard — Intel Xeon processor D-1518, DDR4 2133MHz, Dual 10G SFP+ + 6x GbE

Compact Flex ATX server/workstation motherboard built around the Intel Xeon processor D-1518. Single socket FCBGA 1667; 4-Core, 8 Threads, 35W processing power on a small-form-factor board ideal for dense deployments. Memory and expansion: Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets. Expansion options include 2 PCI-E 3.0 x8 slots plus a Mini PCI-E (mSATA support) and an M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280/22110. Storage and I/O: 4 SATA3 (6Gbps) ports via SoC for direct SATA drives, with additional solid-state connectivity via M.2 and mSATA. Rear and onboard USB provide 2 USB 3.0 ports (rear) and 5 USB 2.0 ports (4 via headers, 1 Type A). Networking: High-throughput networking with 2 10G SFP+ and 6 GbE LAN interfaces for flexible connectivity and redundancy. System headers and management: Includes 2 SuperDOM connectors, 1 COM port, TPM 2.0 header, plus GPIO and SMbus headers for custom integrations and management functions. Power: Supports both 12V DC Input and ATX Power Source for versatile deployment options.
