Supermicro X11SDV-4C-TLN2F Mini-ITX Motherboard — Intel Xeon Processor D-2123IT 4-Core, DDR4-2400, Dual 10GBase-T, SATA3 & NVMe

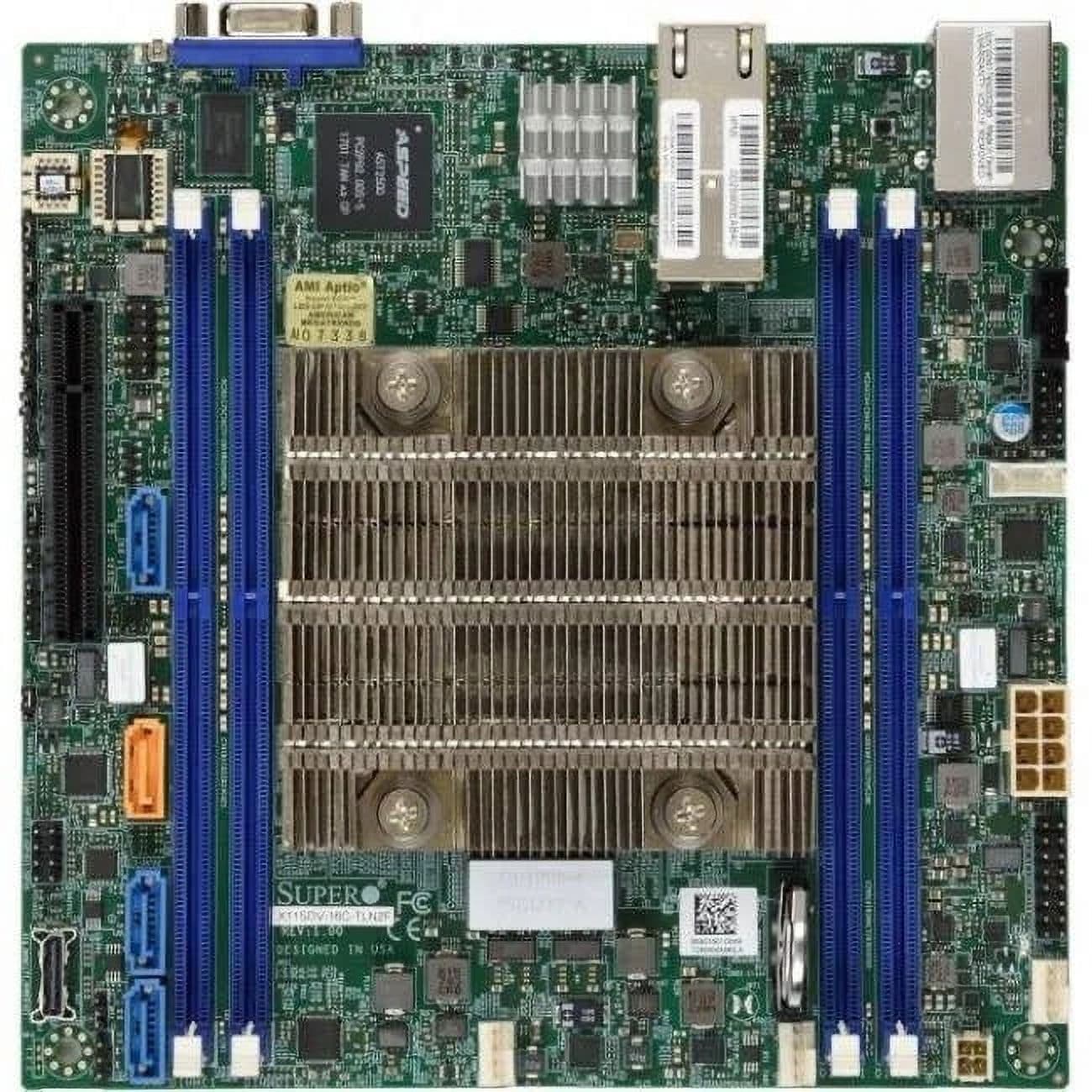

Compact Supermicro X11SDV-4C-TLN2F mini-ITX board powered by the Intel Xeon Processor D-2123IT (4 cores / 8 threads, 60W). Designed for reliable server and edge deployments, it combines a high-efficiency SoC CPU with extensive storage and expansion options. Memory: Supports DDR4-2400MHz across 4 DIMM slots with up to 256GB Registered ECC RDIMM or up to 512GB ECC LRDIMM. Expansion and storage: Offers 1 PCI-E 3.0 x8 and 1 PCI-E 3.0 x4 slot. Internal NVMe connectivity is provided via an OCuLink port. The board can present up to 8 SATA3 (6 Gbps) ports and supports RAID levels 0, 1, 5, and 10. Note: 4 SATA ports are routed through OCuLink (or the OCuLink can be used as PCI-E 3.0 x4 for NVMe). Networking and I/O: Dual LAN with 10GBase-T implemented by the Intel SoC. Rear I/O includes 2 USB 3.0 ports; an additional 2 USB 2.0 ports are available via header. Power: Accepts 12V DC or standard ATX power input. This board delivers compact, enterprise-grade functionality — Xeon D performance, ECC memory support, high-speed networking and flexible storage interfaces — in a Mini-ITX footprint.
