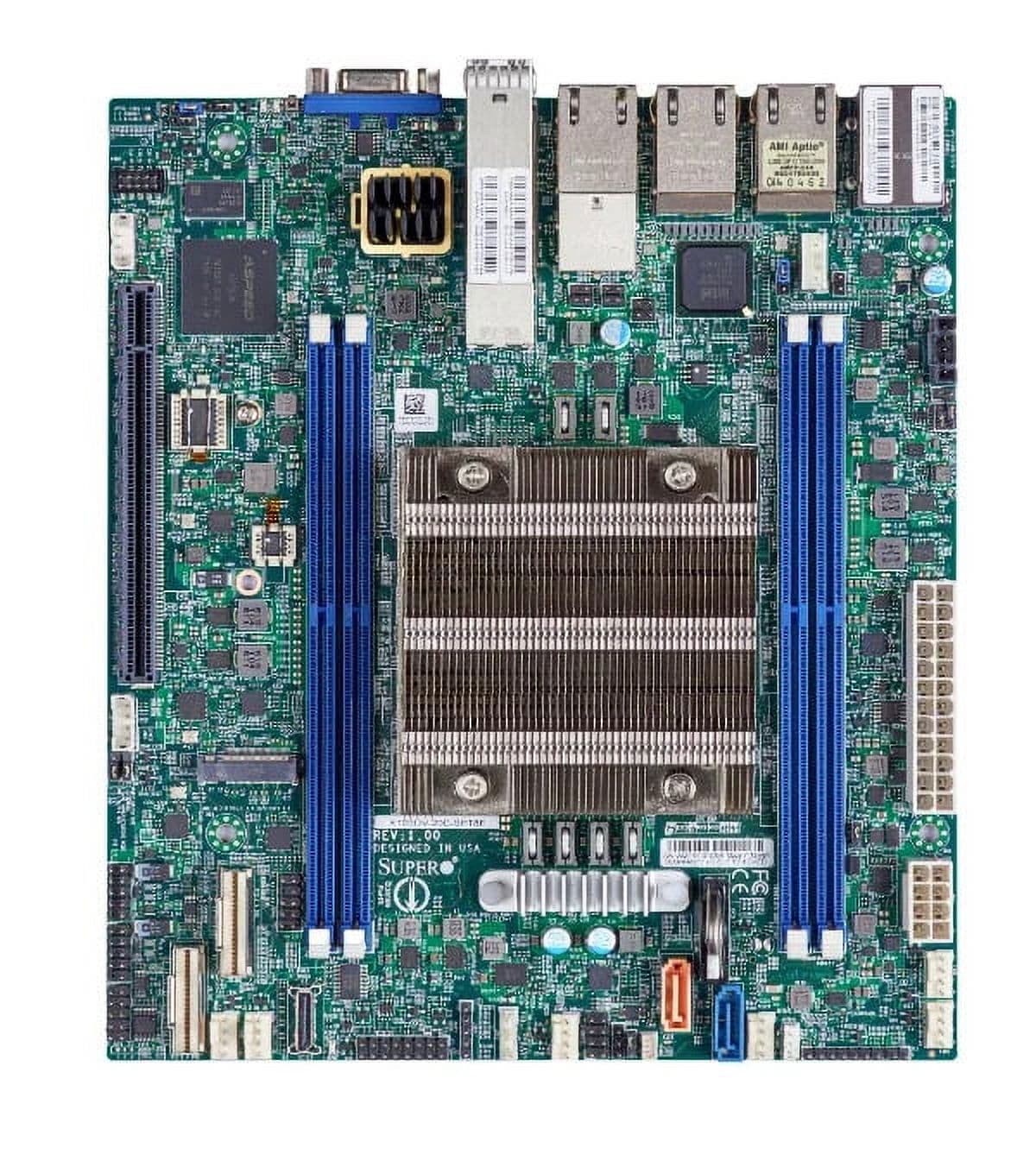

Supermicro X12SDV-8C-SPT8F Micro-ATX Motherboard — Intel Xeon Processor D-2733NT (Single Socket FCBGA-2579) — LRDIMM/RDIMM DDR4-2667MHz

Built around the System on Chip Intel Xeon Processor D-2733NT (CPU TDP 80W) and featuring Intel Quick Assist Technology, the Supermicro X12SDV-8C-SPT8F is a compact Micro-ATX platform for high-performance, network-centric applications. The board uses a Single Socket FCBGA-2579 layout and supports multiple high-speed I/O and storage options. Memory: Supports up to 256GB Registered ECC RDIMM, DDR4-2667MHz; or up to 512GB LRDIMM LRDIMM, DDR4-2667MHz, populated across 4 DIMM slots. Expansion and storage: One PCI-E 4.0 x16 slot plus two PCI-E 4.0 NVMe x8 lanes provide flexible accelerator and NVMe device support. Internal storage connectivity includes a SlimSAS internal port, one OCuLink connector (4 SATA/PCI-E 3.0 x4), and one M.2 M-Key 2242/2280 slot (SATA/PCI-E 3.0 x4). The SoC controller provides two SATA3 (6 Gbps) ports with RAID 0 and 1 support. Networking: Comprehensive onboard networking is provided by Quad 1G RJ45 ports driven by Intel I350-AM4, Dual 25G SFP28 interfaces from the Intel SoC, and Dual 10Gbase-T RJ-45 ports using the Intel Ethernet Controller X550-AT2. Power and compatibility: The board accepts 12V DC or standard ATX power input (Use at least 5Vsb/4A PSU). This motherboard combines dense memory support, extensive high-speed I/O and versatile networking for compact server and edge deployments.
