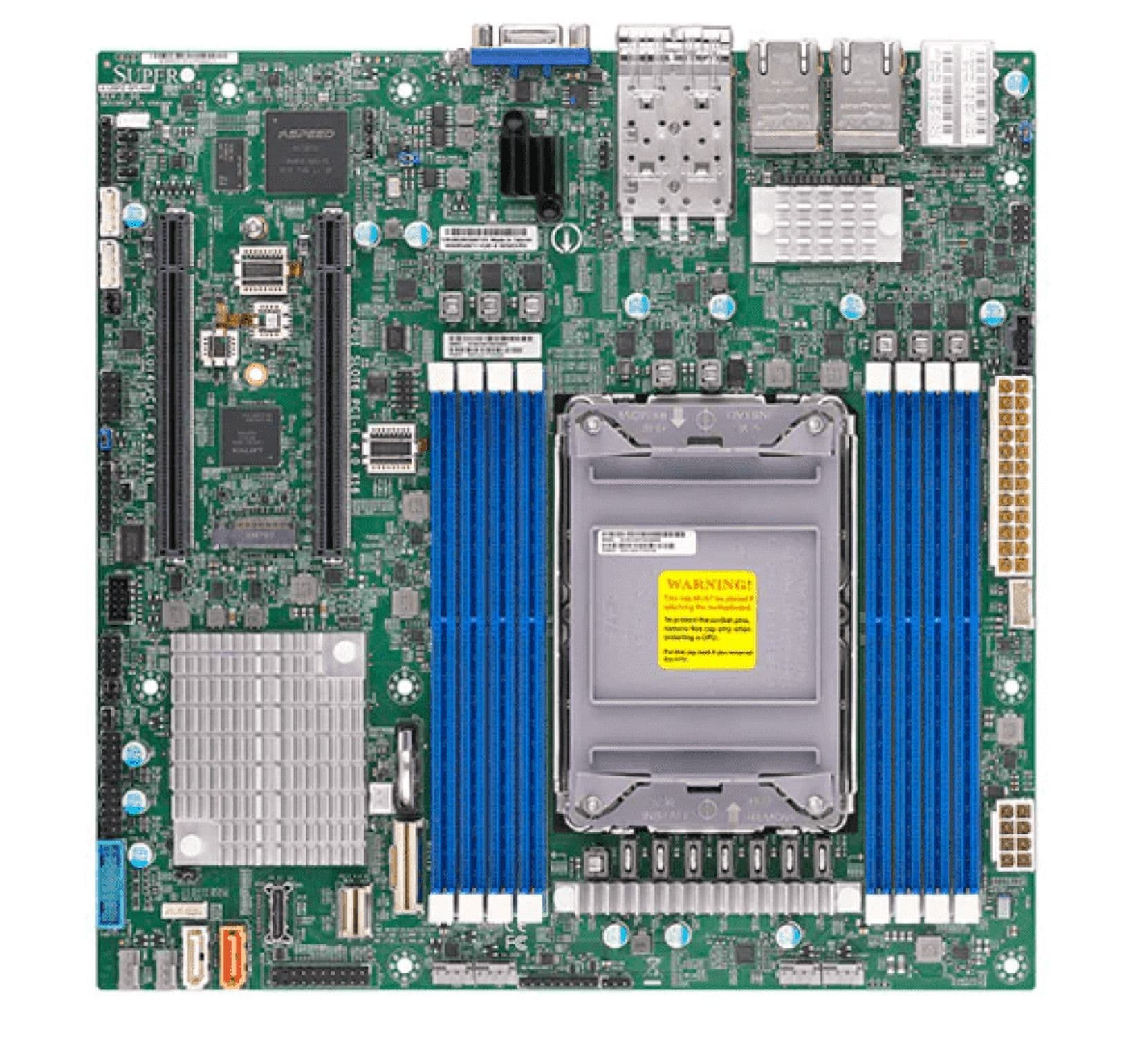

Supermicro X12SPZ-SPLN6F Micro-ATX Server Motherboard — Intel C621A, Single Socket LGA-4189 (DDR4) — Full Warranty

Purpose-built for dense server workloads, the Supermicro X12SPZ-SPLN6F accepts 3rd Gen Intel® Xeon® Scalable processors in a Single Socket LGA-4189 (Socket P+) and the board supports CPU TDP supports Up to 270W TDP. The platform is based on the Intel® C621A chipset and uses a compact Micro-ATX layout. Memory: Eight DIMM slots provide flexible memory configurations and support Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; and Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots. Expansion and storage: Two full-length 2 PCIe 4.0 x16 slots plus dedicated NVMe/SAS interfaces — 1 PCIe 4.0 NVMe x8 SlimSAS Internal Port and 1 PCIe 4.0 NVMe x4 SlimSAS Internal Port. Additional on-board storage/connectivity includes 1 OCuLink Connector (4 SATA/PCIe 3.0 x4) and 1 M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4). I/O and management: Rear and header USB support is provided as 4 USB 3.2 Gen 1 (2 Rear, 2 via Header) and 4 USB 2.0 (Headers). Networking is robust with Quad 1G RJ45 with Intel® I350-AM4 plus Dual 25G SFP28 with Broadcom BCM57414 for high-bandwidth connectivity. Power: Designed for flexible deployment, the board Supports 12V DC power input. This X12SPZ-SPLN6F combines high-performance CPU support, large memory capacity, multiple PCIe 4.0 expansion lanes, NVMe/SAS storage options, and both 1G and 25G networking in a Micro-ATX server package.
