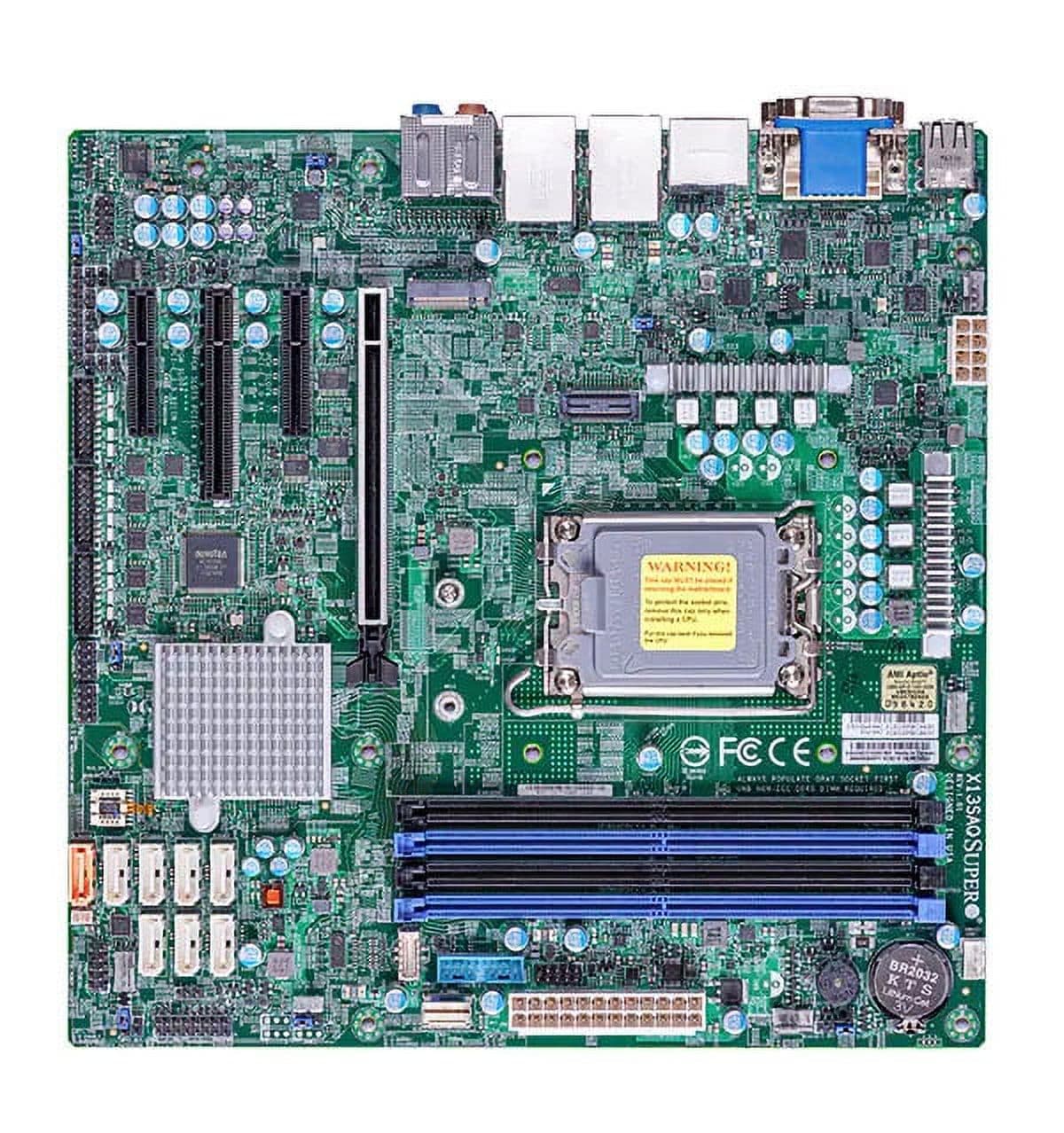

Supermicro X13SAQ Q670E Micro-ATX Motherboard — LGA-1700 for 12th/13th Gen Intel Core i9/i7/i5/i3/Pentium/Celeron, DDR5, Dual 2.5GbE

Compact Micro-ATX motherboard based on the Intel Q670E chipset, designed for single LGA-1700 processors from Intel’s 13th and 12th Generation Core i9/i7/i5/i3 families as well as Pentium and Celeron. Supports CPUs with up to 125W TDP. Memory is handled by four DIMM slots accommodating up to 128GB of Unbuffered non-ECC UDIMM DDR5-4400MHz. Expansion and storage options: one PCIe 5.0 x16 slot, one PCIe 4.0 x4 slot, one PCIe 3.0 x4 slot, one PCIe 3.0 x2 slot plus a PCIe 4.0 NVMe x4 SlimSAS port. There is also one M.2 slot (PCIe 4.0 x4) that accepts M-Key modules in 2280/22110 form factors. The Q670E controller provides eight SATA3 (6 Gbps) ports with RAID support for 0, 1, 5, and 10. Connectivity and displays: dual 2.5 Gigabit LAN driven by Intel Ethernet i225LM (includes [AMT/vPro] support). Video outputs enable up to four independent displays via VGA, DisplayPort 1.4a, HDMI 2.0b, and DVI-D. Additional security is provided by onboard TPM 2.0.
