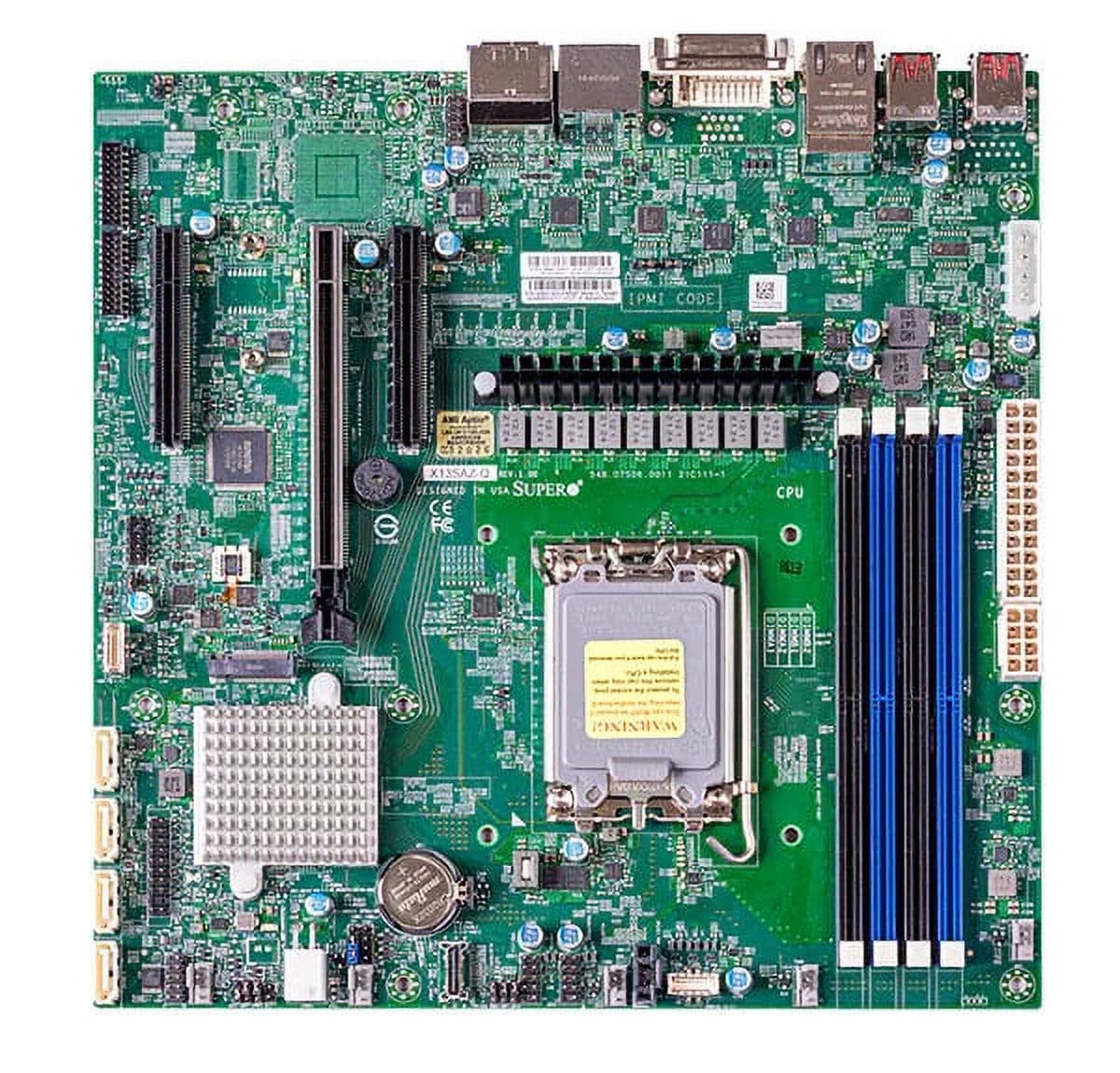

Supermicro X13SAZ-Q Micro-ATX Motherboard — 12th Gen Intel LGA-1700 (Q670E), DDR5, Dual 2.5Gb LAN

Compact Micro-ATX motherboard designed for 12th Generation Intel Core processors (i9/i7/i5/i3) as well as Pentium and Celeron CPUs; single Socket LGA-1700 with support for CPUs up to 125W TDP. Built on the Intel Q670E chipset and equipped with onboard TPM2.0 for platform security. Memory and expansion: Supports up to 128GB of Unbuffered non‑ECC UDIMM DDR5-4400MHz across 4 DIMM slots. Expansion includes one PCIe 5.0 x16 slot, two PCIe 4.0 x4 slots, plus one PCIe 4.0 x4 OCulink port. Storage and M.2: Intel Q670E provides four SATA3 (6 Gbps) ports with hardware RAID support for RAID 0, 1, 5, and 10. Single M.2 slot supports PCIe 4.0 x4 M.2 devices in 2280/22110 form factors (M-Key). Networking and remote management: Dual 2.5 Gigabit Ethernet powered by Intel i225LM controllers. Remote management features include AMT/vPro support where applicable. Video outputs and power: Video connectivity for up to four independent displays via 2 DP++ ports, 1 HDMI 2.0b port and 1 DVI‑D port. The board is compatible with a 12V DC power input.
