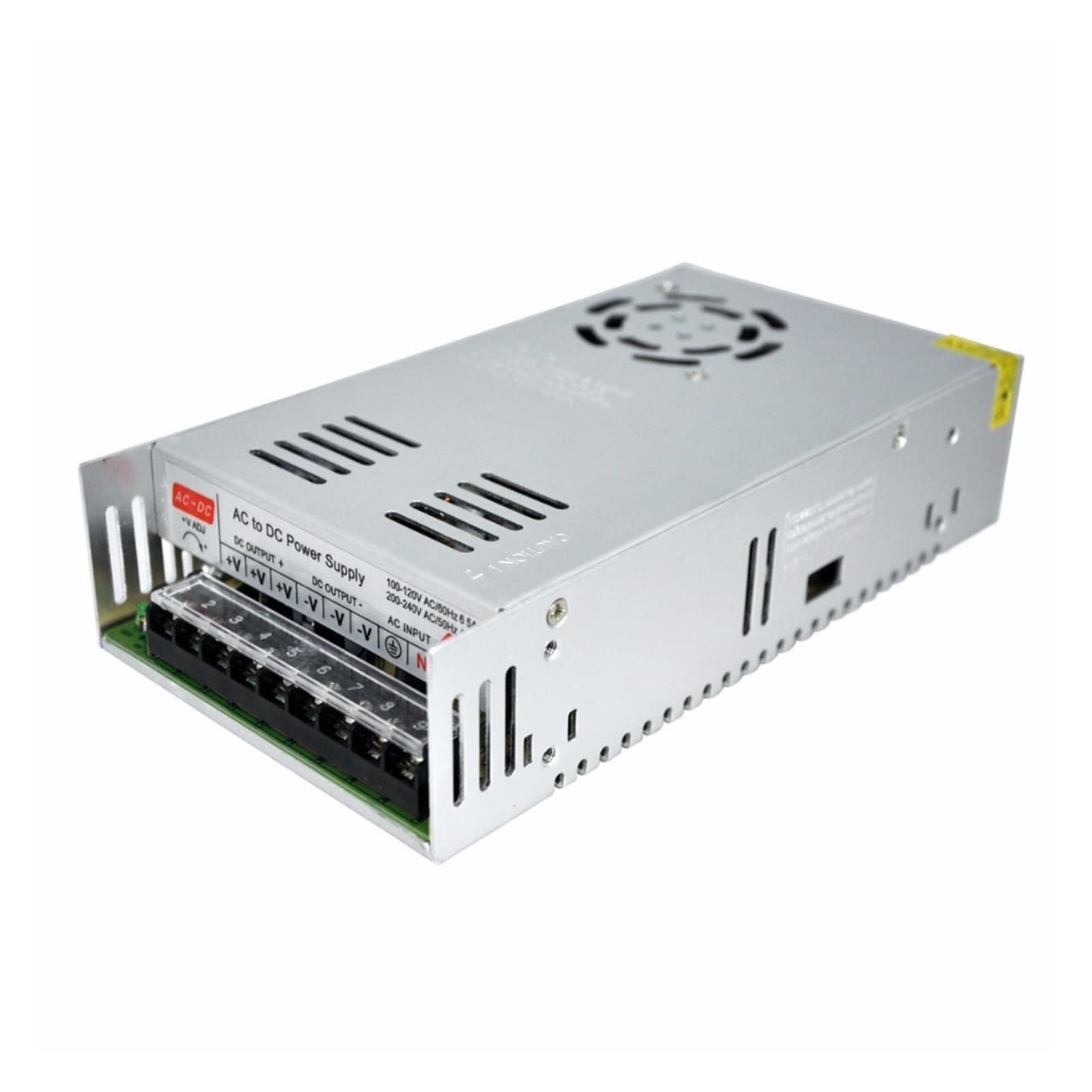

Switch Power Supply For Led Strip Adapter To DC 24V 20A 480W Transformer

Model S-480-24 INPUT AC input voltage range(V) AC 110/220-V±15% Input current(A) 21A/115VAC;10.5A/230VAC Frequency (Hz) 50/60Hz Efficiency 82%(230VACFull Load) Inrush current(A) cold start 20A/115V AC 40A/230VAC Leakage current(mA) <3.5mA/240VAC output Output Voltage(V) 24V±0.5DC Voltage Regulation ±10% Output Current(A) 20A Current Range (A) 0-20A Rated Power(W) 480W Start time, hold-up time(ms) 300ms/230VAC 800ms,/115VAC at full load Rise time(ms) 50ms at Full Load Ripple/Noise(MVP-p) 120mVp-p Environment working Temperature (°C) -10 centidegree to+60 centidegree Storage Temperature(°C) -20 centidegree to+85 centidegree Humidity 20% to90%RH non condensing Protection Over voltage Protection >115%-135% Rated output voltage Over load Protection >105%-150% Auto recovery Short circuit Protection Latched Others Size L*W*H(mm) 215*112*50mm
