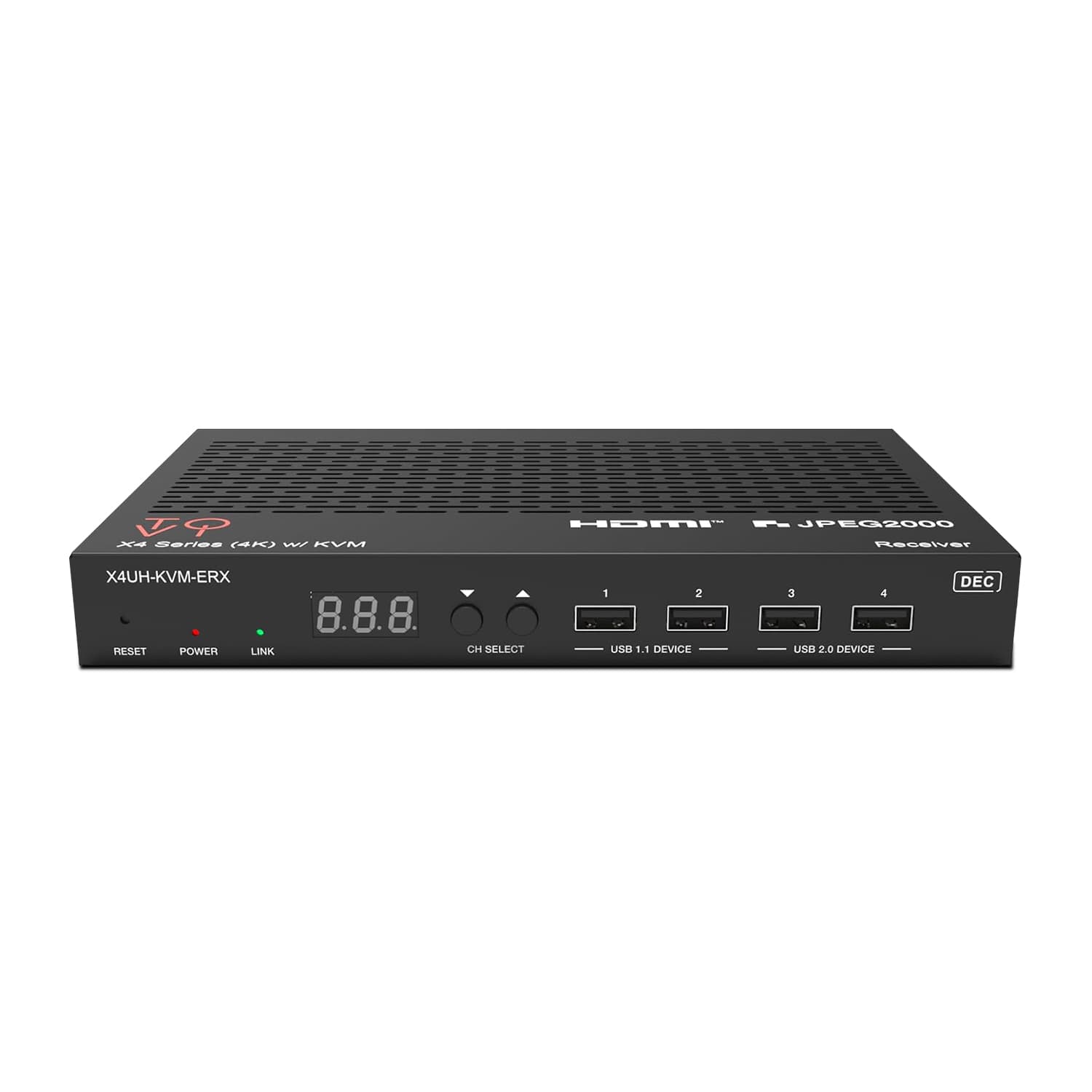

ToVi X4 4K Decoder (X4UH-KVM-ERX) — Video Wall • KVM • eARC • 4K@60Hz

Engineered for high-fidelity distribution, the ToVi X4 4K Decoder (X4UH-KVM-ERX) is HDCP 2.2 compliant and provides an 18Gbps data path to deliver true 4K@60Hz (4:4:4) video in accordance with HDMI 2.0b. It extends AV signals up to 100 meters (328 feet) over CAT6/6A/7 cabling, and can carry video, analog/digital audio, IR, RS-232, CEC, and USB concurrently over Ethernet. The unit includes both integrated copper and fiber ports for flexible link options within a compact chassis. Audio return is supported via ARC/eARC, S/PDIF and analog audio return for simplified sound routing. Channel setup is made easy by front panel buttons and an LED screen, while contact control needs are met by 2-channel relay and 2-channel I/O ports. Network and routing capabilities cover unicast, multicast, point-to-point, matrix switching and full video wall operation (up to 9x9), plus video wall class management with MJPEG sub-stream real-time preview. Installation is straightforward with 1G Ethernet and PoE support, and device management is available through the built-in web interface, Telnet and SSH — with enhanced control when paired with the X4UH-CB Network Hub. Broad audio codec compatibility includes LPCM 2.0/5.1/7.1CH, Dolby Digital (Plus, EX, True HD) and DTS (96/24, EX, High Res, HD Master, DSD).
