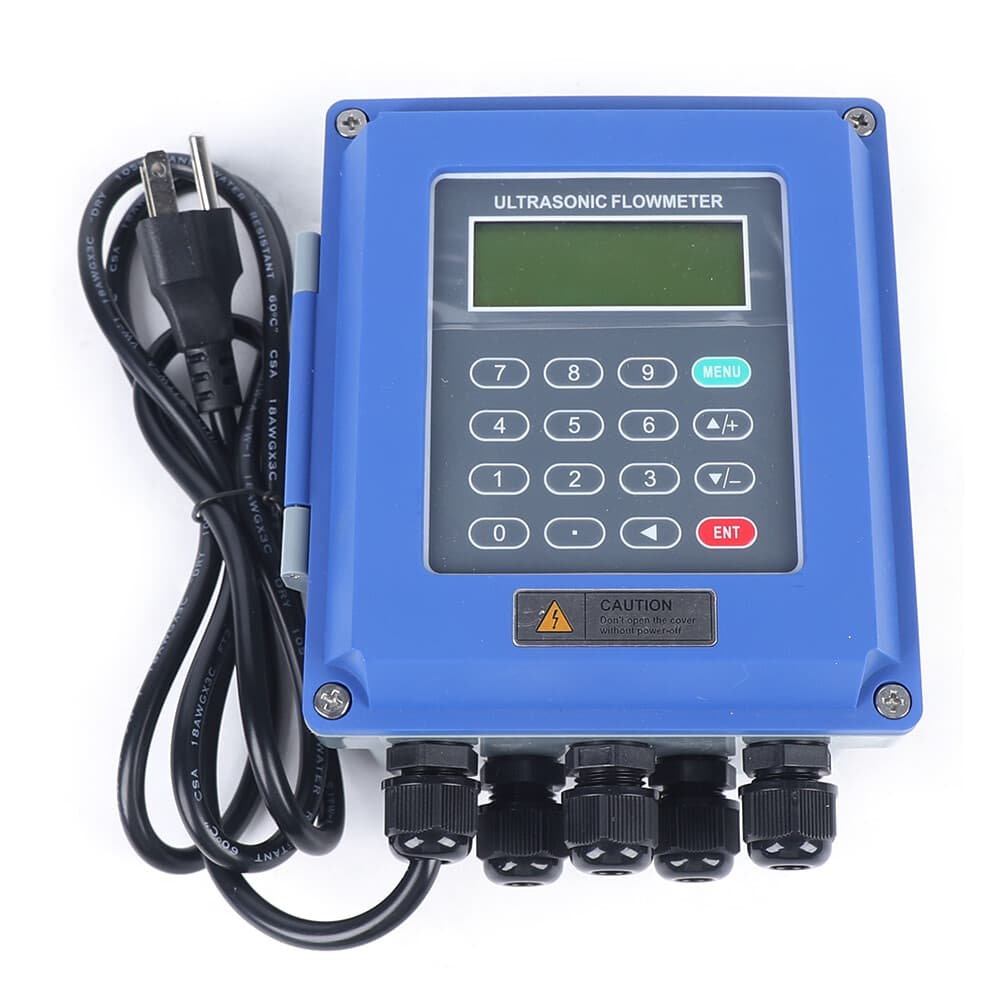

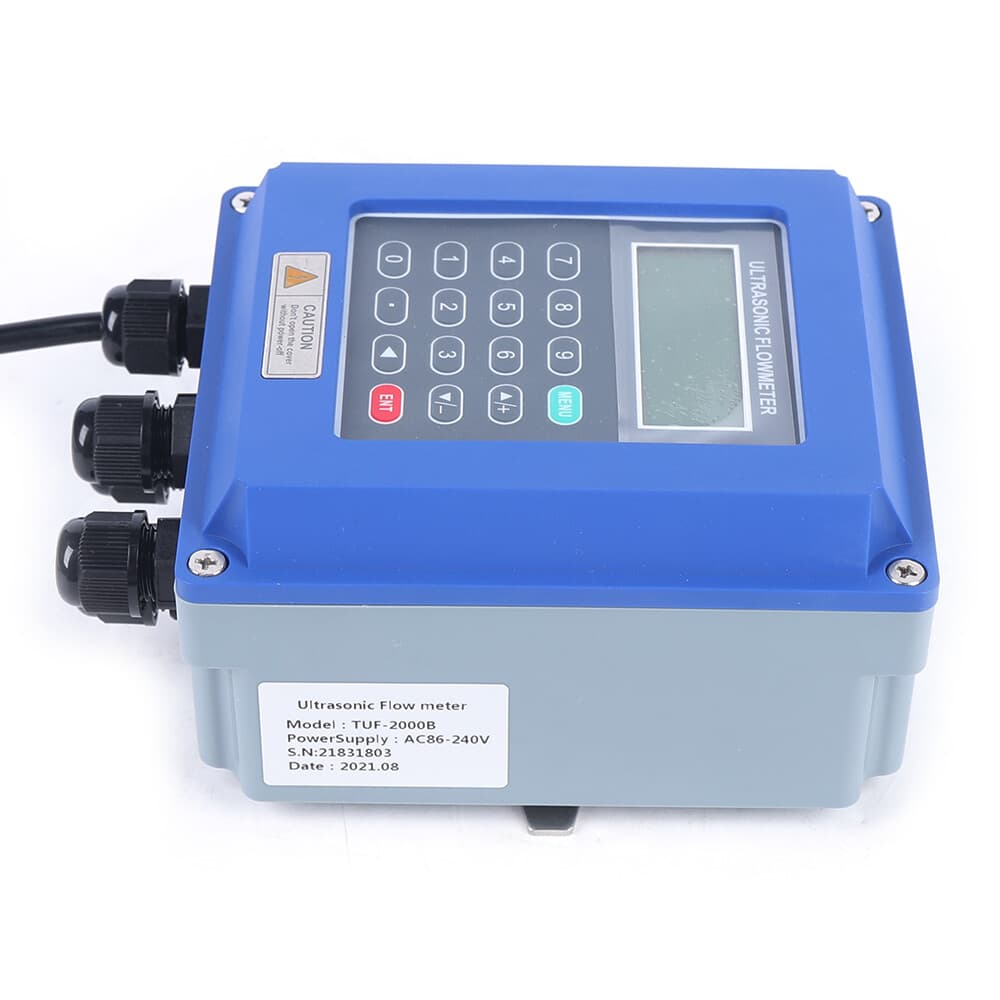

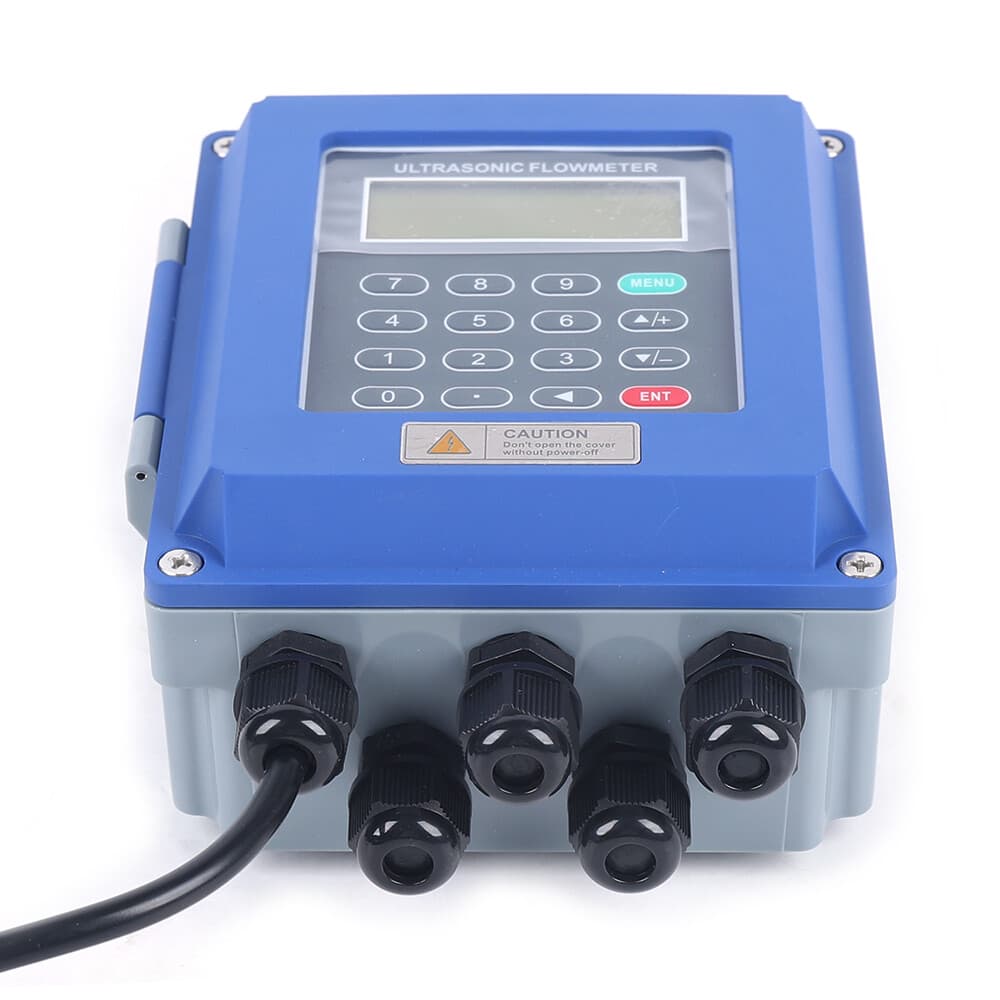

TUF-2000B Ultrasonic Flow Meter Wall-Mount Liquid Flowmeter TS-2 TM-1 Transducer for Pipe Diameter DN50 to 700mm

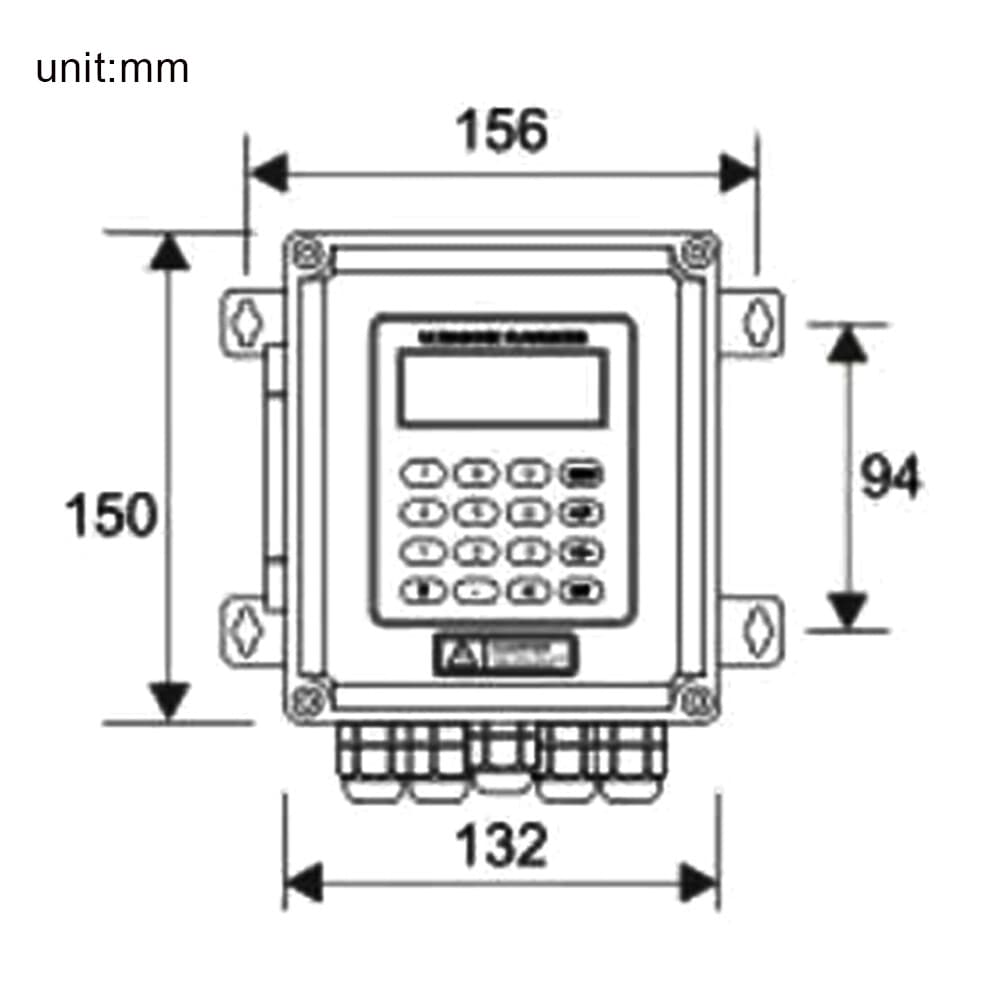

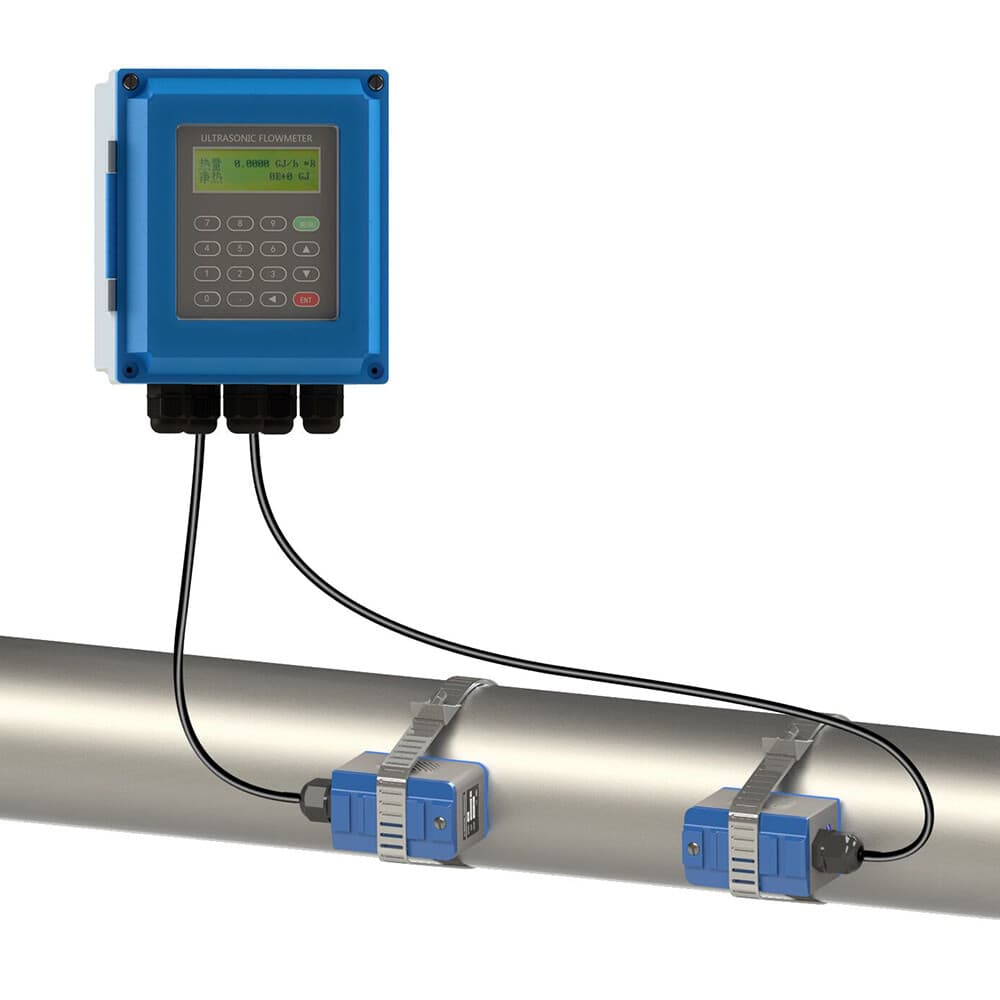

Main Unit Protection Level: IP67 Transducer Protection Level:IP68 Main Unit Working Environment: -20~60°C Transducer Working Environment: -30~90°C Humidity: ≤85%Rh Accuracy:≤1% Velocity Range: 0~±10m/s, Bi-Directional Measurement Suitable Pipe Diameter TS-2 Ultrasonic Transducers20-100mm TM-1 Ultrasonic Transducers50-700mm Temperature: -30~90°C Type Of Liquid:Single Liquid Can Transmit Ultrasound, Such As Water, Sea Water, Sewage, Oil, Alcohol, Etc. Pipe Material:Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Glass Steel, Etc. Liner Is Allowed. Signal Output:1 Way 4-20ma Output, 1 Way Oct Pulse Output, 1 Way Relay Output Signal Input: 3 Way 4-20ma Input, Achieve To Heat Measurement By Connecting Pt100 Platinum Resistor. Interface: Rs485, Support Modbus Data Storage: SD Card Regularly Store The Pre-Set Results(Without SG Card ) Power Supply: DC8~36V Or AC85~264V Multiple Installation Methods: Installation Methods:Wall Mounting And Two Ways Of Din-Rail Mounting Host Size: 15.6x15x9.4cm/6.14x5.9x3.7inch Weight: About 2kg
