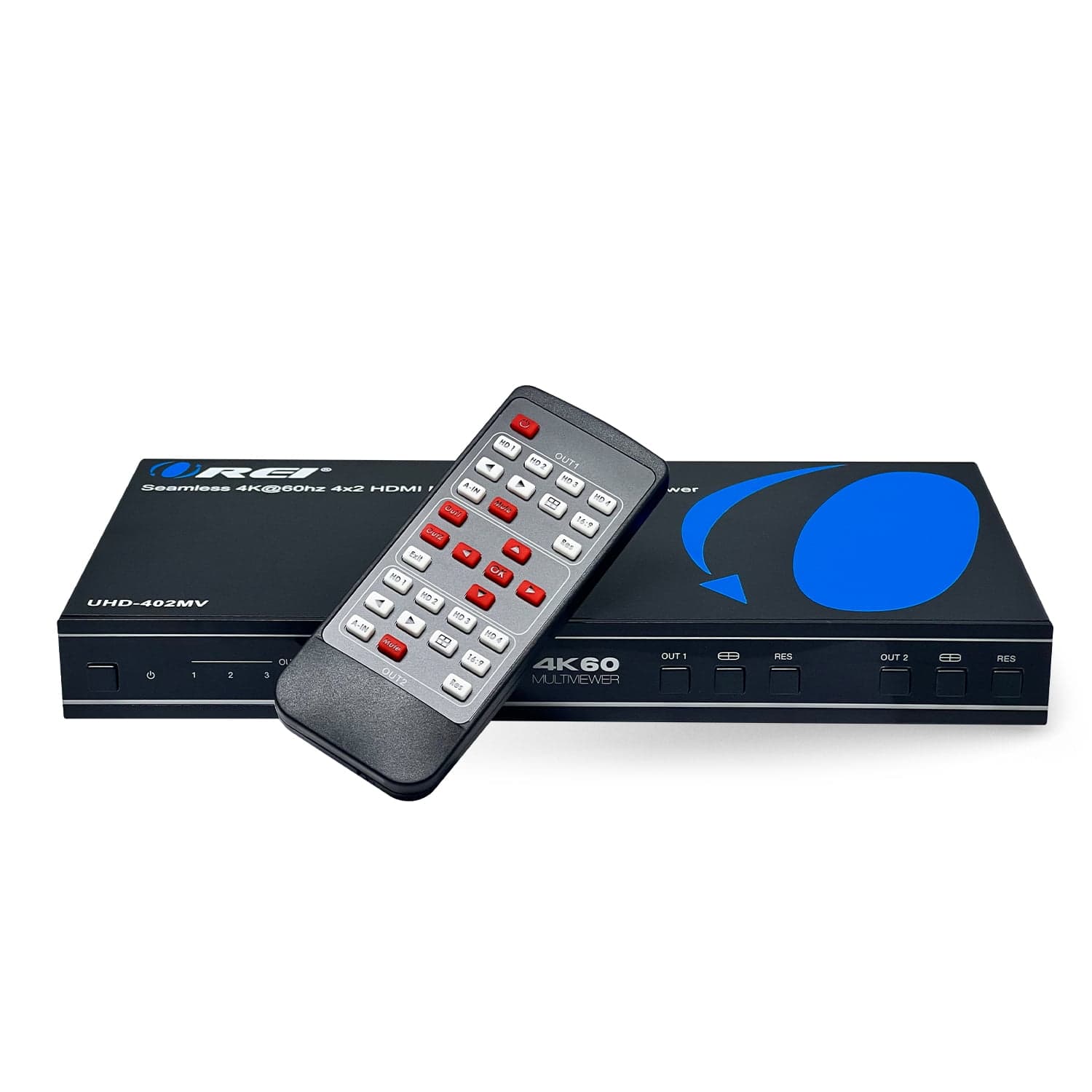

UHD-402MV 4x2 4K Quad Multi-Viewer Seamless Switch

The UHD-402MV is a 4x2 quad multi-viewer seamless switch that supports HDMI 2.0b and is HDCP 2.2 and HDCP 1. x compliant, delivering 18Gbps uncompressed bandwidth. It handles input and output resolution up to 4K2K@60 4:4:4 as well as 2K@60Hz. Supported HDMI audio formats include LPCM, DD+, DTS, Dolby TrueHD, and DTS HD-master pass-through. The unit allows seamless switching between input channels and can combine multiple images or use independent layouts to feed two UHD TVs. There are up to 8 display modes: Single, PIP, PBP(1), PBP(2), Triple(1), Triple(2), Quad(1), Quad(2). Audio can be de-embedded via analog and optical fiber audio ports, and each output port supports the scaler function. Control options include front panel buttons, an IR remote, OSD menu navigation, controller software, and RS-232 commands. The switch also supports independent audio selection, features advanced EDID management, and comes in a compact design for easy and flexible installation.
