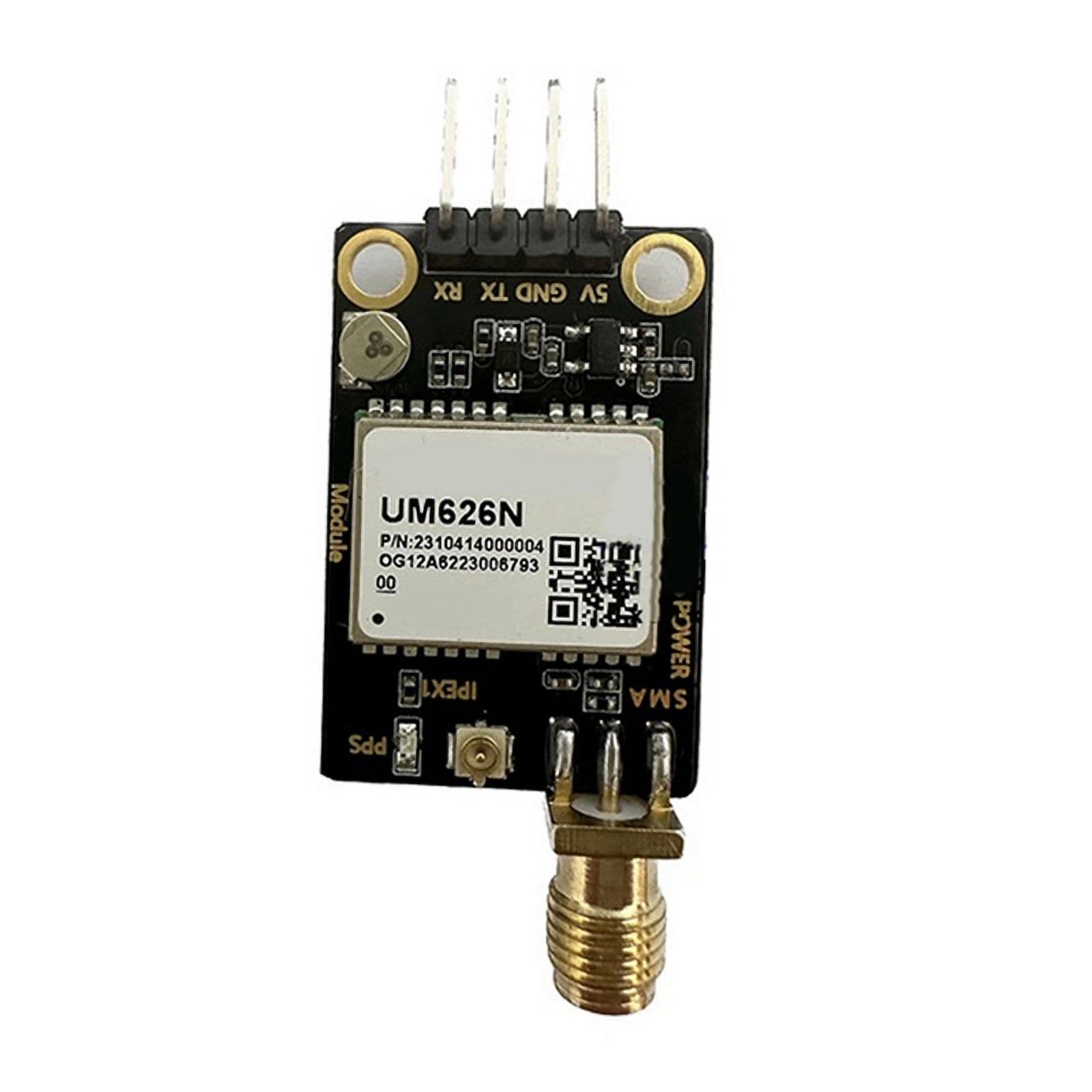

UM626N Development Board Dual-Frequency Multi-System Centimeter-Level RTK GNSS Module L1+L5 Base Station 10Hz Output

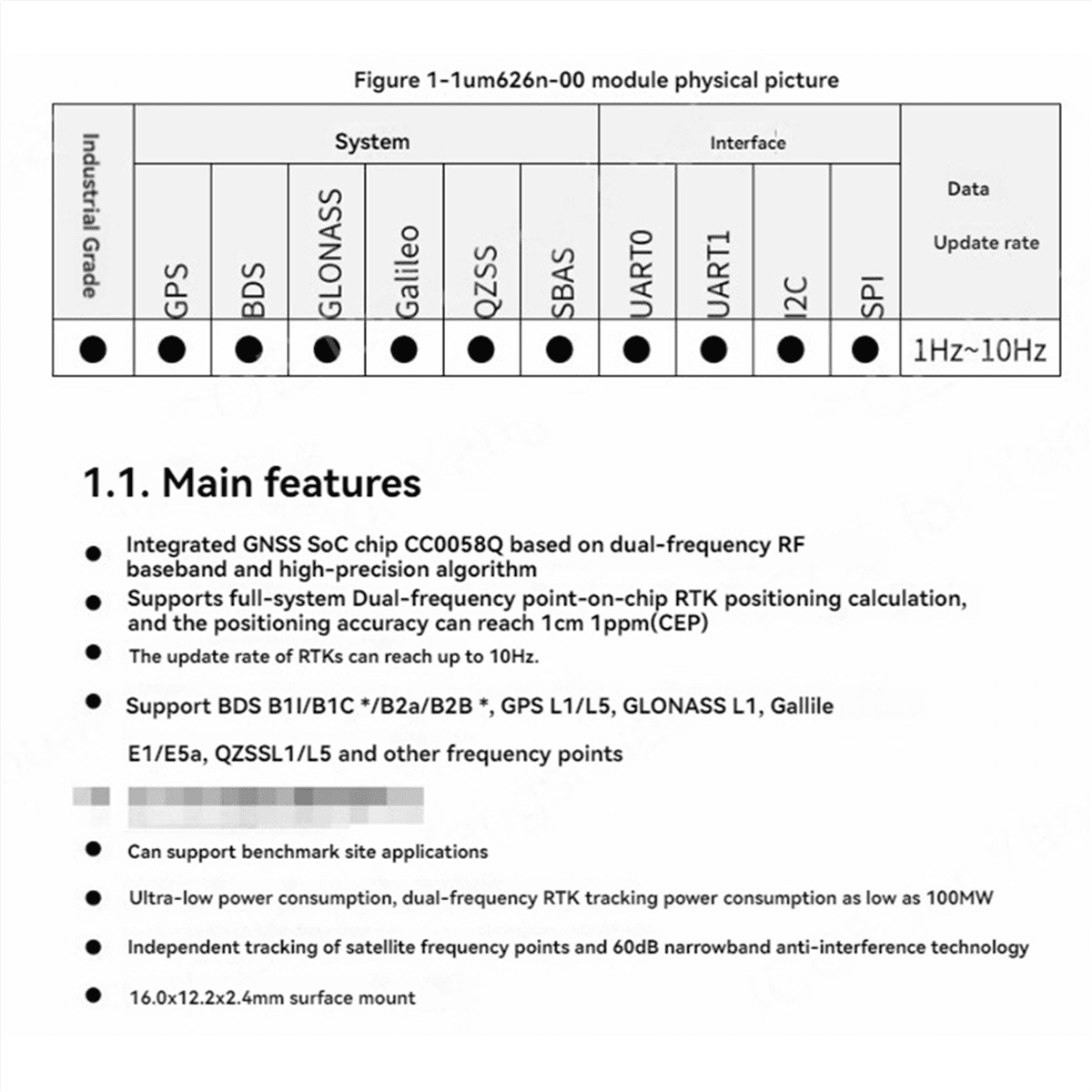

UM626N can be used as a main base station and mobile station to support the output of RTCM data and output of raw observations. Positioning accuracy. Supports full-system dual-frequency on-chip RTK positioning solution, positioning accuracy can reach 1cm+lppm () RTK update rate can reach up to 10Hz. The module supports full-system dual-frequency positioning or single-system positioning, and is suitable for high-precision navigation and positioning fields such as smart logistics, smart security, smart home, smart machinery, and smart airports. Ultra-low power consumption, dual-frequency RTK tracking power consumption as low as 100mW, tracking of each satellite frequency point and 60dB narrowband anti-interference technology. Based on dual-frequency baseband and high-precision algorithm integrated GNSS SoC chip CCO058Q.
