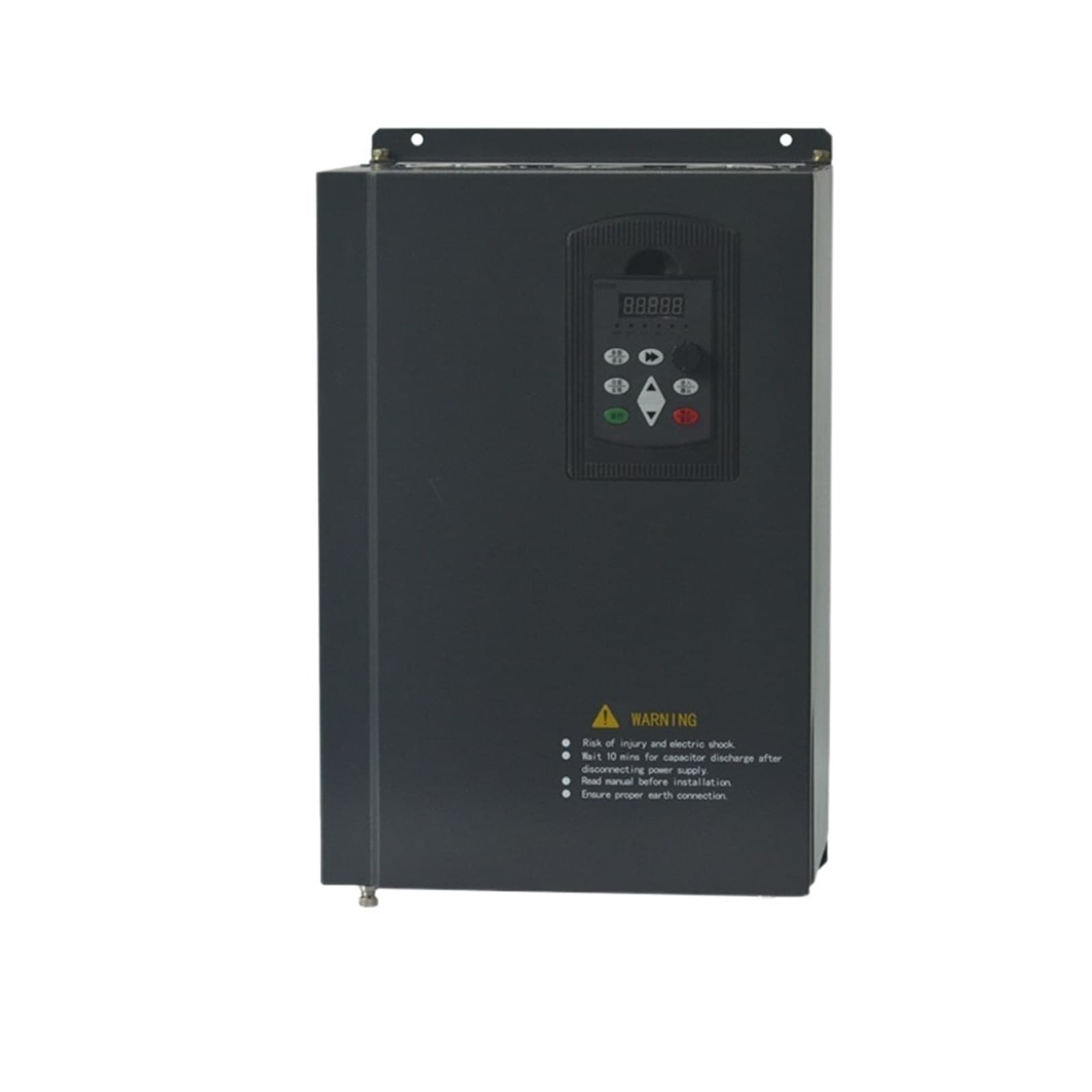

VFD 15kw 220V Vector Inverter (20HP) Variable Frequency Drive for Water Pump Motor

Compact 15KW 220 AC vector-control VFD designed to regulate AC motor speed and torque. Suitable for pump and general motor applications, this inverter offers open-loop vector (SVC) and V/F control with comprehensive protection and control functions. Key electrical specifications: Output Power:15kw/18.5KW/22KW Rated Frequency :50hz Rated Current:55A/70A/80A Output Frequency Range:0~650Hz Input Voltage Range:1phase220±15%/3phase220±15% Output Voltage Range:3 phase 0-220 Control way: Open loop vector control(SVC) V/F control Starting Torque: G type machine:0.5Hz/150%( SVC) Core functions and user controls: Basic Function: Speed tracking, PID control, auto speed compensation, AVR, Torque control, time control, multi-speed choice etc Digital Display/Status ldicator: Display frequency, speed, current, voltage, forward/reverse, fault etc Main function: Control and adjust the speed of the ac motor Manufacturing and advanced features: We employ experienced engineers and strict production quality controls. The frequency inverter includes numerous advanced features for flexible installation and application: 01 V/F control, vector controland output torque control; 02 Built-in RS-485 communication interface; 03 Compact size, easy to install; 04 With a speed potentiometer and support for an external panel; 05 Built-in synchronous control and proportional synchronization control; 06 16 speed control modest, Can run automatically; 07 Can choice multiple running commands or frequency channel; 08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock); 09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional; 106 digital opto-isolated inputs, 100 kinds of ways optional; 113 analog input, 1analog output channel; 12 Having textile pendulum frequency function, It can be widely applications for many kinds of textileequipment; 13 Built-in user timer /counter; 14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,pressure and tension. 15 At zero speed time, can be achieve output 0-100% of Adjustable torque, With zero speed brakefunction, instead foreign inverter application on freight elevator and crane.
