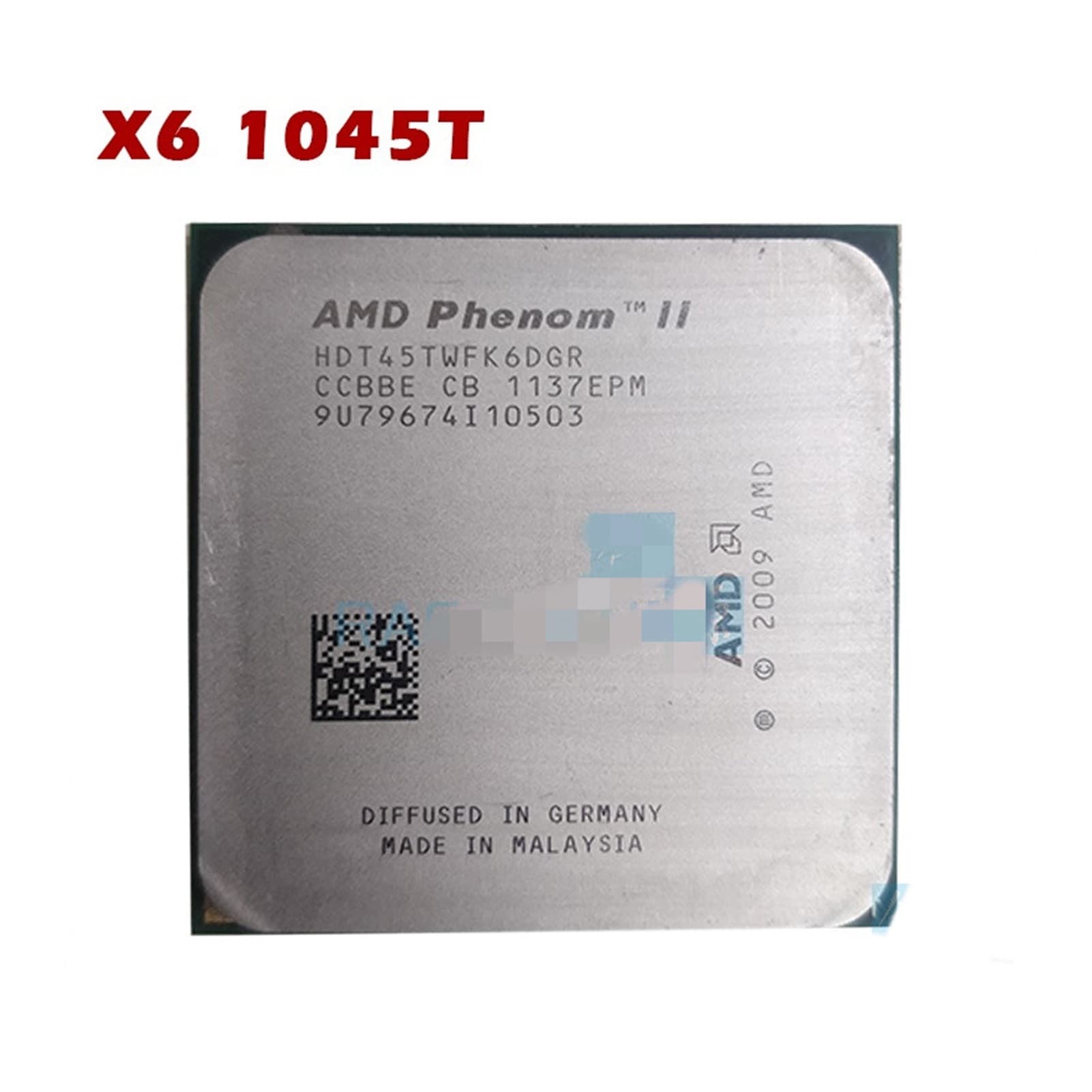

X6 1045T - HDT45TWFK6DGR 2.7GHz Six-Core CPU Socket AM3

Model: 1045T. CPU part number HDT45TWFK6DGR denotes the OEM/tray microprocessor; HDT45TWFGRBOX is the boxed version shipped with fan and heat sink. Step code: ACBBE CB CCBBE CB. Clock and bus: Base frequency 2700 MHz with a Max Turbo frequency of 3200 MHz (applies when 3 cores or less are active). Bus speed: 667 MHz. Clock multiplier: 13.5. HyperTransport: one 2000 MHz 16-bit HyperTransport link (4 GT/s). Package and physical: 938-pin Organic Micro PGA package for Socket AM3. Weight: 1.4 oz / 38.3 g. Architecture and manufacturing: Microarchitecture K10 on the Leo processor platform, Tuban stepping PH-E0, CPUID 100FA0. Fabricated using 0.045 micron silicon-on-insulator (SOI) technology. Die (mould) area: 346 mm2. Data width: 64 bits. Cores, threads and FPU: 6 CPU cores and 6 threads. Floating point unit integration present. Cache: L1 — 6 x 64 KB instruction cache (2-way set associative) and 6 x 64 KB data cache (2-way set associative). L2 — 6 x 512 KB 16-way set associative exclusive cache. L3 — shared 6 MB, 48-way set associative. Cache latencies: L1 = 3, L2 = 13, L3 = 47. Supported instruction sets and technologies: MMX, 3DNow!, SSE, SSE2, SSE3, SSE4a, AMD64 (64-bit), EVP (Enhanced Virus Protection), -V (Virtualization Technology). Power management and low-power features: Cool'n'Quiet 3.0, C1 and C1E power states. System power states supported: S0, S1, S3, S4 and S5. Integrated components: No integrated graphics. Memory controller and system memory: Integrated memory controller with 1 controller and 2 memory channels. Channel width: 72 bits. Supported memory types: DDR2-1066 and DDR3-1333. DIMMs per channel: up to 2. Maximum memory bandwidth: 21.3 GB/s. Other peripherals: HyperTransport 3 Technology. Electrical and thermal: Rated voltage range 1.075V - 1.375V. Turbo mode voltage range 1.225V - 1.425V. Minimum-state voltage range 0.975V - 1.175V. North Bridge voltage: 1.05V - 1.175V. Maximum operating temperature range: 55°C - 71°C. Thermal Design Power (TDP): 95 Watts. Multiprocessing: Uniprocessor configuration.
